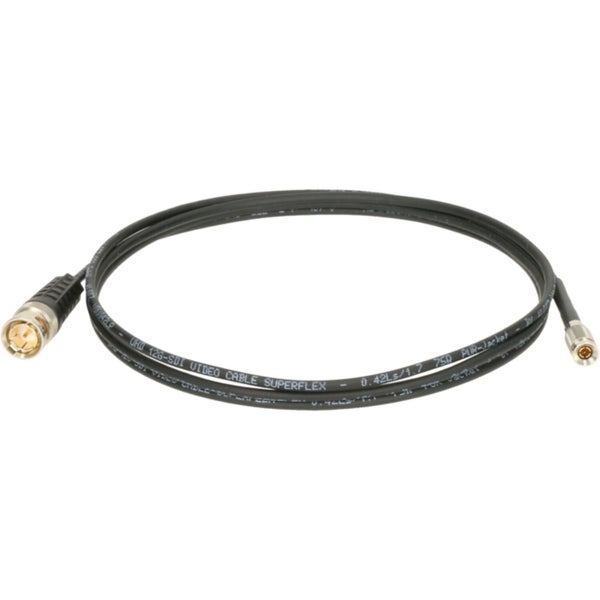

Klotz VU05L1DSD0-0100 Ultra thin flexible UHD 12G-SDI adapter cable 1 metre
Klotz
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 1.00 m
Weight and dimensions including packaging
- Weight
- 27.4 gr
- Dimensions
- 15,0 x 8,0 x 5,0 cm
Product specifications
- Cable type: UHD 12G-SDI adapter cable
- Connection 1: BNCslim plug (Damar & Hagen)
- Connection 2: DIN1.0/2.3 plug (Damar & Hagen)
- Length: 1 metre
- Colour of cable: black
- Outer jacket material: PUR (polyurethane)
- Operating temperature: -40°C to +70°C
- Cable diameter: 2.9 mm
- Inner conductor: Stranded, silver-plated copper, coated steel
- Shielding: twisted copper braid, 95% coverage
- Impedance: 75 Ω
- Capacitance: 56 pF/m
- Max. transmission for UHD 12G: 20 metres, UHD 6G: 30 metres, UHD 3G: 45 metres
- Return loss for 12G-SDI: ≥ 28 dB
- Connection options: Suitable for BNCpro and BNCslim series connectors
- Product code: VU05L1DSD0-0100
- Weight: 0.01 kg per metre
Choose your variant – Length: 1.00 m
Order before 10pm = in about 8 working days at home
Klotz VU05L1DSD0-0100 + Innox Snap 27
- Recommended price
- £48.73
- Now as combination for
- £48.00
- You save
- £0.73
Order before 10pm = in about 8 working days at home
Klotz VU05L1DSD0-0100 + Innox T-tie
- Recommended price
- £50.45
- Now as combination for
- £50.00
- You save
- £0.45
Order before 10pm = in about 8 working days at home
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 1.00 m
Weight and dimensions including packaging
- Weight
- 27.4 gr
- Dimensions
- 15,0 x 8,0 x 5,0 cm
Product specifications
- Cable type: UHD 12G-SDI adapter cable
- Connection 1: BNCslim plug (Damar & Hagen)
- Connection 2: DIN1.0/2.3 plug (Damar & Hagen)
- Length: 1 metre
- Colour of cable: black
- Outer jacket material: PUR (polyurethane)
- Operating temperature: -40°C to +70°C
- Cable diameter: 2.9 mm
- Inner conductor: Stranded, silver-plated copper, coated steel
- Shielding: twisted copper braid, 95% coverage
- Impedance: 75 Ω
- Capacitance: 56 pF/m
- Max. transmission for UHD 12G: 20 metres, UHD 6G: 30 metres, UHD 3G: 45 metres
- Return loss for 12G-SDI: ≥ 28 dB
- Connection options: Suitable for BNCpro and BNCslim series connectors
- Product code: VU05L1DSD0-0100
- Weight: 0.01 kg per metre
Product information
Product no: 9000-0143-8710
General
The Klotz VU05L1DSD0-0100 is a digital video adapter cable specifically designed for the transmission of UHD 12G-SDI signals, including 4K and 8K resolutions. It offers excellent performance even in extreme conditions from -40°C to +70°C. Thanks to its super flexible and robust PUR outer jacket, dense copper shielding and small diameter of only 2.9 mm, this cable is ideal for mobile use in, for example, the broadcast industry and live recording. The cable supports a maximum transmission length of 20 metres for 12G-SDI signals.
Service promise
Bax Music Warranty This product comes with a lifetime manufacturing defects warranty.
This product comes with a lifetime manufacturing defects warranty.
