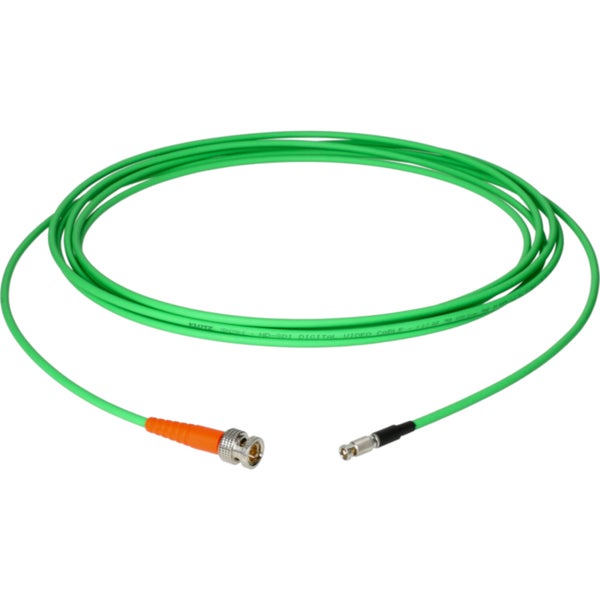

Klotz VU06H9DPM0-0700 UHD video adapter cable 7 metres
Product no: 9000-0143-9388 Bax Music Warranty: This product comes with a lifetime manufacturing defects warranty.

General

The Klotz VU06H9DPM0-0700 is a high-quality UHD adapter cable designed for the transmission of digital and analogue video signals, including HD, UHD, 4K and 8K formats. Featuring excellent electrical and mechanical properties, this cable uses Damar & Hagen BNCPro and BNCmicro connectors for reliable signal transmission. With double shielding (100% foil and 90% braid) and a flame-retardant FRNC jacket, this cable offers robust protection against electromagnetic interference. Suitable for both fixed and temporary installations, the cable guarantees high performance even over long transmission distances.

Specifications

Product features

Sustainable product	not specified
Length	7.00 m

Weight and dimensions including packaging

Weight (incl. packaging)	211.1 gr
Dimensions (incl. packaging)	30,0 x 20,0 x 8,0 cm

Product specifications

Cable type: digital video caller VD062SH - 0.6/2.8AF
Colour of cable: green
Length: 7 metres
Connection 1: BNCPro plug - Damar & Hagen
Connection 2: BNCmicro male - Damar & Hagen
Maximum transmission length:
- UHD 12 Gbps: 43 metres
- UHD 6G: 64 metres
- UHD 3G: 94 metres
- HD 3G: 47 metres
- HD 1.5 Gbps: 68 metres
Screen type: double shielding (100% foil + 90% braid)
Outer jacket: FRNC (flame retardant and halogen-free)
Temperature range: -30°C to +70°C
Minimum bending radius:
- Installed: 6x the diameter of the cable
- Mobile use: 12x the diameter of the cable
Material: lead-free, no harmful substances according to EU directive RoHS 2011/65/EU
Fire safety classification: IEC 60332-1-2 and IEC 60332-3-24
Sound attenuation: >90 dB
Impedance: 75 Ω ± 2%
Capacitance: 55 pF/m
Velocity of propagation: 81%
Nominal attenuation:
- 1 MHz: 1.2 dB
- 5 MHz: 2.7 dB
- 10 MHz: 3.8 dB
- 100 MHz: 10.8 dB
- 200 MHz: 15.0 dB
- 270 MHz: 17.5 dB
- 500 MHz: 24.2 dB
- 1000 MHz: 36.0 dB
- 1500 MHz: 44.9 dB
- 3000 MHz: 65.5 dB
- 6000 MHz: 95.9 dB
- 12000 MHz: 143.8 dB
EAN code: 4250046893371
Article number: VU06H9DPM0-0700
