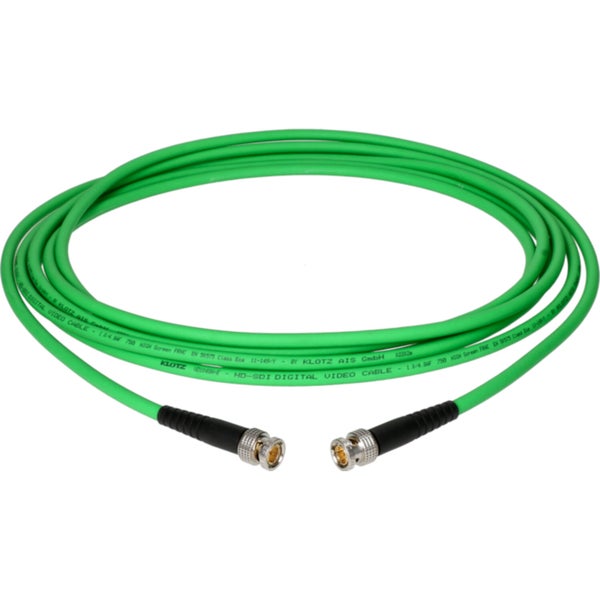

Klotz VU10H1DP0-7000 UHD video installation cable with BNCPro connectors 70 metres
Klotz
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 70.00 m
Weight and dimensions including packaging
- Weight
- 4,0 kg
- Dimensions
- 54,0 x 44,0 x 12,0 cm
Product specifications
- cable type: digital video cable - VD104SH - 1.0/4.8 AF
- outer jacket: FRNC
- maximum transmission length: UHD 12G 70 m; UHD 6G 105 m; UHD 3G 155 m; HD 3G 77 m; HD 1.5G 114 m
- connector 1: BNCPro plug / Damar & Hagen
- connector 2: BNCPro plug / Damar & Hagen
- cable colour: black
- length: 70 m
- operating temperature: -30°C / +70°C
- minimum bending radius: 40 mm
- inner conductor: solid copper wire, Ø 1.0 mm
- insulation: foam-skin PE, gas injected, Ø 4.8 mm
- shielding: AL/PET/AL double-layer foil + silver-plated copper braid (95% coverage)
- outer diameter: 6.9 mm
- impedance: 75 Ω ± 1%
- capacitance: 55 pF/m
- speed of propagation: 80
- DC resistance outside conductor: 6 Ω/km
- insulation resistance: > 95 dB
- standard SMPTE formats: 259, 292, 424, 425, 2081-1, 2082-1
- applications: SD-SDI, HD-SDI 1.5G, HD-SDI 3.0G, UHDTV
Choose your variant – Length: 70.00 m
Order before 10pm = in about 8 working days at home
Klotz VU10H1DP0-7000 + Innox Snap 27
- Recommended price
- £193.73
- Now as combination for
- £193.00
- You save
- £0.73
Order before 10pm = in about 8 working days at home
Klotz VU10H1DP0-7000 + Innox T-tie
- Recommended price
- £195.45
- Now as combination for
- £195.00
- You save
- £0.45
Order before 10pm = in about 8 working days at home
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 70.00 m
Weight and dimensions including packaging
- Weight
- 4,0 kg
- Dimensions
- 54,0 x 44,0 x 12,0 cm
Product specifications
- cable type: digital video cable - VD104SH - 1.0/4.8 AF
- outer jacket: FRNC
- maximum transmission length: UHD 12G 70 m; UHD 6G 105 m; UHD 3G 155 m; HD 3G 77 m; HD 1.5G 114 m
- connector 1: BNCPro plug / Damar & Hagen
- connector 2: BNCPro plug / Damar & Hagen
- cable colour: black
- length: 70 m
- operating temperature: -30°C / +70°C
- minimum bending radius: 40 mm
- inner conductor: solid copper wire, Ø 1.0 mm
- insulation: foam-skin PE, gas injected, Ø 4.8 mm
- shielding: AL/PET/AL double-layer foil + silver-plated copper braid (95% coverage)
- outer diameter: 6.9 mm
- impedance: 75 Ω ± 1%
- capacitance: 55 pF/m
- speed of propagation: 80
- DC resistance outside conductor: 6 Ω/km
- insulation resistance: > 95 dB
- standard SMPTE formats: 259, 292, 424, 425, 2081-1, 2082-1
- applications: SD-SDI, HD-SDI 1.5G, HD-SDI 3.0G, UHDTV
Product information
Product no: 9000-0144-3453
General
The Klotz VU10H1DP0-7000 is a high-quality digital video cable designed for use in UHD, 4K, and 12G-SDI applications. With a length of 70 metres, this cable offers reliable signal transmission over long distances. The cable features double shielding (100% foil + 95% braided copper) for maximum protection against interference. It is ideal for both fixed and temporary installations, offering perfect performance even in critical situations. Damar & Hagen's BNCPro connectors ensure a stable connection and optimum signal integrity, even at high resolutions such as 12G-SDI.
Service promise
Bax Music Warranty This product comes with a lifetime manufacturing defects warranty.
This product comes with a lifetime manufacturing defects warranty.
