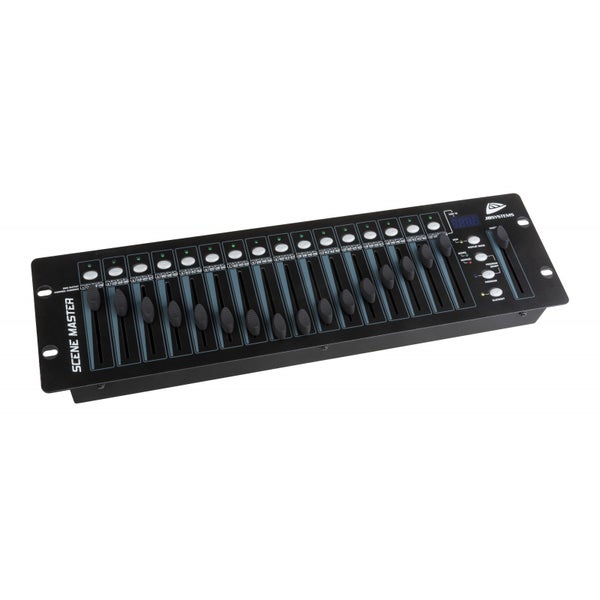

JB systems SCM-1 Scenemaster
JB systems
Discontinued
This product can no longer be ordered
Specifications
Product features
- 19 inches
- Yes
- Number of DMX channels
- 16
- Sustainable product
- Not specified
- Joystick
- No
Weight and dimensions including packaging
- Weight
- 1,4 kg
- Dimensions
- 65,0 x 27,0 x 26,0 cm
Product specifications
- versatile controller in a compact housing
- clear layout makes it easy to operate
- space for 16 scenes with 16 channels
- can also be used as a fader table for lighting (dimming)
- extendable by combining multiple controllers (up to 4 controllers/64 channels)
- MIDI interface inputs and outputs
- fit for controlling lighting software (if it supports MIDI)
- buttons above every channel, usable as flash in dimmer mode or switching scenes on/off in scene mode
- dimmer mode: 16 dimming channels (extendable to 64 channels)
- storage of settings when switching off, controller will start precisely like you turned it off
- blackout function
- DMX out: 3-pin XLR
- power supply: DC 9V
- 4-digit display shows DMX values and MIDI values
- dimensions: 483 x 85 x 133 mm (WxDxH)
- weight: 3.5 kg
No alternatives found
Specifications
Product features
- 19 inches
- Yes
- Number of DMX channels
- 16
- Sustainable product
- Not specified
- Joystick
- No
Weight and dimensions including packaging
- Weight
- 1,4 kg
- Dimensions
- 65,0 x 27,0 x 26,0 cm
Product specifications
- versatile controller in a compact housing
- clear layout makes it easy to operate
- space for 16 scenes with 16 channels
- can also be used as a fader table for lighting (dimming)
- extendable by combining multiple controllers (up to 4 controllers/64 channels)
- MIDI interface inputs and outputs
- fit for controlling lighting software (if it supports MIDI)
- buttons above every channel, usable as flash in dimmer mode or switching scenes on/off in scene mode
- dimmer mode: 16 dimming channels (extendable to 64 channels)
- storage of settings when switching off, controller will start precisely like you turned it off
- blackout function
- DMX out: 3-pin XLR
- power supply: DC 9V
- 4-digit display shows DMX values and MIDI values
- dimensions: 483 x 85 x 133 mm (WxDxH)
- weight: 3.5 kg
Product information
Product no: W-02983
General
The Scenemaster is designed in accordance with a new concept – in stand-alone mode, it operates a small group of lighting unit with up to sixteen channels, that can optionally be extended to 64 channels when using multiple controllers. Furthermore, sixteen scenes can be stored, with up to sixteen channels. This way, certain lighting positions can be stored and recalled when you want to alter the atmosphere in the room.
MIDI functionality for the SCM-1
This controller features MIDI functionality, which means that it can receive and send out MIDI, so that one or more of these controllers can operate your software. You could even use it for studio applications where you need a fader table.
Service promise
Bax Music Warranty This product comes with a 3-year warranty.
This product comes with a 3-year warranty.
