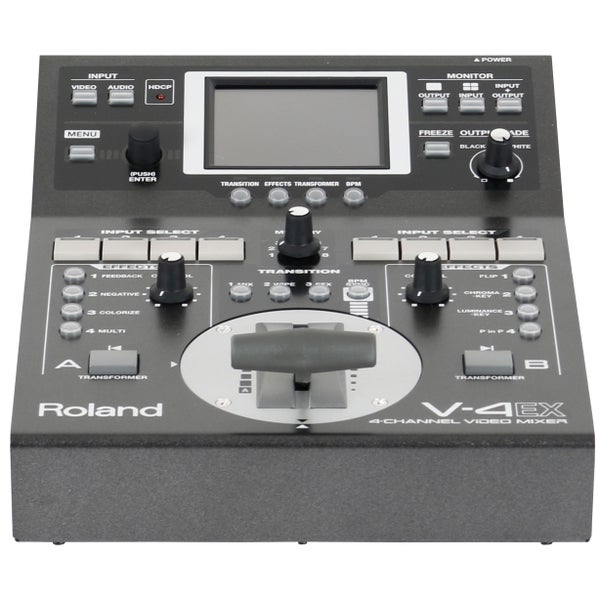

Roland V-4EX video mixer

Online stock status:
In stock
£1,299.00 (incl. 20% VAT)
Still 3 in stock
Add to my wishlist
Roland V-4EX video mixer Product no.: 9000-0005-2786 Warranty period: This product comes with a 3-year warranty.


The Roland V-4EX is a state-of-the-art video mixer that expands on the user-friendliness and quality of the V-4. The V-4EX is equipped with a large, touch-screen colour display and no fewer than four HDMI inputs for interference-proof, crystal-clear images. A progressive mix engine ensures that your images are razor-sharp at all times, also during transition effects. If you want to create seamlessly edited video and audio at events or for various studio applications, the V-4EX is exactly what you need.

Roland V-4EX: advanced simplicity
The V-4EX distinguishes itself by the simplicity of its operation. The number of controls is limited and you'll quickly familiarise yourself with the interface. The large colour touch screen allows for quick control by means of sub menus, so transitions and effects are quickly and easily added. As such, the V-4EX is great for live mixing, providing professional, subtle and smooth transitions and effects for your visuals. The large T-bar controller functions as a stable video fader that creates smooth, stutter-free transitions between your images. It is also possible to apply a fade-to-white or fade-to-black effect, by means of the Output Fade knob.

Transitions and effects
Regardless of the type of video input, the V-4EX offers you more than 250 different transition effects. From simple fades to artistic, creative transitions: with a few pushes of a button they are all within range. The V-4EX also puts a number of high-grade effects at your disposal. Think for instance of Picture-in-Picture or Chroma Key. This compact video mixer enables you to get grand visual results. Video signals can be connected via BNC, RGB/component, S-Video and HDMI. A MIDI input and output allow you to connect the V-4EX to supporting (Roland) equipment, giving you additional control over the mixer and the option to synchronise. The Roland V-4EX is a user-friendly video mixer that enables you to create TV-grade visuals.


Product features

Power adapter ungrounded flat Europlug

Weight and dimensions including packaging

  • Weight (incl. packaging) 2.6 kg
  • Dimensions (incl. packaging) 29.6 x 22.5 x 10.5 cm

Product specifications

  • Roland V-4EX
  • 4-channel video mixer
  • 10 inputs, 3 outputs
  • independent, 2-channel TBC/frame synchroniser
  • independent, 2-channel digital effects
  • professional-grade T-bar video fader
  • LCD colour display, 320 x 240, touch screen
  • simple, ergonomic controls
  • beat synchronisation between audio and video with MIDI equipment
  • preview function and on-screen menu
  • easy User Memory function
  • video format: NTSC or PAL
  • video sampling rate: 13.5 MHz; 4:2:2 (Y:B-Y:R-Y); 8-bit; frame synchroniser x 2
  • transition effects: Mix, Cut, Wipe (259 in total)
  • video effects: Strobe, Relief, Still, Mirror, Multi, Shake
  • composition effects: Picture-in-Picture, Chroma Key, Luminance Key, Strobe, Negative, Colorize, Feedback, Emboss, Multi, Mirror, etc. (148 types in total)
  • other effects: Output Fade, Freeze
  • audio input: RCA L/R or HDMI (48 kHz/24-bit)
  • video input HDMI: 4x, 480/59.94p (NTSC)/576/50p (PAL)
  • video input S-Video: 1x, 4-pin mini DIN
  • video input RGB/component: 1x 15-pin
  • video input composite: 4x BNC (inputs 1 - 4)
  • video output HDMI: 1x
  • video output RGB/component: 1x 15-pin
  • video output composite: 1x BNC
  • HDMI resolutions: 640 x 480 - 1920 x 1200
  • USB output for streaming applications (720x480 (NTSC) / 720x576 (PAL), 48 kHz / 16-bit)
  • video output upconversion up to 1080p
  • preview output HDMI: 1x (48 kHz/24-bit audio)
  • HDCP support
  • MIDI control (in/out), V-LINK, BPM Sync, Tap
  • included accessories: AC adapter, power cable, 2x RCA/BNC adapter plug, manual
  • current: 2,000 mA
  • powered via: designated AC adapter (9 Volt)
  • dimensions: 29.6 x 22.5 x 10.5 cm
  • weight: 2.6 kg
