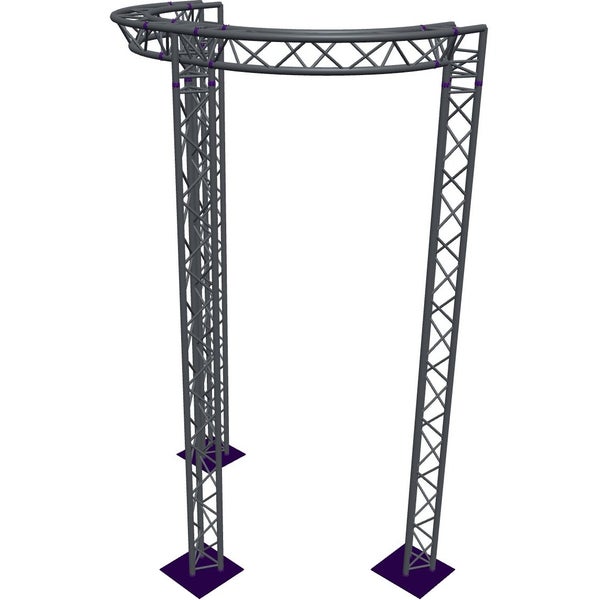

Altura FA33-CIRH-Ø2-H4.5-C21-AD-S ½-circle triangular truss, Ø2×4.5m, silver, 90°, apex down
Altura
Specifications
Product features
- Sustainable product
- Not specified
- Truss set shape
- Half circle
- Truss set installation
- Standing
- Truss shape
- Triangle
- Hardware finish
- Silver-metallic
- Truss set diameter (m)
- 2
- Truss set height (m)
- 4.5
- Truss set short side (m)
- 1.8
- Truss set long side (m)
- 3
- Truss set corner joint
- 90 degrees
- Apex Truss set
- Apex down
- Number of truss set connections
- 10
- Truss series
- Altura FA33
- Truss set parts
- 1/4 circle segment (2x), corner piece (2x), straight section 4 metres (3x), T-piece (1x), connection kit (10x), base plate/wall plate (3x)
- Truss set weight (kg)
- 100
Product features
- Sustainable product
- Not specified
- Truss length
- 0.50 - 0.99 metres
- Truss series
- Altura FA33
- Truss section type
- Circle / circle part
- Truss shape
- Triangle
Weight and dimensions including packaging
- Weight
- 6,0 kg
- Dimensions
- 146,0 x 37,0 x 29,0 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years of experience
- production by qualified personnel and advanced welding robots
- suitable for apex up or apex down use
- manufactured from high-quality EN AW-6082 T6 aluminium alloy
- fitted with 50mm main tubes with 2mm wall thickness
- segment of a 2-metre circle (1/4 section)
- supplied without couplers, pins and clips
- length: 140 cm
- width: 55 cm
- height: 30 cm
- weight: 8.375 kg
Product features
- Sustainable product
- Not specified
- Truss accessory type
- Mounting
Weight and dimensions including packaging
- Weight
- 1,1 kg
- Dimensions
- 32,0 x 32,0 x 5,0 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years' experience
- fitted with male conical couplings
- suitable for FA33 triangular trusses
- manufactured from high-quality aluminium
- delivered in carton box
- length: 47 cm
- width: 33 cm
- height: 32 cm
- weight: 1.461 kg
Product features
- Sustainable product
- Not specified
- Truss length
- 0.50 - 0.99 metres
- Truss series
- Altura FA33
- Truss section type
- T part
- Truss shape
- Triangle
Weight and dimensions including packaging
- Weight
- 6,0 kg
- Dimensions
- 51,0 x 51,0 x 31,4 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years of experience
- production by qualified personnel and advanced welding robots
- manufactured from high-quality EN AW-6082 T6 aluminium alloy
- fitted with 50 mm main tubes with 2 mm wall thickness
- compatible with Eurotruss, Global Truss, Interal Intertruss, Hof, Microtruss, Milos U, Pro-truss Pro and Duratruss
- supplied without couplers, pins and clips
- length: 50 cm
- width: 50 cm
- height: 30 cm
- weight: 7,408 kg
Product features
- Sustainable product
- Not specified
- Truss accessory type
- Couplers
Weight and dimensions including packaging
- Weight
- 710 gr
- Dimensions
- 23,0 x 11,0 x 3,5 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years' experience
- complete set consisting of:
- 3x conical coupling
- 6x locking pin
- 6x safety clip
- specifically for FA33 triangular truss
- made of high quality materials
- delivered in carton box
- length of packaging: 40 cm
- packaging width: 20 cm
- height of packaging: 20 cm
- weight: 0,72 kg per set
Product features
- Sustainable product
- Not specified
- Truss length
- Not applicable
- Truss series
- Altura FA33
- Truss section type
- Corner part
- Truss shape
- Triangle
Weight and dimensions including packaging
- Weight
- 4,7 kg
- Dimensions
- 51,5 x 51,0 x 31,2 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years of experience
- production by qualified personnel and advanced welding robots
- manufactured from high-quality EN AW-6082 T6 aluminium alloy
- fitted with 50 mm main tubes with 2 mm wall thickness
- 90 degree angle (AI version)
- compatible with Eurotruss, Global Truss, Interal Intertruss, Hof, Microtruss, Milos U, Pro-truss Pro and Duratruss
- supplied without couplers, pins and clips
- length: 50 cm
- width: 50 cm
- height: 30 cm
- weight: 5,516 kg
Choose your variant – Truss set parts: 1/4 circle segment (2x), corner piece (2x), straight section 4 metres (3x), T-piece (1x), connection kit (10x), base plate/wall plate (3x)
Specifications
Product features
- Sustainable product
- Not specified
- Truss set shape
- Half circle
- Truss set installation
- Standing
- Truss shape
- Triangle
- Hardware finish
- Silver-metallic
- Truss set diameter (m)
- 2
- Truss set height (m)
- 4.5
- Truss set short side (m)
- 1.8
- Truss set long side (m)
- 3
- Truss set corner joint
- 90 degrees
- Apex Truss set
- Apex down
- Number of truss set connections
- 10
- Truss series
- Altura FA33
- Truss set parts
- 1/4 circle segment (2x), corner piece (2x), straight section 4 metres (3x), T-piece (1x), connection kit (10x), base plate/wall plate (3x)
- Truss set weight (kg)
- 100
Product features
- Sustainable product
- Not specified
- Truss length
- 0.50 - 0.99 metres
- Truss series
- Altura FA33
- Truss section type
- Circle / circle part
- Truss shape
- Triangle
Weight and dimensions including packaging
- Weight
- 6,0 kg
- Dimensions
- 146,0 x 37,0 x 29,0 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years of experience
- production by qualified personnel and advanced welding robots
- suitable for apex up or apex down use
- manufactured from high-quality EN AW-6082 T6 aluminium alloy
- fitted with 50mm main tubes with 2mm wall thickness
- segment of a 2-metre circle (1/4 section)
- supplied without couplers, pins and clips
- length: 140 cm
- width: 55 cm
- height: 30 cm
- weight: 8.375 kg
Product features
- Sustainable product
- Not specified
- Truss accessory type
- Mounting
Weight and dimensions including packaging
- Weight
- 1,1 kg
- Dimensions
- 32,0 x 32,0 x 5,0 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years' experience
- fitted with male conical couplings
- suitable for FA33 triangular trusses
- manufactured from high-quality aluminium
- delivered in carton box
- length: 47 cm
- width: 33 cm
- height: 32 cm
- weight: 1.461 kg
Product features
- Sustainable product
- Not specified
- Truss length
- 0.50 - 0.99 metres
- Truss series
- Altura FA33
- Truss section type
- T part
- Truss shape
- Triangle
Weight and dimensions including packaging
- Weight
- 6,0 kg
- Dimensions
- 51,0 x 51,0 x 31,4 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years of experience
- production by qualified personnel and advanced welding robots
- manufactured from high-quality EN AW-6082 T6 aluminium alloy
- fitted with 50 mm main tubes with 2 mm wall thickness
- compatible with Eurotruss, Global Truss, Interal Intertruss, Hof, Microtruss, Milos U, Pro-truss Pro and Duratruss
- supplied without couplers, pins and clips
- length: 50 cm
- width: 50 cm
- height: 30 cm
- weight: 7,408 kg
Product features
- Sustainable product
- Not specified
- Truss accessory type
- Couplers
Weight and dimensions including packaging
- Weight
- 710 gr
- Dimensions
- 23,0 x 11,0 x 3,5 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years' experience
- complete set consisting of:
- 3x conical coupling
- 6x locking pin
- 6x safety clip
- specifically for FA33 triangular truss
- made of high quality materials
- delivered in carton box
- length of packaging: 40 cm
- packaging width: 20 cm
- height of packaging: 20 cm
- weight: 0,72 kg per set
Product features
- Sustainable product
- Not specified
- Truss length
- Not applicable
- Truss series
- Altura FA33
- Truss section type
- Corner part
- Truss shape
- Triangle
Weight and dimensions including packaging
- Weight
- 4,7 kg
- Dimensions
- 51,5 x 51,0 x 31,2 cm
Product specifications
- manufactured in Europe according to strict requirements
- manufactured by a manufacturer with more than 20 years of experience
- production by qualified personnel and advanced welding robots
- manufactured from high-quality EN AW-6082 T6 aluminium alloy
- fitted with 50 mm main tubes with 2 mm wall thickness
- 90 degree angle (AI version)
- compatible with Eurotruss, Global Truss, Interal Intertruss, Hof, Microtruss, Milos U, Pro-truss Pro and Duratruss
- supplied without couplers, pins and clips
- length: 50 cm
- width: 50 cm
- height: 30 cm
- weight: 5,516 kg
Product information
Product no: 9000-0160-1291
General
With an Altura truss set, you’ve got everything you need in one go. It’s a ready-to-use configuration of Altura truss sections, including all couplers, pins and locking clips. So you don’t need to look for anything else. The specifications detail the size of the set, which components it comprises and how many of each are included. Please note: tools for assembly and equipment for hoisting the truss sections are not included in the set. You’ll need to arrange these yourself. Want to know more about the brand, the certification and the different truss types? Discover Altura.
» View all Altura truss sets
» Would you rather put together your own truss system? Then take a look at the individual components in the Altura category.
Service promise
Altura FA33-CIRH-Ø2-H4.5-C21-AD-S ½-circle triangular truss, Ø2×4.5m, silver, 90°, apex down This product comes with a 3-year warranty.
This product comes with a 3-year warranty.
Altura FA33-CS1-2 circle segment for 2m circle, segment 1/4 This product comes with a 3-year warranty.
This product comes with a 3-year warranty.
Altura FA33-WP Base / wall plate for FA33 triangular truss. This product comes with a 3-year warranty.
This product comes with a 3-year warranty.
Altura FA33-T35 triangular truss corner piece This product comes with a 3-year warranty.
This product comes with a 3-year warranty.
Altura FA33-CONSET This product comes with a 3-year warranty.
This product comes with a 3-year warranty.
Altura FA33-C25 triangle truss corner piece 90 degrees AI This product comes with a 3-year warranty.
This product comes with a 3-year warranty.
