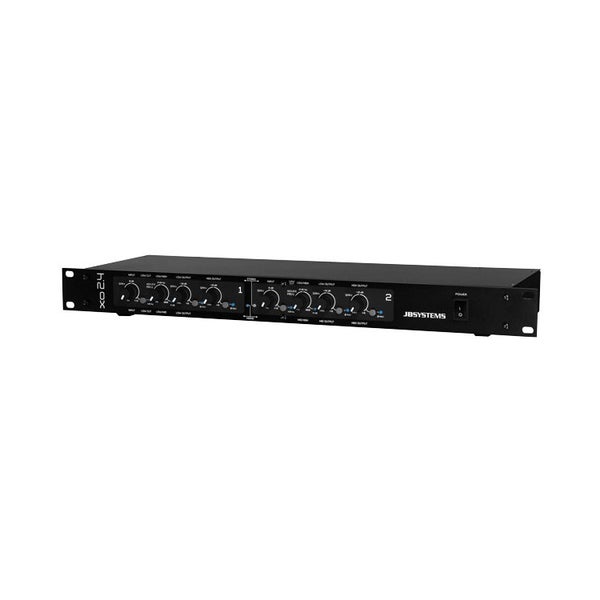

JB systems XO 2.4 crossover 2-way stereo or 3-way mono
Product no: W-01077 Bax Music Warranty: This product comes with a 3-year warranty.

General

A crossover lets you make the most of your sound set - as a crossover controls the frequency distribution between low and mid/high, you can ensure a balanced sound image and a powerful sound.

This crossover features the renowned 24dB/octave Linkwitz-Riley filters. Furthermore, it is fitted with a subsonic filter at 40 Hz, which removes unwanted, power-eating frequencies. This way, more power is available for the other frequencies, as everything below 40 Hz is made inaudible.

Thanks to its slight height of only 1 U, the XO can easily be installed into a 19-inch rack - you will always be able to incorporate it into an amp rack, usingonly very little space to upgrade your audio and make optimal use of power!

Specifications

Product features

Input	XLR
Built-in compressor	no
Built-in limiter	no
Mono crossover	three-way
Stereo crossover	two-way
Subwoofer output	no
Output connector	XLR (3-pin)

Weight and dimensions including packaging

Weight (incl. packaging)	2,0 kg
Dimensions (incl. packaging)	52,0 x 24,0 x 6,5 cm

Product specifications

two-way or three-way mono crossover
full frequency selection between 45 and 9,600 Hz
24dB/octave Linkwitz-Riley filters
all inputs and outputs are balanced (or unbalanced) with XLR connectors
subsonic filter (40 Hz) with on/off switch
gain control on all inputs and outputs
phase switch
stylish black design with blue and white LEDs
mains voltage: AC 230 V, 50 Hz
fuse: 20mm glass fuse 250V 500mA slow
frequency range: 20 - 20,000 Hz +0/-0.5 dB
total harmonic distortion (THD) and noise: 90 dB at 1 kHz
line inputs: 1 V at 10 kOhms
outputs: 1 V at 600 ohms
crossover frequencies (normal mode): 45 - 960 Hz
crossover frequencies (x10 mode): 45 - 9,600 Hz
dimensions: 483 x 44 x 135 mm
weight: 2 kg

A review can no longer be written about this item

Reviews from other countries

Translate all reviews into English View original reviews

philippe C. February 27, 2020

Wrote the following about JB systems XO 2.4 crossover 2-way stereo or 3-way mono

son propre, simple ,fait son travail ,juste le odb pas mis sur les gain canal low et high -10 db a +6db et marchandise reçu remballer donc surement un retour j attend des news du service client a se sujet acheter 4 db tehcnologoe opera 15 pas eu la blague maisd la suis pas content a se sujet donc je met 4 etoile pour le xo2.4 et 1 etoile pour appareil recu pour un neuf surement un retour j attend des news du service client pour cela

Berten p. September 19, 2016

Wrote the following about JB systems XO 2.4 crossover 2-way stereo or 3-way mono

zeer compacte crssover en zeker voor de prijs is hij de moeite waard om aan te kopen weegt niet veel en is mooi en sterk afgewerkt

Thomas H. March 29, 2015

Wrote the following about JB systems XO 2.4 crossover 2-way stereo or 3-way mono

Deze crossover is compact en makkelijk te bedienen. Hij heeft een goede bouwkwaliteit en afwerking. Ik heb eens getest met een spectrummeter en hij is nauwkeurig, zeker voor de prijsklasse.
Pluspunten:
-afwerking
-nauwkeurigheid
-compact
-lekkere blauwe lampjes (zorgen ervoor dat je rack er moderner uitziet)
-gebalanceerde in- en uitgangen
Minpunten: nog steeds niet gevonden
