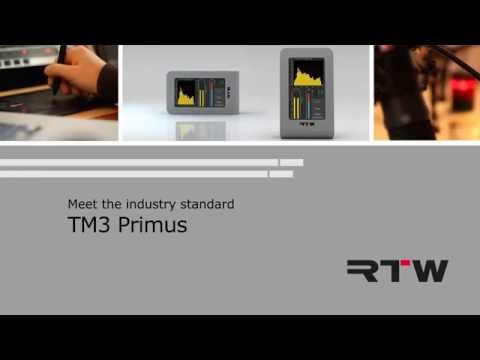

RTW TM3 Primus Loudness Meter
RTW
Discontinued
This product can no longer be ordered
Specifications
Product features
- Sustainable product
- Not specified
Weight and dimensions including packaging
- Weight
- 1,0 kg
- Dimensions
- 20,0 x 10,0 x 10,0 cm
Product specifications
- Compact, multi-functional metering device
- Designed for audio signals (analogue, digital, USB)
- Designed for professionals
- Model: table-top
- Touch-screen: 4.3 inch (272 x 480 pixels), colour
- Included USB cable for power and USB-audio
- Diverse metering methods, each with their own optimised interface displayed on the screen
- PPM/TruePeak meter with analogue and digital graduation
- Moving coil with PPM, VU and BBC-modes
- Summing loudness graphics: M, S, or I
- MagicLRA mode
- Loudness chart (changes over time)
- 2-channel Audio Vectorscope
- Stereo correlator (phase meter)
- RTA
- Mix down from USB-surround, output via S/PDIF Out connector
Loudness meter conform:
- EBU R128
- ITU-R BS.1770-3/1771-1
- ATSC A/85
- ARIB
- OP-59
- AGCOM
- CALM
Connectors:
- Analogue (2x RCA), stereo input
- Digital S/PDIF (2x RCA), input and output
- USB (USB-audio)
No alternatives found
Specifications
Product features
- Sustainable product
- Not specified
Weight and dimensions including packaging
- Weight
- 1,0 kg
- Dimensions
- 20,0 x 10,0 x 10,0 cm
Product specifications
- Compact, multi-functional metering device
- Designed for audio signals (analogue, digital, USB)
- Designed for professionals
- Model: table-top
- Touch-screen: 4.3 inch (272 x 480 pixels), colour
- Included USB cable for power and USB-audio
- Diverse metering methods, each with their own optimised interface displayed on the screen
- PPM/TruePeak meter with analogue and digital graduation
- Moving coil with PPM, VU and BBC-modes
- Summing loudness graphics: M, S, or I
- MagicLRA mode
- Loudness chart (changes over time)
- 2-channel Audio Vectorscope
- Stereo correlator (phase meter)
- RTA
- Mix down from USB-surround, output via S/PDIF Out connector
Loudness meter conform:
- EBU R128
- ITU-R BS.1770-3/1771-1
- ATSC A/85
- ARIB
- OP-59
- AGCOM
- CALM
Connectors:
- Analogue (2x RCA), stereo input
- Digital S/PDIF (2x RCA), input and output
- USB (USB-audio)
Product information
Product no: 9000-0015-7340
General
A loudness meter is a must for many high-grade mixing studios and venues. The RTW TM3 Primus is an excellently priced little piece of technology with a complete, simple designed and optimal operation via the colour display. The RTW TM3 Primus loudness meter is a professional solution, compatible with high-end standards: EBU R128, ITU-R BS.1770-3 / 1771-1, ATSC A / 85, ARIB, OP-59, AGCOM and CALM. M / S is also supported, giving you a solid insight into, for example, the mono-compatibility of your project. Analogue, digital and USB audio are all supported by this toolbox essential.
Features of the RTW TM3 Primus Loudness Meter
Since the Primus grabs both its power and audio signal via the MicroUSB port, this sleek little device can simply sit next to your keyboard. It can be set to register stereo and 5.1, and it can also mix down the surround signal and send it back out via the S / PDIF output. The Primus has a 4.3-inch colour touch screen to clearly control and scroll through what RTW calls 'Instruments'. The long list includes TruePeak / PPM, Moving Coil, Magic LRA, Vectorscope, RTA and Correlator. All of this will be familiar territory for experienced studio technicians, for whom the Primus has been specifically designed.
