RANE DJ Seventy DJ Mixer

no reviews yet

Discontinued, this product can no longer be ordered.

Alternative items

Pioneer DJ DJM-S7

In stock
Recommended price £1,635 £1,304

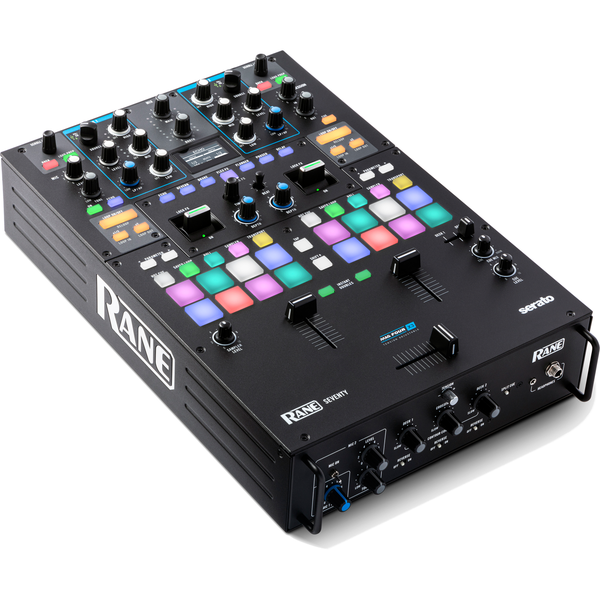

RANE DJ Seventy DJ Mixer
Product no: 9000-0059-3152 Bax Music Warranty: This product comes with a 3-year warranty.

General

While the RANE DJ Seventy is definitely built to win battles, this beefy two-channel mixer packs way more than just muscle since it comes fully trained and complete with its own special move: full Serato support. Battle-ready, Serato DJ ready, and all the classic RANE DJ DNA to please any turntablist; this mixer is not just innovative and packed with fresh features, but is the dependable, durable team-mate that will never let you down in the ring and above all, refuses to compromise.

The Seventy: MAG FOUR!

The heart of every battle-mixer is, of course, built of faders. Here, the audio-based circulation of the RANE DJ Seventy is driven by MAG FOUR faders. Using patented tech, these are the lightest feeling faders ever made, while the tension of the cross-fader (the most important weapon in your arsenal) can be adjusted to taste. Besides the faders, the Seventy comes with six 'radio-style' FX buttons to control the post fader 'Flex FX' as well as the software effects provided by Serato DJ. Sixteen Akai Professional performance pads are also a welcome addition, offering fast access to hot cue, loops, samples, roll, transport and Serato Pitch 'n Time.

Connectivity

Nothing is left to chance with the RANE DJ Seventy. Two DJs can use the mixer at the same time since it comes fitted with a double USB port and the set-up has been thoughtfully designed for seamless transition from DJ to DJ. Besides the standard set of inputs like the switchable phono/line, switchable line/microphone combi port (with echo), and balanced XLR outputs, the Seventy comes equipped with a battle-configured Session-input and Session-output.

Serato Scratch Bank Support

As of right now, Serato Scratch Bank is fully supported by the RANE DJ Seventy! To make sure everything runs as it should, you will need to make sure that your copy of Serato Pro DJ Pro has been updated to version 2.4.3, and the firmware of your mixer also needs to be upgraded to version 1.6. Then, Serato Scratch Bank grants you the power to load in up to 32 different samples or full tracks that can be triggered for scratching or mixing.

Specifications

Product features

Number of link channels 2
Audio over USB not specified
Booth output yes
Adjustable crossfader curve yes
Crossfader assignment no
Sustainable product not specified
Effects yes
EQ kill function no
EQ line channels 3-band
Fader start support no
DJ mixer size 10 inches
Colour black
Master channel 1 knob
Master channel 2 yes, based on master output 1
Microphone input yes
Outputs RCA, 6.3mm TRS (jack), XLR
Position of headphone connector front
Position of microphone connector back
Rackmount kit available no
Bluetooth output booth output
Type of headphone connector 3.5mm mini jack, 6.3mm jack
Type of microphone connector 6.3mm jack, XLR

Weight and dimensions including packaging

Weight (incl. packaging) 8,9 kg
Dimensions (incl. packaging) 54,5 x 45,0 x 24,5 cm

Product specifications

  • RANE DJ Seventy
  • DJ mixer
  • converters: AKM High Definition Audio; 24-bit PCM, 48 kHz
  • digital signal processing: 32-bit
  • dynamic range (A-weighted, unit profile):
    • ADC: 114dB
    • DAC: 114dB
    • CD-input to analogue output: 114dB
    • CD-input to USB export: 114dB
    • USB-input to analogue output: 114dB
  • outputs:
    • master output (XLR)
      • frequency response: 20Hz to 0.2kHz, + 0/-0.05dB)
      • max. output: 8Vrms
      • THD + N (at 1 kHz, 4Vrms): 0.002%
    • booth output: TRS jack
      • frequency response: 20Hz to 0.2kHz, + 0/-0.05dB)
      • max. output: 8Vrms
      • THD + N (at 1kHz, 4Vrms): 0.002%
    • session-output (RCA stereo pair)
      • frequency response: 20Hz to 0.2kHz, + 0/-0.05dB)
      • max. output: 4Vrms
      • THD + N (bij 1 kHz, 4Vrms): 0.002%
    • headphone outputs: jack and mini-jack
      • max. output voltage: 4V (unloaded)
      • THD + N (bij 1 kHz, 2Vrms): 0.003%
      • output power: 96mW (50 Ohm)
      • controls: on, off, volume
  • display 1.6-inch OLED (diagonal)
  • pads: (16) velocity-sensitive multi-coloured back-lit pads (8 per deck, every 10 modes)
  • faders: (3) MAG FOUR tension adjustable faders (2 channel / line faders, 1 crossfader)
  • connectors
    • (2) XLR outputs (master)
    • (2) TRS jack outputs (booth)
    • (4) RCA stereo input pairs (deck 1-2)
    • (2) XLR combi TRS jack inputs (mic 1-2)
    • (1) RCA stereo input pairs (session)
    • (1) RCA stereo output pairs (session)
    • (1) TRS jack output (headphones)
    • (1) TRS mini-jack output (headphones)
    • (1) TRS jack input (foot-switchable)
    • (2) USB Type-A ports (deck 1-2 USB-controllers)
    • (2) USB Type-B ports
  • power connection: IEC
  • voltage: 100 - 240V, 50/60Hz
  • power consumption: 30 Watts
  • dimensions: 285 x 445 x 105mm
  • weight: 5.6 kg
