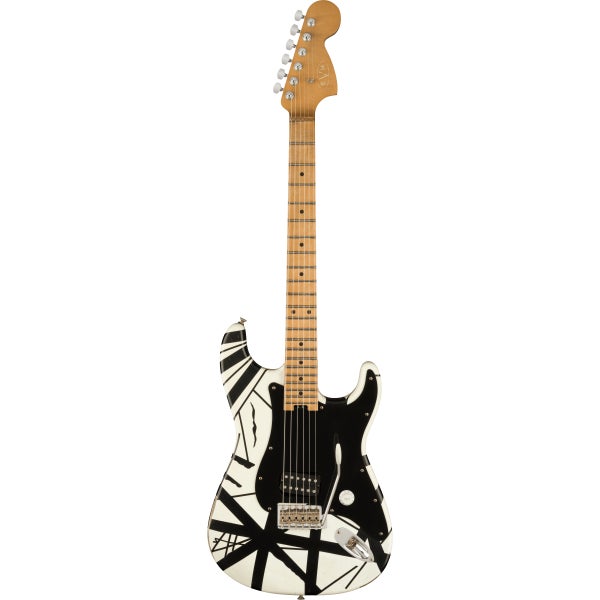

EVH Striped Series '78 Eruption Relic Electric Guitar

no reviews yet

Discontinued, this product can no longer be ordered.

No alternatives found
Not sure if the EVH Striped Series '78 Eruption Relic Electric Guitar is for you? Do a Choice Check. Start Choice Checker
EVH Striped Series '78 Eruption Relic Electric Guitar
Product no: 9000-0096-7136 Bax Music Warranty: This product comes with a 3-year warranty.

General

It all started on a cold winter's day back in February of 1978 when Eddie van Halen appeared on the front of Van Halen's debut album holding his one-of-a-kind black-and-white Strat. Now, you can get your hands on a devoted remake in the tight form of the EVH Striped Series '78 Eruption Relic - named after Eddie's legendary soloing style. If any Eddie fan has done their homework, they'll know that he spent his life searching tirelessly for the ultimate tone - anything that might match the sound in his head. Since no guitar in existence could match up, he took matters into his own hands and just built them himself. As such, his custom black-and-white axe was the first Strat ever seen - or heard with a humbucker - and it caused a revolution.

Blending Original Features with Modern Perks

Every inch of the EVH '78 Eruption mimics Eddie's original, but as soon as you start digging into the specs, you'll find a nice fistful of more modern perks have been piled on top. So besides the single slanted EVH Wolfgang humbucker planted at the bridge, this model features the convenience of a heel-mount truss rod, making neck adjustments far easier, while the compound 12 inch to 16 inch fretboard radius provide far more consistent grip than the 7.7 inch or 9 inch radius of vintage models from back then. The oversized, licensed Strat headstock is an undeniably cool detail, as well as the 43mm brass block sitting beneath the vintage-style tremolo bridge, and as a sweet finish, the volume pot has been fitted with a tone-pot-cover - true Eddie style.

Specifications

Product features

Number of frets 22
Number of strings 6
Bridge type vintage-style tremolo
Sustainable product not specified
Pickup configuration H (humbucker in bridge position)
Pickup type humbucker (active)
Suitable style of music metal, rock
Neck connection bolt on
Fretboard wood maple
Includes cover yes
Includes case no
Colour white, black
Country of origin Indonesia
Left-handed no
Body material linden (basswood)
Scale length 25.5 inches (648mm)
Body type ST

Weight and dimensions including packaging

Weight (incl. packaging) 6,0 kg
Dimensions (incl. packaging) 107,0 x 39,0 x 11,5 cm

Product specifications

  • EVH electric guitar
    • model: '78 Eruption
    • series: Striped
    • colour: White / Black
  • body
    • finish: lacquer
    • shape: ST
  • neck
    • bolt-on, graphite reinforced neck
    • material: quarter sawn maple
    • finish: hand-worn satin-gloss urethane
    • scale length: 25.5" (648mm)
    • fretboard: maple
    • fretboard radius: 12" - 16" (305 - 406mm)
    • number of frets: 22
    • type of frets: jumbo
    • nut: brass
    • nut width: 42.86mm (1.6875")
    • position markers: black position dots
    • truss rod: Heel-Mount Truss Rod Adjustment Wheel
  • hardware
    • bridge: Six-Saddle Vintage Fender® Stratocaster Synchronized Tremolo
      with 43mm Brass Block
    • hardware finish: reliced chrome
    • machine heads: EVH-Branded Gotoh, closed oil-bed
    • strings: .009 - .042
  • electronics
    • pickup: EVH® Wolfgang® Humbucker
    • controls: 1x volume (500K EVH Bourns low-friction potentiometer) with treble bleed circuit
  • included: EVH Striped Series Gig Bag
