Discontinued, this product can no longer be ordered.
Not sure if the Apogee Quartet USB audio interface is for you? Do a Choice Check.
Start Choice Checker

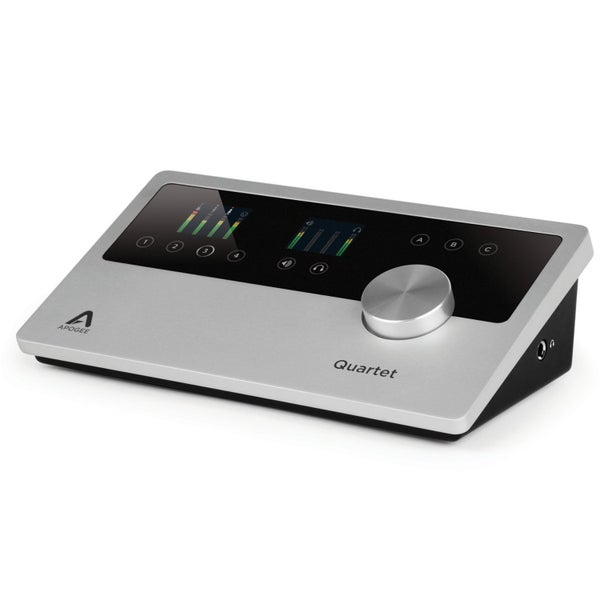

Apogee Quartet USB audio interface
Product no: 9000-0004-6161
Bax Music Warranty:
This product comes with a 3-year warranty.
General
As its name suggests, the stylish Apogee Quartet USB audio interface for iPad and Mac is the bigger brother of the Duet and delivers a double dose when it comes to recording ease. With four audio inputs and top-quality recording, you are assured of fantastic results. Precision VU meters displayed on two sharp OLED screens give you a clear overview during recording. In combination with the large, accurate dial, operation is intuitive and easy. The interface comes with a huge discount on the popular Wave Gold Plugin bundle, which consists of 35 high-quality audio plugins.
Quartet audio interface: user-friendly
During each step in the recording process, you'll know exactly where you are musically thanks to the practical visual and auditory aids. Per channel, it offers a clear overview on the displays. On the side of the Apogee Quartet is a headphone socket for monitoring purposes. Despite the number of possibilities the Quartet offers, its beautiful design has remained very compact. As such, you'll have no problem finding a suitable place in your studio or recording space for the Apogee Quartet USB audio interface.
Tips or comments about this product
- Please note: a Lightning cable is included. A 1M 30-pin cable is sold separately.
Specifications
Product features
| 19 inches |
no |
| Number of analogue Inputs |
4 |
| Number of analogue outputs |
6 |
| Computer ports |
USB, Lightning |
| Phantom power |
yes |
| Suitable for operating system |
Apple OSX / Mac OS, iOS |
| Total microphone inputs |
4 |
| Maximum sample rate |
192 kHz |
| Included data cable |
USB cable, Lightning Cable |
| Included software |
none |
| Software included |
no |
Weight and dimensions including packaging
| Weight (incl. packaging) |
1,6 kg |
| Dimensions (incl. packaging) |
25,8 x 14,0 x 8,0 cm
|
Product specifications
- USB 2.0 audio interface for iPad and Mac
- 24-bit/192 kHz A/D and D/A converters
- 4 analogue inputs with mic preamps
- switchable phantom power supply, soft limit and phase reversal
- digital inputs: ADAT/SMUX input (8 channels via 2 Toslink connectors) and MIDI input (USB A type connector)
- analogue outputs: 6 balanced line outputs
- sample rates: 44.1 kHz to 96 kHz
- digital output: MIDI out (USB A type connector) and word clock out (BNC connector)
- headphones socket for monitor use
- intuitive operating structure with accurate dial control
- 6 touchpads for channel selection
- 3 assignable touchpads for controlling various functions
- monitor control for up to 3 speaker sets
- 2 high-resolution OLED displays for clearly showing VU meters
- stylish and compact housing
- compatible software: Logic, Pro Tools 9 & 10, Final Cut, Ableton Live, GarageBand, Studio One, Cubase, Digital Performer, Nuendo (and other Core Audio compatible applications)
- system requirements: Intel Mac 1.5 GHz or faster / 2 GB RAM, 4 GB recommend, OS 10.6.8 or newer
- optionally available at Apogee: Waves Gold Plugin bundle (download):
- 35 essential audio plugins for mixing and mastering
- compressors, equalizers, reverbs, effects and more
Included accessories:
- USB cable (2m), universal power supply, instruction documents, lightning cable
- adapter cable from USB to 30-pin connector for iPad 1 & 2
