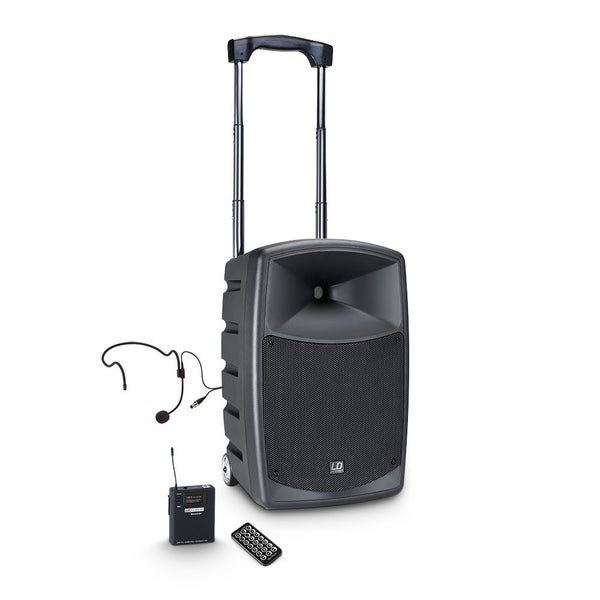

LD Systems ROADBUDDY 10 HS B5 Battery-Powered Wireless Speaker (584 - 607 MHz)

no reviews yet

LD Systems ROADBUDDY 10 HS B5 Battery-Powered Wireless Speaker (584 - 607 MHz)

Discontinued

This product can no longer be ordered

Specifications

Product features

Battery included: Yes
Playback options: Bluetooth, USB drive, SD card
Battery life (approx.): 8 hours
Sustainable product: Not specified
Weight: 15 - 19.9 kg
Built-in light/laser effect: No
Included microphone: Headset
Stand-mountable: Yes
RMS power in watts: 100 - 199 W
Analogue audio input type: Unbalanced stereo line in (TRS mini-jack), balanced line in (TRS jack), microphone input (XLR)
Analogue audio output type: Balanced line out (TRS jack)
Splash-proof: Not specified
Wheels + extendable handle: Yes

Weight and dimensions including packaging

Weight: 17,0 kg
Dimensions: 53,0 x 42,0 x 33,0 cm

Product specifications

LD Systems ROADBUDDY 10 HS B5
PA battery-powered loudspeaker 584 - 607 MHz
low/mid driver size: 10 inch
woofer size: 254 mm
woofer magnet: ferrite
woofer brand: custom-made
dimensions HF driver: 1 "
HF driver dimensions: 25.4 mm
HF driver magnet: ferrite
HF driver brand: custom-made
amplifier: Class D
RMS: 120 W.
peak power: 480 W
frequency range: 55 - 18,000 Hz
SPL (1W / 1m): 96 dB
max. SPL: 115 dB
protection circuits: overload protection, short circuit
controls: AUX / MP3 switch, CD / Tape IN level, Echo, high, low, Master volume, Mic 1 level, Mic 2 level, Total volume
indicators: Charge / battery status, Power supply
supported media: Bluetooth, SD card, USB stick
supported formats: MP3 file, WAV-CD, WMA file
media player controls: equaliser, mode (menu / Bluetooth / SD / USB), next track, play / pause, previous track, repeat, stop
media player display elements: illuminated multi-function LC display
line inputs 2 x RCA, 2 x XLR, 3.5 mm jack, 6.3 mm jack
mic inputs: 2
microphone inputs: 2 x XLR, 6.3 mm jack
transmission frequency range: 584,000 - 607,000 MHz
modulation type: FM
channels: 16
frequency range wireless unit: 50 - 17,000 Hz
controllers Wireless unit: ASC, Mute Level (Squelch), Power / Volume, Value Down, Value Up
indicators Wireless unit: AF (LED), LED display, RF (LED)
connections Wireless unit: nTNC for receiver antenna
rF transmitter output power: 10 mW
bodypack material: ABS plastic
operating voltage: switching power supply
voltage: 100 V - 120 V / 60 Hz, 220 V - 240 V AC / 50 Hz
rechargeable batteries: 12 V / 5 Ah
housing: polypropylene
speaker construction: Bass Reflex
width: 415 mm
height: 525 mm
depth: 328 mm
weight: 16.5 kg
other features: stand 36 mm, transport wheels, transport handle
