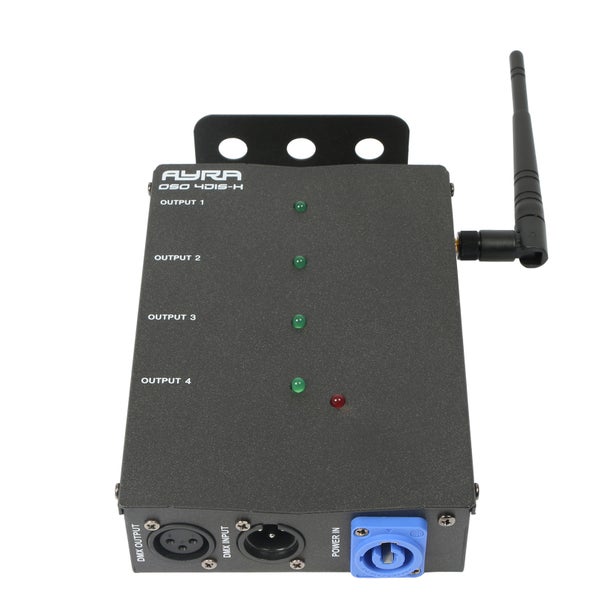

Ayra OSO 4DIS-H 4-way DMX splitter with wireless functionality

Popu
lar
Online stock status:
In stock
£129.00 (incl. 20%VAT)
11 left in stock
Ayra OSO 4DIS-H 4-way DMX splitter with wireless functionality Product no.: 9000-0027-4694

General

The Ayra OSO 4DIS-H ensures a perfect distribution of your DMX signal in places where that wouldn't normally be possible. This DMX splitter converts your DMX signal to four separate isolated outputs, but you can also combine it with the OSO W-D transmitter and transmit your DMX signal wirelessly!

OSO 4DIS-H functionality

Underneath the robust metal housing of this device, you'll find an impressive bit of technology. The OSO 4DIS-H splits your DMX signal up into four separate outputs, each one isolated enough to ensure no cross-signal interference takes place. The housing is equipped with an integrated bracket so you can mount it to a G-hook or a half coupler. If you prefer to install it under a working surface, you can.

Wireless DMX

If you'd like to take advantage of the OSO 4DIS-H's wireless functionality, then you'll need the OSO W-D transmitter. The OSO 4DIS-H functions as a receiver, and by setting both devices to the same ID, you can set up a reliable signal distribution in no time. The wireless function in the ID automatically searches for available frequencies in the 2.4GHz band, which is commonly used for mobile devices like laptops and smartphones. Using the buttons on the side, you can set any of the IDs based on a colour-coding system.
Warranty period
This product comes with a 3-year warranty.

Product features

  • Weight (incl. packaging) 3.0 kg
  • Dimensions (incl. packaging) 30.0 x 30.0 x 7.0 cm

Product specifications

  • wireless DMX splitter
  • 4 isolated DMX outputs
  • LED indicators for all isolated outputs
  • power supplied via lockable connector
  • rugged metal housing
  • integrated mounting points
  • switchable wired or wireless working mode
  • wired DMX input and output (hard link)
  • wireless function with antenna
  • frequency band: 2.4 GHz
  • 7 IDs, switches automatically between frequencies
  • IDs displayed with RGB LED, switchable with single button
  • LED indicator for wireless DMX status
  • can function with multiple systems at once
  • works only with OSO W-D DMX transmitter in wireless mode
  • dimensions (LxWxH): 200 x 150 x 70 mm
  • weight: 3 kg
  • voltage: 100V / 240V
  • internal fuse: 0.5A 250V 5x 20 mm
