Sennheiser ew 100 G4-835-S-B Wireless Handheld Mic System (626 - 668 MHz)
Product no: 9000-0042-8319 Bax Music Warranty: This product comes with a 3-year warranty.

General

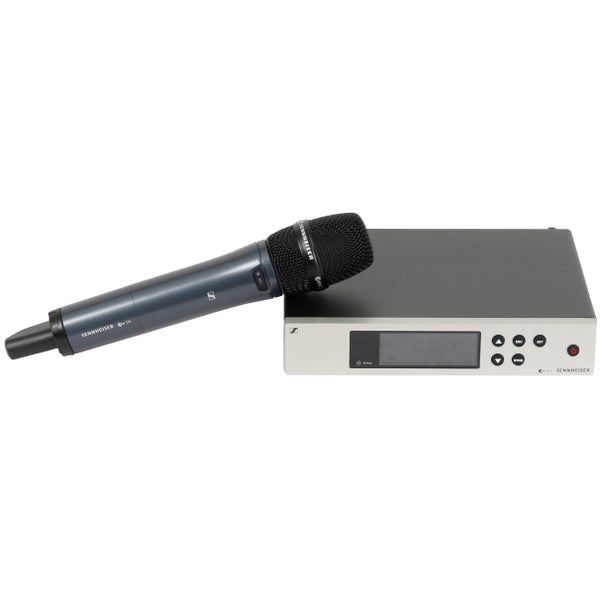

The EW 100 G4-835-S vocal set by Sennheiser offers flexibility and reliability for anyone who wants their speech, vocals or musical instrument amplified. This system enables you to use twelve systems at once with ultimate reliability on the UHF frequency band. The SKM 100 G4 handheld transmitter with a cardioid pickup pattern and MMD 835 1 capsule, which has a frequency range of 80 Hz to 18 kHz. There's also the option to insert a second capsule. The EM 100 G4 receiver comes with the GA 3 rack mount kit so you can mount it in a 19-inch flight case (sold separately).

Specifications

Product features

Number of wireless system channels	1
Number of microphones	1 microphone
Bandwidth	40 to 48 MHz
Battery type	AA
Battery life (approx.)	8 hours
Digital connection(s)	n/a
Sustainable product	not specified
Frequency suitable for Belgium	yes, licence required
Frequency suitable for Netherlands	yes, no licence required
Frequency suitable for UK	yes, with standard licence
Worldwide frequency use	no
Frequency band	Sennheiser ew G4 B (626 - 668 MHz)
Wireless microphone system type	Multichannel system for venues and festivals
Channel	40 (622 - 630 MHz), 41 (630 - 638 MHz), 42 (638 - 646 MHz), 43 (646 - 654 MHz), 44 (654 - 662 MHz), 45 (662 - 670 MHz)
Maximum frequency	16 - 16.9 kHz
Included transmitter	handheld transmittter (with capsule)
Minimum frequency	80 - 99 Hz
Polar pattern	cardioid
Switchable frequencies	yes
Analogue audio output type	unbalanced line out (TS jack), balanced microphone out (XLR)
Type of frequency band	600 - 699 MHz
Transmission power	30 mW

Weight and dimensions including packaging

Weight (incl. packaging)	3,0 kg
Dimensions (incl. packaging)	41,5 x 37,0 x 8,0 cm

Product specifications

Sennheiser ew 100 G4-835-S-B
wireless vocal set
frequency band B: 626 - 668 MHz
system:
- bandwidth: 42 MHz
- range: max. 100 m
- number of channels: 20
- RF Mute on/off: synchronise and make adjustments without affecting other bands
  Data Link: connect up to 10 sets with each other for a fast multi-channel setup
EM 100 G4 receiver:
- outputs: XLR (balanced) jack (balanced or unbalanced)
- 4x equalizer presets
- equipped with mute button
- BNC connector for signal transfer and power supply of optional ASA 214 antenna
- dimensions: 190 x 212 x 43 mm
- weight: 980 g
SKM 100 G4 handheld transmitter
- MMD 835-1 capsule
- frequency response: 80 Hz - 16 kHz
- pickup pattern: cardioid
- max. transmission capacity: 30 mW
- equipped with mute button
- power supply: 2x AA batteries or BA 2015 rechargeable battery
- dimensions: 50 x 265 mm
- weight: 450 g
included:
- GA 3 rack mount set
- MZQ 1 mic clip
- mains power adapter for receiver
- 2x AA batteries
- 2x antennas
- RJ 10 cable
