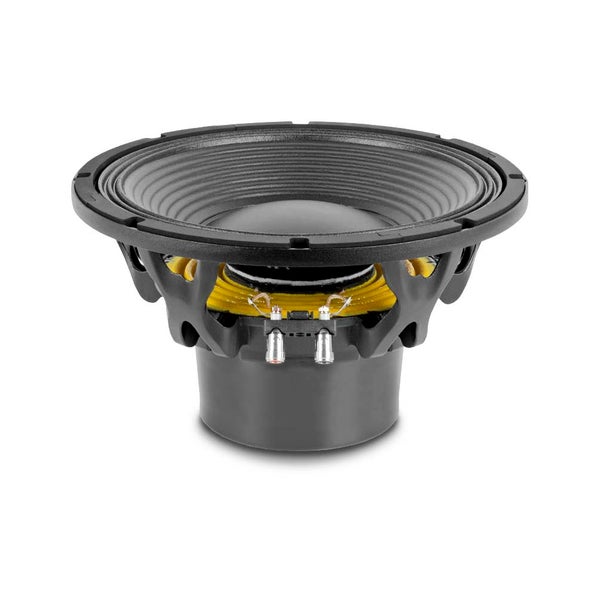

Beyma 12LEX1300Nd 1300W, 8 Ohm Professional 12-inch Low-Mid Bass Speaker

no reviews yet

Discontinued, this product can no longer be ordered.

No alternatives found

Beyma 12LEX1300Nd 1300W, 8 Ohm Professional 12-inch Low-Mid Bass Speaker
Product no: 9000-0102-2458 Bax Music Warranty: This product comes with a 3-year warranty.

General

The Beyma 12LEX1300Nd low-mid bass speaker has an AES power rating of 1,300 Watts at 8 Ohms, a 45Hz to 1,500Hz frequency range and 98 decibel sensitivity level. Fitted with a neodymium magnet and backed up the optimal cooling of a Malt Cross system, this speaker guarantees high performance. The dual-layered designed of the 4 inch voice coil and peak-to-peak maximum incursion of 65mm also ensure professional results. Constructed to ensure maximum outward spread and featuring a weather-resistant cone, this speaker can also be installed to serve as a high-spec band-pass subwoofer

Specifications

Product features

Sustainable product	not specified
Sensitivity	96 dB
Weight per speaker	9 kg
Installation depth	170 - 179 mm
Maximum frequency	1 - 4.9 kHz
Minimum frequency	40 - 49 Hz
Nominal impedance	8 ohms
Peak power in watts	1,500 - 3,000 watts
RMS capacity in watts	1,250 - 1,499 W
Type of speaker	subwoofer
Type of magnet	neodymium

Weight and dimensions including packaging

Weight (incl. packaging)	9,0 kg
Dimensions (incl. packaging)	35,0 x 34,2 x 25,5 cm

Product specifications

technical specifications:
- nominal impedance: 8 Ohms
- AES power capacity: 1300W
- woofer diameter: 12"
- sensitivity: 96 db, 1W/1m
- minimum impedance: 6.8 Ohms
- frequency range: 45Hz - 1,500Hz
- program power: 2600W
- recommended cabinet volume: 45L
- speaker coil diameter: 101.6mm, 4"
- BL factor: 26.4 N/A
- moving mass: 0.125 kg
- wrap length: 28mm
- air gap height: 14mm
- Xdamage pp: 65mm
Thiele & Small:
- Fs: 45Hz
- Re: 5 Ohms
- Qms: 4.2
- Qes: 0.25
- Qts: 0.24
- Vas: 43 L
- Cms: 100 µm / N
- Rms: 8.4 kg/s
- efficiency: 1.5%
- Sd: 0.055m²
- Xmax: 11mm
- Vd: 605cm³
- Le at 1 kHz: 1.3 mH
construction:
- depth: 176mm
- total weight: 9.0 kg
- magnet: neodymium
