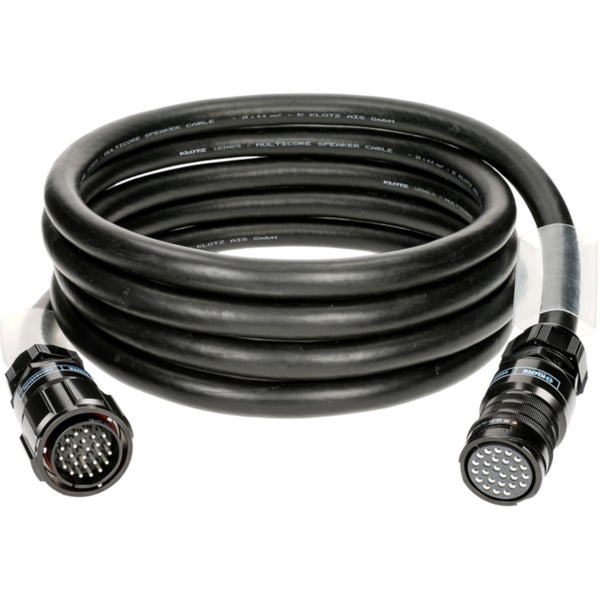

Klotz LP244XY1S2000 24x 4.0 mm² speaker cable eXtreme PVC PA-COM® 25p F/M with sliver-plated 20m

General

The Klotz LP244XY1S2000 is a high-quality 24-channel speaker multicore cable specifically designed for multi-amplifier systems such as d&b. The cable type LSC2440YS offers extremely flexible conductors, reinforced by LCP (Vectran™) braids for increased tensile strength and better stability. The cable is flexible down to -20°C and resists repeated bending. The PA-COM® 25p F/M connectors ensure excellent signal transmission thanks to silver-plated contacts. The cable is equipped with transparent crimp caps for labelling.

• Number of channels: 24

• Wire cross-section: 24 x 4.0 mm²

• Cable type: LSC2440YS eXtreme, stranded bare copper wires

• Insulation: PVC, black

• Outer jacket: PVC with LCP braid (Vectran™)

• Connectors: PA-COM® 25p female without ring, PA-COM® 25p male with ring

• Contacts: Silver-plated

• Outer cable: PVC black with LCP braid (Vectran™)

• Strain relief: Plastic / ZEP

• Shrink caps: Transparent, on both sides for labelling

• Working temperature: installed -30°C / +70°C, mobile -20°C / +70°C

• Cable outer diameter: 28.5 mm

• Cable colour: Black

• Weight per metre: 1.5 kg

• Length: 20 metres

• Maximum operating voltage: 500 V

• Flame retardant: IEC 60332-1-2

• RoHS and REACH compliant

• SKU: LP244XY1S2000
