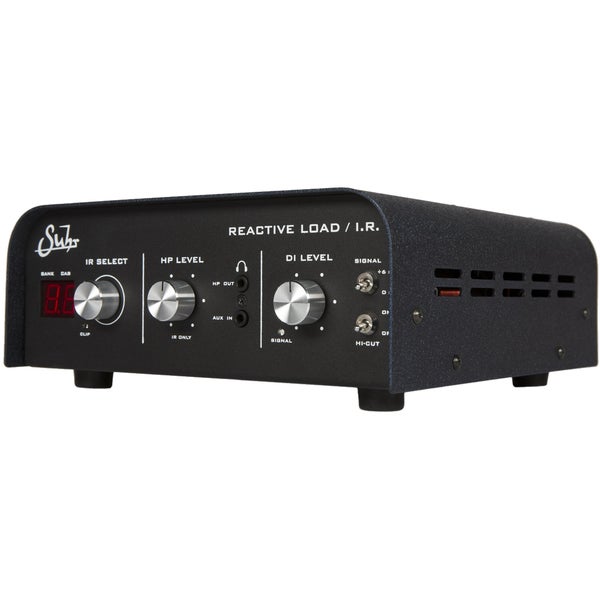

Suhr Reactive Load IR Loadbox

RMS capacity in watts	100 - 199 W
Features	DI, reactive load box / dummy load, thru output

Suhr Reactive Load IR Loadbox
Product no: 9000-0146-7680 Bax Music Warranty: This product comes with a 3-year warranty.

General

Suhr's Reactive Load IR is based on the original Reactive Load and replaces a speaker cabinet but this version adds impulse response technology and comes with 16 pre-installed impulse responses from Suhr speaker cabinets. You can also load your own impulse responses via the USB port and this box is actually indistinguishable from a real cabinet. You send a consistent guitar sound through and it's perfectly possible to use both outputs so you can record the dry signal and the IR effect signal at the same time for more flexibility in the mix. Want to practice quietly at home? No problem, as you can connect your smartphone or another source via the aux input, and headphones can also be connected without a problem.

Specifications

Product features

Sustainable product	not specified
Input impedance (ohms)	8
RMS capacity in watts	100 - 199 W
Features	DI, headphone output, impulse responses (IR), reactive load box / dummy load, speaker simulation, thru output

Weight and dimensions including packaging

Weight (incl. packaging)	1,5 kg
Dimensions (incl. packaging)	32,0 x 31,0 x 19,0 cm

Product specifications

Suhr load box
type: Reactive Load IR
with impulse response technology
16 pre-installed impulse responses from Suhr speaker cabinets, including:
- Badger 1x12 - Celestion Vintage 30
- Bella 1x12 - Celestion V-Type
- PT 2x12 - Celestion Creamback
- Hedgehog 2x12 - Celestion G12-65
- Suhr 4x12 - Celestion Greenback
- Suhr 4x12 - Celestion Vintage 30
connectors:
- 6.35 mm mono jack input (from amp)
- 6.35 mm mono jack thru (to speaker)
- 6.35 mm mono jack (un)balanced DI / line out unfiltered
- 6.35 mm mono jack (un)balanced DI / line out IR
- USB port
controls: DI level, IR select, DI level
speaker impedance: 8 ohms
DI / line out level: +4 dBu at 7 watt input, maximum level setting
maximum recommended input power: 150 watts RMS
dimensions: 226.06 x 223.52 x 91.44 mm
weight: 3.04 kg
power supply: included. 9Vdc, centre negative, 2.1mm x 5.5mm
