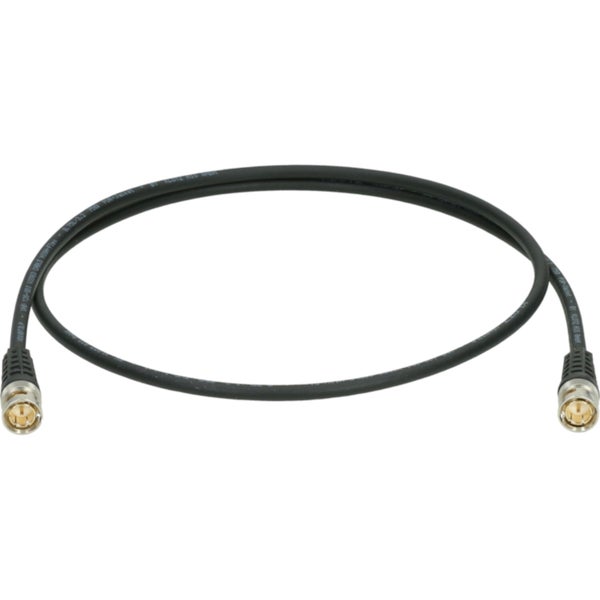

Klotz VU07L1DS0-0045 UHD 12G Video Cable BNCslim 0.45 metres
Klotz
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 0.45 m
Weight and dimensions including packaging
- Weight
- 37 gr
- Dimensions
- 12,0 x 9,0 x 3,0 cm
Product specifications
- 0.45 m length
- BNCslim - BNCslim connectors (Damar & Hagen)
- Cable colour: black
- Cable sheath material: PUR
- Diameter: 5.0 mm
- Inner conductor: stranded copper
- Insulation: gas injected PE, Ø 3.2 mm
- Shield: densely wound tinned copper braid (≥ 95% coverage)
- Maximum transmission range UHD 12G: 36 m
- Maximum transfer range UHD 6G: 56 m
- Maximum transfer range UHD 3G: 84 m
- Maximum transfer range HD 3G: 42 m
- Maximum transfer range HD 1.5G: 61 m
- Temperature range: -40°C to +80°C
- Min. bend radius installation: 30 mm, operation: 50 mm
- Impedance: 75 Ω
- Capacitance: 55 pF/m
- Voltage of propagation: 80%
- Nominal attenuation (dB/100m): ranges from 1.0 dB at 1 MHz to 272.0 dB at 12,000 MHz
- Payback ratio: ≥ 28 dB for 12G-SDI signals
- EAN code: 4255646712015
- Article number: VU07L1DS0-0045
Choose your variant – Length: 0.45 m
Order before 10pm = in about 8 working days at home
Klotz VU07L1DS0-0045 + Innox Snap 27
- Recommended price
- £38.73
- Now as combination for
- £38.00
- You save
- £0.73
Order before 10pm = in about 8 working days at home
Klotz VU07L1DS0-0045 + Innox T-tie
- Recommended price
- £40.45
- Now as combination for
- £40.00
- You save
- £0.45
Order before 10pm = in about 8 working days at home
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 0.45 m
Weight and dimensions including packaging
- Weight
- 37 gr
- Dimensions
- 12,0 x 9,0 x 3,0 cm
Product specifications
- 0.45 m length
- BNCslim - BNCslim connectors (Damar & Hagen)
- Cable colour: black
- Cable sheath material: PUR
- Diameter: 5.0 mm
- Inner conductor: stranded copper
- Insulation: gas injected PE, Ø 3.2 mm
- Shield: densely wound tinned copper braid (≥ 95% coverage)
- Maximum transmission range UHD 12G: 36 m
- Maximum transfer range UHD 6G: 56 m
- Maximum transfer range UHD 3G: 84 m
- Maximum transfer range HD 3G: 42 m
- Maximum transfer range HD 1.5G: 61 m
- Temperature range: -40°C to +80°C
- Min. bend radius installation: 30 mm, operation: 50 mm
- Impedance: 75 Ω
- Capacitance: 55 pF/m
- Voltage of propagation: 80%
- Nominal attenuation (dB/100m): ranges from 1.0 dB at 1 MHz to 272.0 dB at 12,000 MHz
- Payback ratio: ≥ 28 dB for 12G-SDI signals
- EAN code: 4255646712015
- Article number: VU07L1DS0-0045
Product information
Product no: 9000-0144-1690
General
The Klotz VU07L1DS0-0045 is a robust, flexible UHD video cable with BNCslim connectors at both ends. This cable is specially designed to transmit high-resolution 12G-SDI signals, perfect for use in broadcast environments and mobile setups. With an outer diameter of only 5.0 mm and a PUR outer jacket, this cable is both robust and highly flexible, suitable for use in temperatures from -40°C to +80°C. Its compact design makes it ideal for 4K/UHD and 12G applications, where the signal can be reliably transmitted up to 36 metres.
