Klotz VU10H9DP0-7000 UHD installation cable 12G 70 metres

Length	3.00 m

Length	5.00 m

Length	10.00 m

Length	20.00 m

Length	30.00 m

Length	50.00 m

Klotz VU10H9DP0-7000 UHD installation cable 12G 70 metres
Product no: 9000-0144-3483 Bax Music Warranty: This product comes with a lifetime manufacturing defects warranty.

General

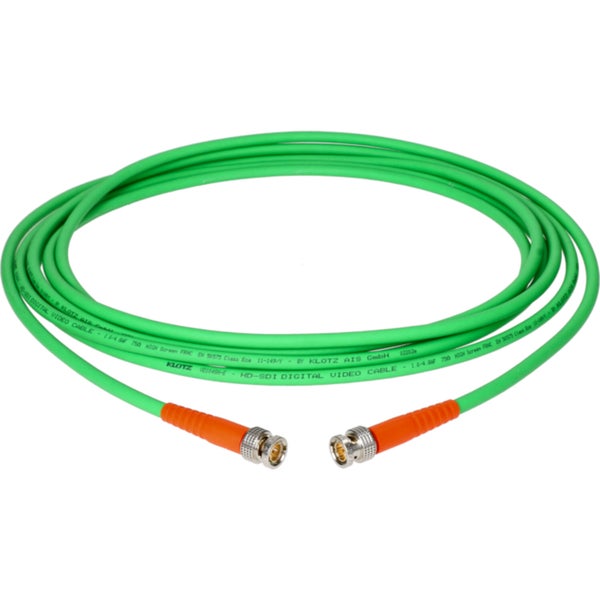

The Klotz VU10H9DP0-7000 is a 70-metre professional UHD video installation cable with double shielding (100% foil + 95% braid). The cable features Damar & Hagen BNCPro connectors and is designed for use in HD, UHD, 12G, and 4K installations. Thanks to improved electrical and mechanical properties, this cable offers reliable signal transmission even at longer distances and demanding environments. The cable is flame-retardant and non-corrosive (FRNC) and complies with the latest SMPTE standards.

Specifications

Product features

Sustainable product	not specified
Length	70.00 m

Weight and dimensions including packaging

Weight (incl. packaging)	4,0 kg
Dimensions (incl. packaging)	54,0 x 44,0 x 12,0 cm

Product specifications

cable type: digital video VD104SH - 1.0/4.8 AF
cable colour: black
outer jacket: FRNC
maximum transmission length: UHD 12G 70 m; UHD 6G 105 m; UHD 3G 155 m; HD 3G 77 m; HD 1.5G 114 m
connector 1: BNCPro plug / Damar & Hagen
connector 2: BNCPro plug / Damar & Hagen
operating temperature: -30°C to +70°C
minimum bending radius: 40 mm
impedance: 75 Ω ± 1%
capacitance: 55 pF/m
speed of propagation: 80
DC resistance outer conductor: 6 Ω/km
shielding: > 95 dB
nominal attenuation (dB/100m): 1 MHz 0.8, 5 MHz 1.6, 10 MHz 2.1, 100 MHz 6.2, 135 MHz 7.3, 200 MHz 8.9, 500 MHz 14.4, 750 MHz 18.2, 1000 MHz 21.1, 1500 MHz 26.4, 3000 MHz 38.6, 6000 MHz 57.0, 12000 MHz 86.2
Kickback loss: > 28 dB for 12G-SDI signals
core: solid bare copper wire, Ø 1.0 mm
insulation: foam-skin PE, gas injected, Ø 4.8 mm
shielding: AL/PET/AL double-layer foil + silver-plated copper braid (95% coverage)
cable diameter: 6.9 mm
class: CPR Eca according to EN50575 (IEC 60332)
jacket colour: orange
weight per metre: 0.05 kg
