Klotz CAM-FME-0050.0 HD camera cable with LEMO connectors 50 metres
Product no: 9000-0144-4557 Bax Music Warranty: This product comes with a lifetime manufacturing defects warranty.

General

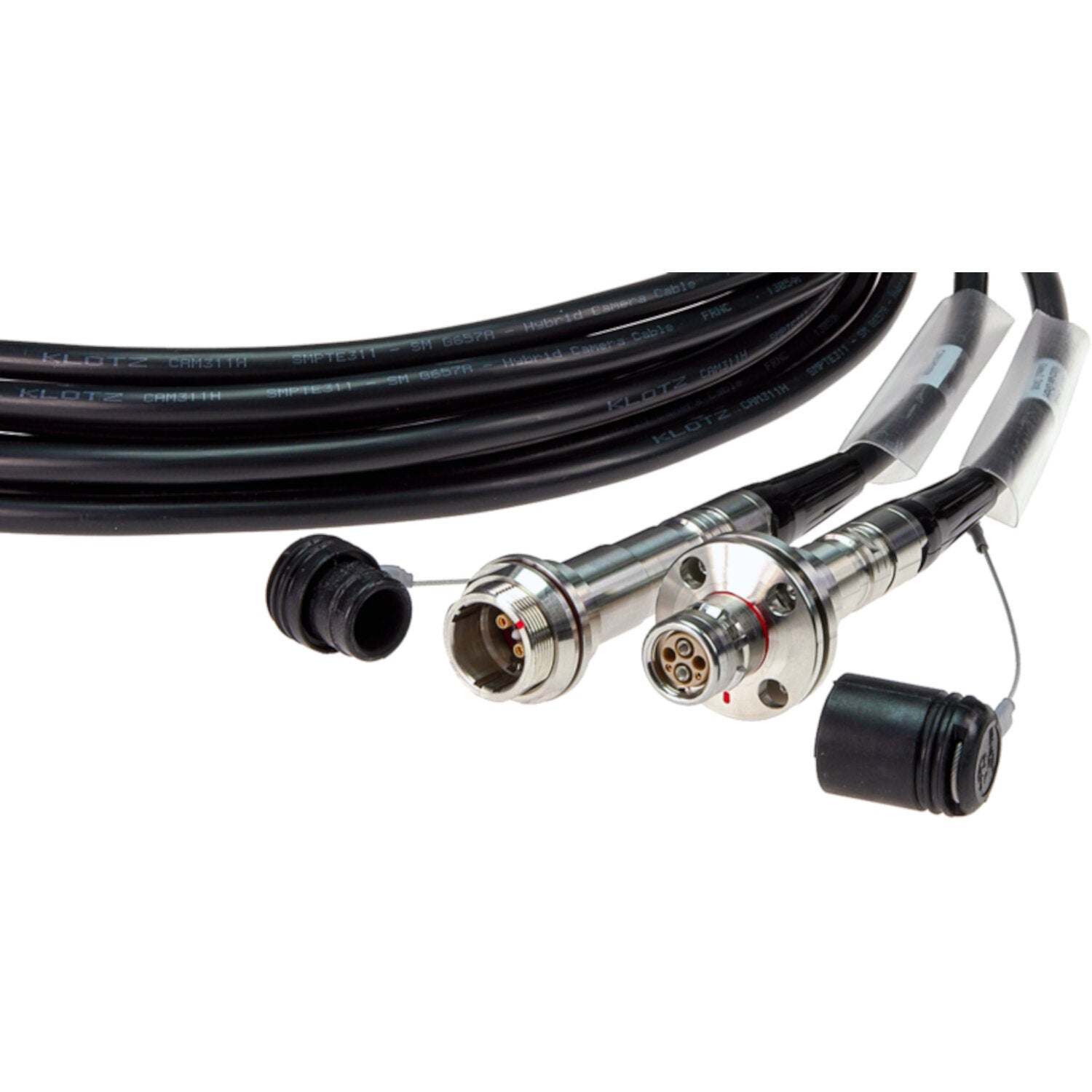

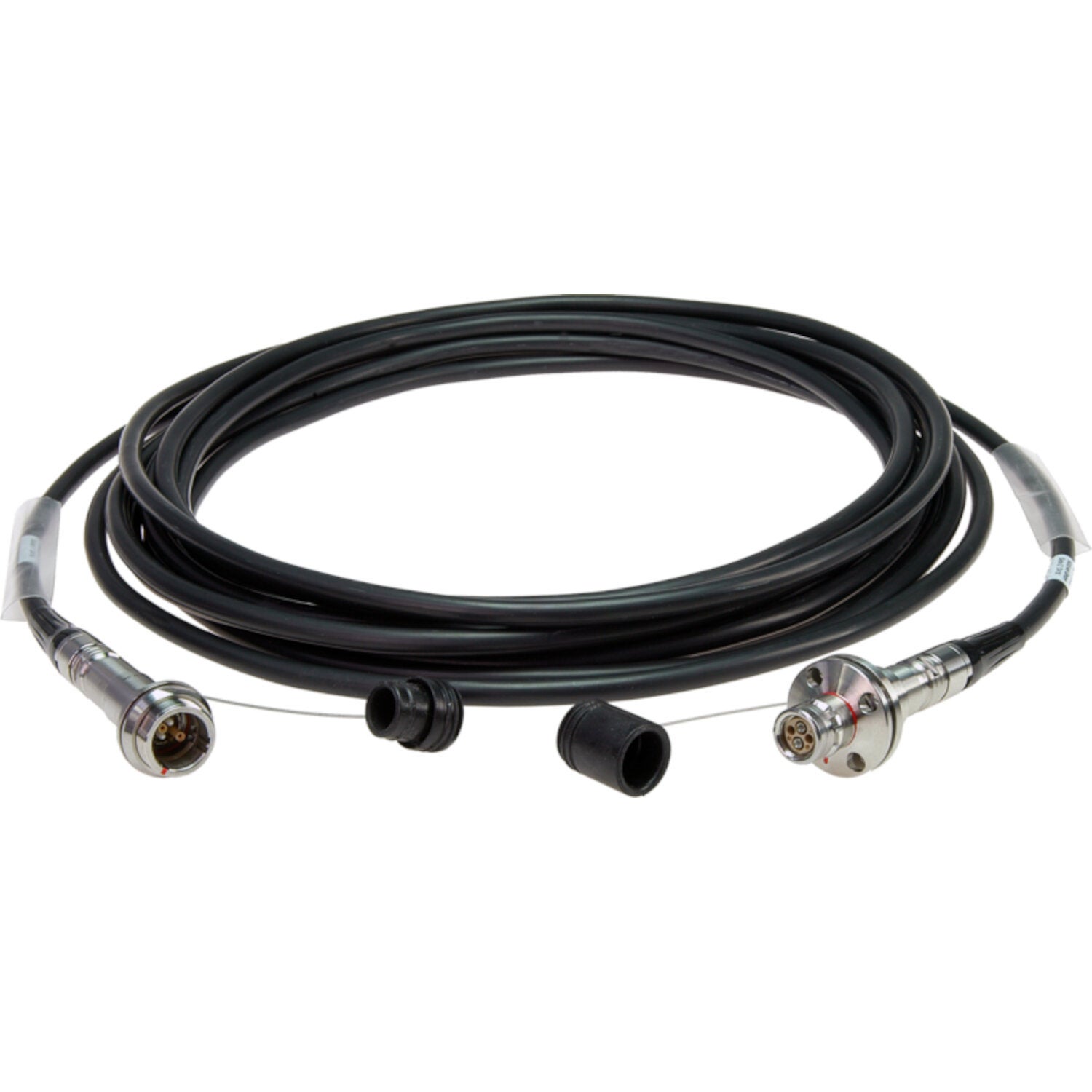

This Klotz CAM-FME-0050.0 is a durable, ready-to-use 50-metre HD camera installation cable with LEMO-SMPTE connectors. The cable features two single-mode optical fibres for HD signal transmission and six copper conductors for power supply and remote control. Thanks to its central steel draw wires and FRNC outer jacket, the cable is suitable for professional installations in patchbays or fixed cable routes. Compatible with Sony, JVC, Panasonic, Grass Valley and Blackmagic Fiber Converter. Complies with SMPTE-311M and SMPTE-304 standards.

Specifications

Product features

Sustainable product	not specified
Length	50.00 m
Pin configuration	not applicable
Number of channels	2
Data plug type	LC/PC

Weight and dimensions including packaging

Weight (incl. packaging)	6,6 kg
Dimensions (incl. packaging)	42,0 x 34,0 x 10,0 cm

Product specifications

length: 50 m
cable colour: black
cable type: HD camera cable CAM311 with FRNC outer jacket for installations
outer jacket: FRNC
connector 1: panel plug SMPTE304M (FMW) / LEMO
connector 2: panel socket SMPTE304M (PEW) / LEMO
2 single-mode fibre optic conductors E9/125 µm, ITU G.657.A2/B2
6 copper lines (4x power supply + 2x remote control)
central steel tensile wires for extra strength
maximum tensile force: 750 N
crush resistance: 2000 N/10 cm
min. bending radius: 10x total diameter
halogen-free in accordance with IEC 60754-1
control core: stranded tinned copper, 7x0.20 mm, 0.22 mm², colours red/grey, PE Ø 1.2 mm
conductor resistance: <90 Ω/km
insulation resistance: ≥10 GΩ x km
test voltage: 1750 V
working voltage: <300 V AC rms
fibre core colours: blue and yellow
max. attenuation @ 1310 nm <0.5 dB/km
power core: stranded tinned copper, 19x0.20 mm, 0.6 mm², colours 2x white / 2x black
overall shield: tinned copper braid, DC resistance <20 Ω/km
overall diameter of cable: 9.2 mm
working temperature: -20°C / +70°C
part number: CAM-FME-0050.0
weight: 0,13 kg/m
acc. SMPTE-311M and SMPTE-304
suitable for professional HD cameras from Sony, JVC, Panasonic, Grass Valley and Blackmagic Fiber Converter
