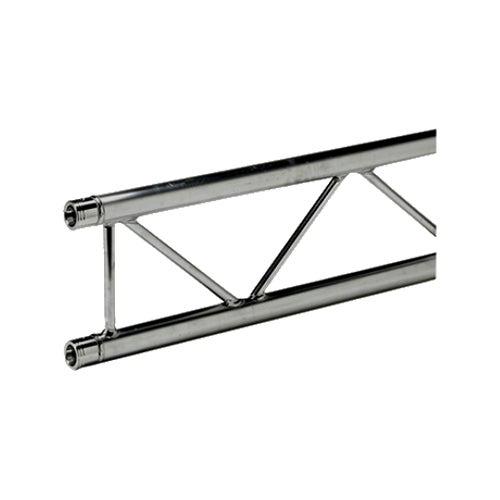

Prolyte X30L ladder truss 200 cm

General

Whatever line of business you're working in, Prolyte always offers you products to make your constructions better, safer, and more creative. A good example is the X30 series truss in ladder, triangle, and square form. This series is highly versatile for (semi-)permanent installations as well as rental applications.

Construction of the X30 series

The X30 series features main tubes with a diameter of 51 mm, while the bracing has a 16mm diameter. Both have a wall thickness of 2 mm. Thanks to the wide range of corners and bends available you can let your creativity run wild. The well-known CCS6 coupling system allows for a very quick (dis)assembly and makes it possible to use it with other brands of truss.

Ladder variant

The type X30L is the ladder version of the X30 series and consists of two main tubes above one another and a series of braces in between. With a length of four metres, the divided weight capacity is 44 kg per meter and the point load is 88 kg.

• Please note: Prolyte's truss parts are delivered without couplers. These can be ordered separately. Each side of the ladder truss requires 2 couplers, 2x 2 pins, and 2x 2 clips.
