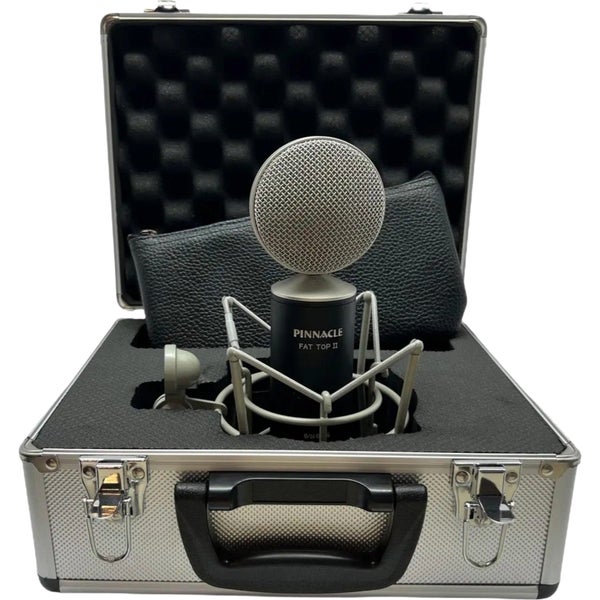

Pinnacle Microphones D-FTII-DEL-S Fat Top II Black with Lundahl Deluxe
Pinnacle Microphones
Specifications
Product features
- Sustainable product
- Not specified
- Minimum frequency
- 30 - 34 Hz
- Maximum frequency
- 15 - 15.9 kHz
- Maximum SPL
- 130 dB - 139 dB
- Microphone sensitivity (dBV/PA)
- -57
- Microphone impedance
- 200-249 ohms
- Microphone accessories
- Shock mount, bag / box, case
- Type of ribbon microphone
- Passive
Weight and dimensions including packaging
- Weight
- 2,8 kg
- Dimensions
- 36,0 x 28,0 x 16,0 cm
Product specifications
- microphone type: ribbon microphone (passive, short ribbon)
- ribbon material: 99.99% pure aluminium
- ribbon thickness: 2.5 micrometres
- ribbon dimensions: 1 3/4" (L) x 3/16" (W)
- polar pattern: symmetrical figure-8 (bidirectional)
- sensitivity: -54.4 dB (1.5 mV/Pa)
- Frequency response: 30 Hz to 15 kHz (+/- 3 dB)
- impedance: ≤ 200 ohms
- Recommended load impedance: 1,000 ohms
- Max. SPL: 135 dB (1% THD @ 1000 Hz)
- Equivalent noise level: 17 dB (IEC 268-4, A-weighted)
- Signal-to-noise ratio: 70 dB (re 1 Pa)
- Connector: 3-pin male XLR
- transformer: Lundahl LL2913
- Dimensions: 3" (outer diameter of grille), total length 8 1/2", 1 7/8" (outer diameter of housing)
- Colour: black
- Included: 1x Fat Top II black ribbon microphone with Lundahl, 1x deluxe shock mount, 1x carrying case, 1x aluminium case
Specifications
Product features
- Sustainable product
- Not specified
- Minimum frequency
- 30 - 34 Hz
- Maximum frequency
- 15 - 15.9 kHz
- Maximum SPL
- 130 dB - 139 dB
- Microphone sensitivity (dBV/PA)
- -57
- Microphone impedance
- 200-249 ohms
- Microphone accessories
- Shock mount, bag / box, case
- Type of ribbon microphone
- Passive
Weight and dimensions including packaging
- Weight
- 2,8 kg
- Dimensions
- 36,0 x 28,0 x 16,0 cm
Product specifications
- microphone type: ribbon microphone (passive, short ribbon)
- ribbon material: 99.99% pure aluminium
- ribbon thickness: 2.5 micrometres
- ribbon dimensions: 1 3/4" (L) x 3/16" (W)
- polar pattern: symmetrical figure-8 (bidirectional)
- sensitivity: -54.4 dB (1.5 mV/Pa)
- Frequency response: 30 Hz to 15 kHz (+/- 3 dB)
- impedance: ≤ 200 ohms
- Recommended load impedance: 1,000 ohms
- Max. SPL: 135 dB (1% THD @ 1000 Hz)
- Equivalent noise level: 17 dB (IEC 268-4, A-weighted)
- Signal-to-noise ratio: 70 dB (re 1 Pa)
- Connector: 3-pin male XLR
- transformer: Lundahl LL2913
- Dimensions: 3" (outer diameter of grille), total length 8 1/2", 1 7/8" (outer diameter of housing)
- Colour: black
- Included: 1x Fat Top II black ribbon microphone with Lundahl, 1x deluxe shock mount, 1x carrying case, 1x aluminium case
Product information
Product no: 9000-0158-0795
General
The Pinnacle Microphones Fat Top II is a passive short-ribbon microphone renowned for its soft, warm and rounded sound. Because the high frequencies naturally roll off slightly, sound sources sound less harsh without you having to resort to EQ straight away. The balanced figure-8 polar pattern picks up sound from the front and rear, with a deep side-lobe rejection for extra isolation. Ideal for guitar amps, piano, brass instruments and drums, and also perfect as a stereo pair in a Blumlein setup.
Service promise
Bax Music Warranty This product comes with a 3-month warranty.
This product comes with a 3-month warranty.
