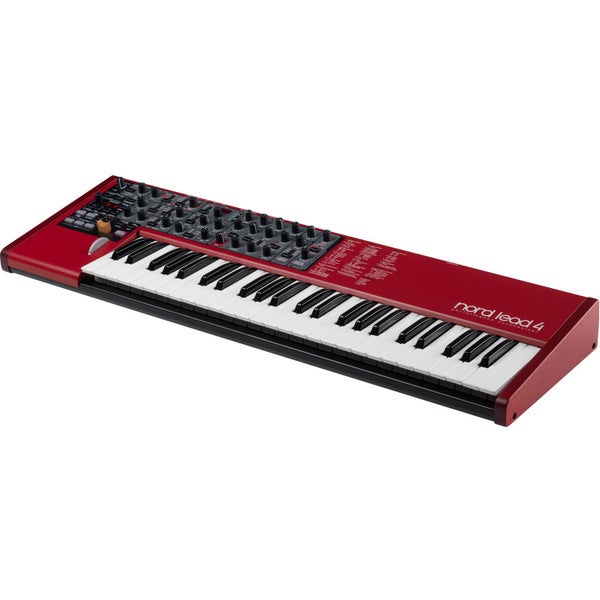

Clavia Nord Lead 4 Virtual Analogue Synthesizer
Product no: 9000-0005-5201
Bax Music Warranty:
This product comes with a 3-year warranty.
General
The Nord Lead 4 is an innovative 4-part multi-timbral synthesizer with 49 touch-sensitive keys. All four of the sounds can be routed to their own output and edited via an expansive filter and effects section. Along with the classic analogue sound waves, the Nordlead 4 also has a Wavetable mode with unique Formant wavetables. With the True Voice mode, you can stack up to four oscillators to create leads and pads with the True Voice Unison mode.
Nord Lead 4: Filters
Compared with the Nord Lead 2X, you'll find a number of new filter types and on-board effects. Along with the traditional low-pass (12/24dB), high-pass and band-pass filters, you can also choose from two transistor and ladder filters for a wonderfully extreme sound. There are seven programmable variations per sound at your disposal, and you can apply your chosen filter values in real-time using the rotary dials. You can even sync the filters with your sequencer.
Effects
Once you've set everything up, you can then fine-tune the sound per part via the expansive effects section of the the Nord Lead 4. For this, you have the choice of the following effects: bit-crusher, talk and distortion, reverb and delay.
Tips or comments about this product
-
Specifications
Product features
| 19-inch rack size |
not applicable |
| Number of keys |
49 |
| Arpeggiator/sequencer |
arpeggiator |
| Control |
sustain (input), expression (input) |
| Synthesizer inputs |
none |
| Sound source |
virtual analogue |
| MIDI & other |
MIDI in, MIDI out, MIDI over USB |
| Synthesizer outputs |
line out jack, headphone |
| Type of keys |
keyboard action |
| Synthesizer type |
keyboard |
Weight and dimensions including packaging
| Weight (incl. packaging) |
4,2 kg |
| Dimensions (incl. packaging) |
100,0 x 38,0 x 19,0 cm
|
Product specifications
- polyphone virtual analogue synthesizer
- 49 touch-sensitive keys
- polyphony: 20 voices
- wooden pitch stick
- modulation wheel
- number of program locations: 400
- number of performances: 99
- Octave Shift function
- 4-part multi-timbral (each with own output)
- virtual analogue subtractive synthesis:
- Morph & Variation performance control
- wavetable synthesis
- filters: 12/24 dB low-bass, high-pass, band-pass, + transistor and diode ladder filter simulations
- LFO, arpeggiator and delay can be synchronised with the master clock
- effects per part: crush, talk and distortion, reverb, delay
- MIDI support (DIN and USB)
- dimensions: 870 x 98 x 274 mm
- weight: 6 kg
Connections:
- Out 1, Out 2, Out 3, Out 4 (4x 6.3mm jack)
- headphone output (6.3mm stereo jack)
- MIDI IN/OUT (5-pin DIN)
- USB to host
- sustain pedal (6.3mm jack)
- control pedal (6.3mm jack)
