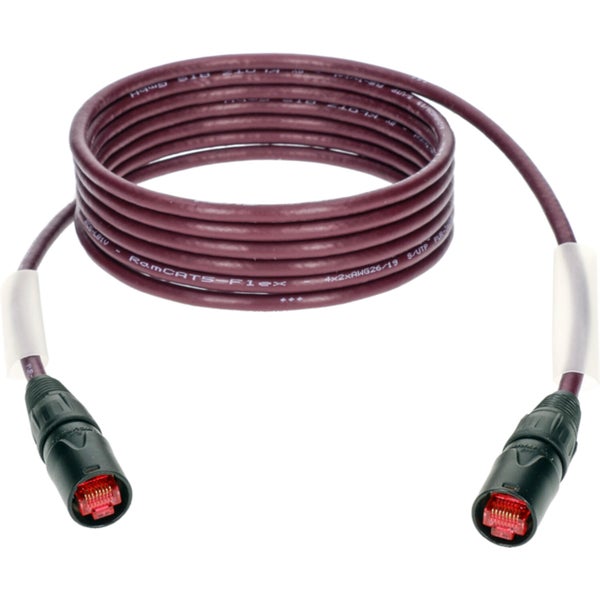

Klotz RC5EE030V Network cable with etherCON connectors, 3 metres
Klotz
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 3.00 m
- Data plug type
- RJ-45 EtherCON (not the regular RJ45!)
- Type of URP cable/plug
- CAT5e
Weight and dimensions including packaging
- Weight
- 220 gr
- Dimensions
- 30,0 x 25,6 x 5,0 cm
Product specifications
- Quantity: 1
- Items included: 1x network cable
- Length: 3 m
- Cable type: RamCAT5, S/UTP
- Conductors: 4 x 2 x 0.15 mm² (AWG 26/19), 100 Ohm
- cable sheath: PUR
- Cable colour: claret violet
- Connector 1: etherCON RJ45 CAT5e
- Connector 2: etherCON RJ45 CAT5e
- connector housing: black
- Heat-shrink tubing: 2x transparent
- maximum bandwidth: 100 MHz
- minimum bend radius: 5x outer diameter
- outer diameter: 6.3 mm
- impedance: 100 Ω ± 15%
- Conduction resistance: < 130 Ω/km
- Capacitance per metre: 50 pF/m
- Operating temperature: -40°C to +85°C
- halogen-free: yes (in accordance with IEC 60754-1)
- weight: 0.05 kg/m
- Compatibility: Dante™, EtherSound™, AVB, CobraNet, RAVENNA, A-Net, Allen & Heath ACE/dSnake, Yamaha, Digigram
- item number: RC5EE030V
Choose your variant – Length: 3.00 m
Order before 10pm = in about 8 working days at home
Klotz RC5EE030V + Innox Snap 27
- Recommended price
- £45.73
- Now as combination for
- £45.00
- You save
- £0.73
Order before 10pm = in about 8 working days at home
Klotz RC5EE030V + Innox T-tie
- Recommended price
- £47.45
- Now as combination for
- £47.00
- You save
- £0.45
Order before 10pm = in about 8 working days at home
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 3.00 m
- Data plug type
- RJ-45 EtherCON (not the regular RJ45!)
- Type of URP cable/plug
- CAT5e
Weight and dimensions including packaging
- Weight
- 220 gr
- Dimensions
- 30,0 x 25,6 x 5,0 cm
Product specifications
- Quantity: 1
- Items included: 1x network cable
- Length: 3 m
- Cable type: RamCAT5, S/UTP
- Conductors: 4 x 2 x 0.15 mm² (AWG 26/19), 100 Ohm
- cable sheath: PUR
- Cable colour: claret violet
- Connector 1: etherCON RJ45 CAT5e
- Connector 2: etherCON RJ45 CAT5e
- connector housing: black
- Heat-shrink tubing: 2x transparent
- maximum bandwidth: 100 MHz
- minimum bend radius: 5x outer diameter
- outer diameter: 6.3 mm
- impedance: 100 Ω ± 15%
- Conduction resistance: < 130 Ω/km
- Capacitance per metre: 50 pF/m
- Operating temperature: -40°C to +85°C
- halogen-free: yes (in accordance with IEC 60754-1)
- weight: 0.05 kg/m
- Compatibility: Dante™, EtherSound™, AVB, CobraNet, RAVENNA, A-Net, Allen & Heath ACE/dSnake, Yamaha, Digigram
- item number: RC5EE030V
Product information
Product no: 9000-0142-4625
General
The Klotz RC5EE030V is a 3-metre professional RamCAT network cable, designed for intensive mobile use on stage and on the move. Thanks to its flexible and robust PUR sheath and etherCON connectors, this cable is ideally suited for applications such as Dante™, AVB, EtherSound™ and other audio networks. The cable has been tested by companies including Yamaha, Digigram and Allen & Heath, and offers reliable performance up to 100 metres. Supplied with transparent heat-shrink sleeves for custom labelling.
