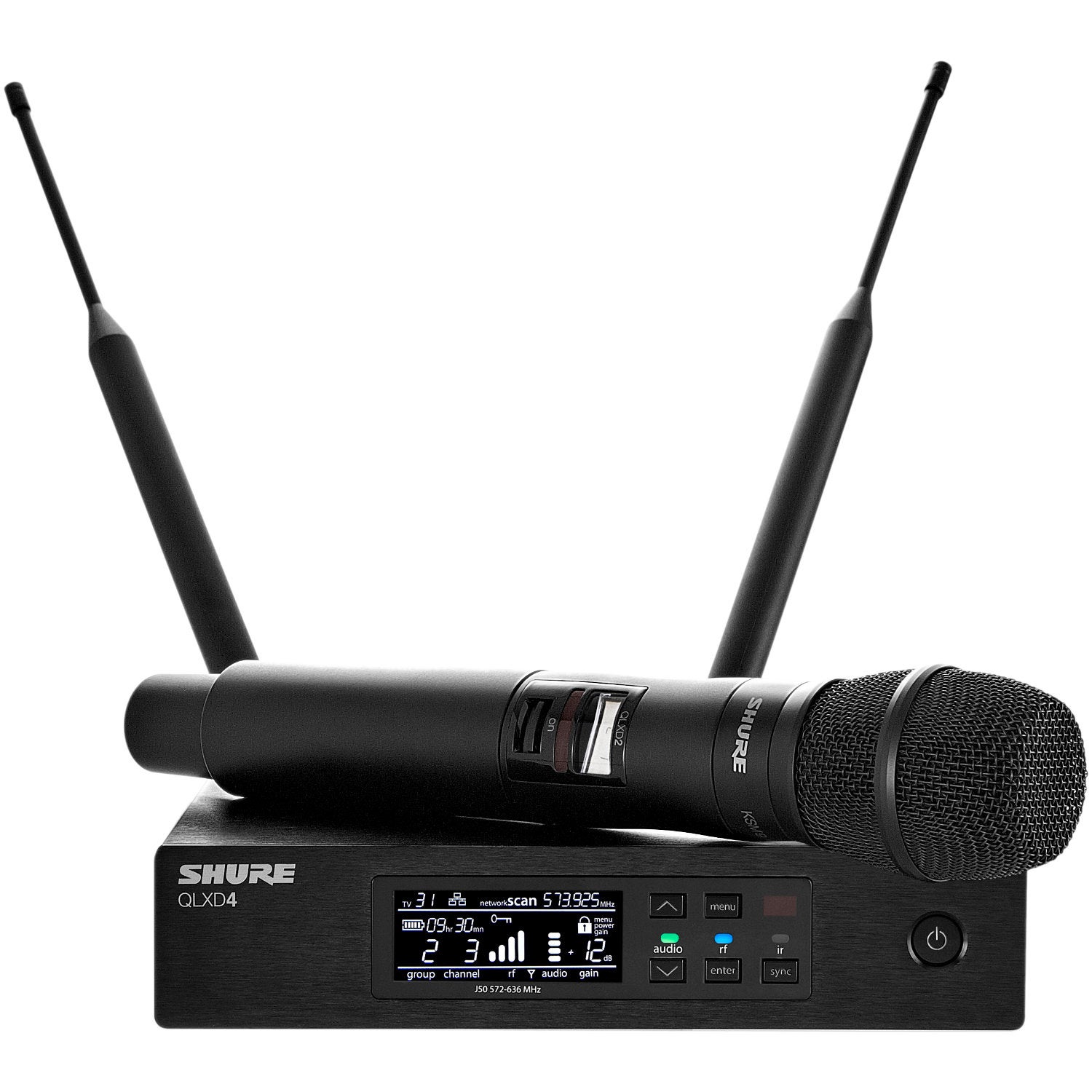

Shure QLXD24E/KSM9-G51 (470-534 MHz) Wireless Handheld Mic

5 / 5
Shure QLXD24E/KSM9-G51 (470-534 MHz) Wireless Handheld Mic

Discontinued

This product can no longer be ordered

Specifications

Product features

Number of microphones
1 microphone
Battery type
AA, Shure battery
Battery life (approx.)
9 hours
Frequency suitable for Belgium
Yes, no licence required
Frequency suitable for Netherlands
Yes, no licence required
Frequency suitable for UK
Yes, with standard licence
Worldwide frequency use
No
Frequency band
Shure G51 (470 - 534 MHz)
Channel
21 (470 - 478 MHz), 22 (478 - 486 MHz), 23 (486 - 494 MHz), 24 (494 - 502 MHz), 25 (502 - 510 MHz), 26 (510 - 518 MHz), 27 (518 - 526 MHz), 28 (526 - 534 MHz)
Maximum frequency
20 - 20.9 kHz
Minimum frequency
50 - 59 Hz
Polar pattern
Cardioid, super cardioid
Switchable frequencies
Yes
Analogue audio output type
Unbalanced line out (TS jack), balanced line out (XLR), balanced microphone out (XLR)
Type of frequency band
470 - 499 MHz, 500 - 599 MHz
Transmission power
10 mW

Weight and dimensions including packaging

Weight
3,0 kg
Dimensions
50,0 x 44,0 x 11,0 cm

Product specifications

  • wireless handheld system
  • frequency band: G51 (470 - 534 MHz)
  • consists of:
    • handheld (KSM9)
    • receiver (QLXD4)
  • digital system
  • ideal for medium-sized applications
  • easy installation and controls
  • 22 systems per 8MHz channel
  • selectable frequencies: up to 2,880
  • easy synchronisation of transmitter and receiver
  • over 60 preset channels per frequency band (region-dependent)
  • Automatic Channel Scan, Network Scan and infrared synchronisation
  • AES-256 encryption
  • tuning bandwidth: 64 MHz
  • predictive digital diversity switch
  • frequency range: 20 Hz - 20 kHz (microphone dependent)
  • Ethernet communication for multiple receivers
  • compatible with Shure Wireless Workbench 6 software (PC/Mac)
  • monitoring and controls with mobile iOS devices via ShurePlus Channels app
  • including:
  • power adapter
  • manual
  • rackmount kit
  • 2x BNC bulkhead adapter
  • 2x BNC cable
  • 2x AA battery

QLXD4 receiver

  • backlit LCD display
  • LED meters for audio and RF signals with peak indication
  • detachable antenna
  • outputs: XLR and 6.3mm jack
  • robust housing, brushed aluminium
  • 19-inch rack-mountable (half-rack size)
  • 2 antenna connectors (antennas included)
  • Ethernet connector
  • power supply: PS23E (included)

KSM 9

  • pickup pattern: cardioid & super-cardioid
  • capsule: condenser
  • 24-bit audio quality
  • frequency range: 50 Hz - 20 kHz
  • easy to link via infrared
  • rugged metal housing
  • illuminated LCD display for easy navigation

Alternative items

Specifications

Product features

Number of microphones
1 microphone
Battery type
AA, Shure battery
Battery life (approx.)
9 hours
Frequency suitable for Belgium
Yes, no licence required
Frequency suitable for Netherlands
Yes, no licence required
Frequency suitable for UK
Yes, with standard licence
Worldwide frequency use
No
Frequency band
Shure G51 (470 - 534 MHz)
Channel
21 (470 - 478 MHz), 22 (478 - 486 MHz), 23 (486 - 494 MHz), 24 (494 - 502 MHz), 25 (502 - 510 MHz), 26 (510 - 518 MHz), 27 (518 - 526 MHz), 28 (526 - 534 MHz)
Maximum frequency
20 - 20.9 kHz
Minimum frequency
50 - 59 Hz
Polar pattern
Cardioid, super cardioid
Switchable frequencies
Yes
Analogue audio output type
Unbalanced line out (TS jack), balanced line out (XLR), balanced microphone out (XLR)
Type of frequency band
470 - 499 MHz, 500 - 599 MHz
Transmission power
10 mW

Weight and dimensions including packaging

Weight
3,0 kg
Dimensions
50,0 x 44,0 x 11,0 cm

Product specifications

  • wireless handheld system
  • frequency band: G51 (470 - 534 MHz)
  • consists of:
    • handheld (KSM9)
    • receiver (QLXD4)
  • digital system
  • ideal for medium-sized applications
  • easy installation and controls
  • 22 systems per 8MHz channel
  • selectable frequencies: up to 2,880
  • easy synchronisation of transmitter and receiver
  • over 60 preset channels per frequency band (region-dependent)
  • Automatic Channel Scan, Network Scan and infrared synchronisation
  • AES-256 encryption
  • tuning bandwidth: 64 MHz
  • predictive digital diversity switch
  • frequency range: 20 Hz - 20 kHz (microphone dependent)
  • Ethernet communication for multiple receivers
  • compatible with Shure Wireless Workbench 6 software (PC/Mac)
  • monitoring and controls with mobile iOS devices via ShurePlus Channels app
  • including:
  • power adapter
  • manual
  • rackmount kit
  • 2x BNC bulkhead adapter
  • 2x BNC cable
  • 2x AA battery

QLXD4 receiver

  • backlit LCD display
  • LED meters for audio and RF signals with peak indication
  • detachable antenna
  • outputs: XLR and 6.3mm jack
  • robust housing, brushed aluminium
  • 19-inch rack-mountable (half-rack size)
  • 2 antenna connectors (antennas included)
  • Ethernet connector
  • power supply: PS23E (included)

KSM 9

  • pickup pattern: cardioid & super-cardioid
  • capsule: condenser
  • 24-bit audio quality
  • frequency range: 50 Hz - 20 kHz
  • easy to link via infrared
  • rugged metal housing
  • illuminated LCD display for easy navigation
bax-shop.uk | B-stock

Product information

Product no: 9000-0014-2615

General

The Shure KSM9 is a special microphone that is equipped with a condenser capsule with a switchable pickup pattern, so that it can be attuned to its direct environment. Furthermore, the QLXD24/KSM9 set can be used wirelessly. As the QLX-D4 receiver transmits the signal digitally, the sound quality is excellent! Together with the KSM9 microphone, it forms a great-sounding duo that can last for up to 9 hours on one charge and has a range of 100 metres. Linking the microphone and receiver is very easy thanks to a smart infrared system.

Shure QLXD24/KSM9 G51: Wireless Studio Quality

Compared to analogue systems, this QLXD24/KSM9 G51 system allows for the simultaneous use of more microphones, thanks to the narrower bandwidth of the digital signal. This makes the set ideal for larger productions. The monitoring of the receiver can be done via your computer or iOS device via LAN. The set uses the frequencies 470 - 534 MHz. Moreover, this is a very complete set, so that you can get started right away!
