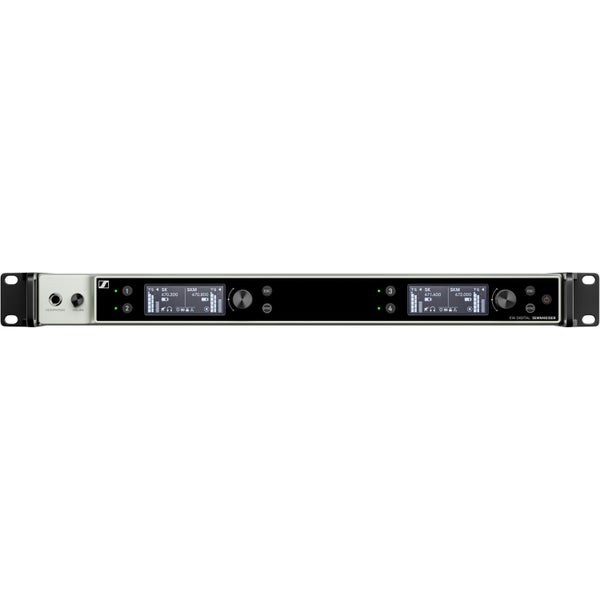

Sennheiser EW-DX EM 4 DANTE (R1-9) Four-channel Dante UHF rack-mounted receiver.

no reviews yet
Bargain Buy
Sennheiser EW-DX EM 4 DANTE (R1-9) Four-channel Dante UHF rack-mounted receiver.

Specifications

Product features

Sustainable product
Not specified
Minimum frequency
Not specified
Maximum frequency
Not specified
Polar pattern
Not applicable
Includes headset
No
Switchable frequencies
Not specified
Analogue audio output type
Not specified
Battery type
Not applicable
Battery life (approx.)
Not specified
Channel
Not applicable
Frequency band
Sennheiser R1-9 (520 - 607.8 MHz)
Type of frequency band
Not specified
Transmission power
Not specified
Frequency suitable for Netherlands
Not specified
Frequency suitable for Belgium
Not specified
Frequency suitable for UK
Not specified
Worldwide frequency use
Not specified
Bandwidth
88 to 96 MHz
Digital connection(s)
Lightning
Number of wireless system channels
4
Number of microphones
0 microphones

Weight and dimensions including packaging

Weight
6,0 kg
Dimensions
55,0 x 40,0 x 15,0 cm

Product specifications

  • Product type: digital wireless receiver with Dante
  • Number of channels: 4
  • Rack size: 19-inch full-rack (1U)
  • Housing: metal housing
  • Compatibility: for Sennheiser Evolution Wireless Digital handheld, bodypack and tabletop transmitters
  • Frequency range (R1–9): 520,000 – 607,800 MHz
  • switching bandwidth: up to 88 MHz
  • Channel spacing: equidistant channel spacing (intermodulation-free operation)
  • Standard mode: 600 kHz spacing, up to 146 channels
  • Link Density (LD) mode: 300 kHz spacing, up to 293 channels
  • Codec: Sennheiser Performance Audio Codec (SePAC)
  • latency: 1.9 ms
  • input dynamic range: 144 dB
  • Encryption: AES-256
  • Dante security: Dante Media Encryption
  • network ports: 4x modular, assignable per port as control, control + Dante prim, control + Dante sec, Dante prim, Dante sec
  • Ethernet: IPv4 and IPv6
  • Antenna provision: integrated antenna splitter with antenna power supply
  • Antenna loop-through: loop-through for daisy chaining
  • Expandability: daisy chain up to 16 channels (4x EW-DX EM 4)
  • Autoscan: scans the environment and sets frequencies with equidistant spacing
  • Link Quality Indicator (LQI): displays link quality independently of RF levels
  • Remote control: via Sennheiser Control Cockpit and Wireless System Manager, plus third-party media control systems via plug-in
  • Software support: works with SoundBase software
  • Bluetooth: Bluetooth Low Energy (BLE) for the Smart Assist App, up to 25 m
  • Display/controls: OLED display, jog wheel and control buttons
  • Headphone monitoring: selective headphone output with volume control on the front panel
  • Headphone power: 2 × 70 mW @ 32 Ω
  • Menu options: custom frequency list, selectable sync parameter, walk test
  • Power supply: internal auto-switching PSU
  • Mains connection: IEC
  • Power consumption: max. 37 W
  • Dimensions: 483 x 44 x 373 mm
  • Worldwide use: yes, frequencies subject to local RF regulations
  • Included: 1x Sennheiser EW-DX EM 4 DANTE receiver (R1-9)
Recommended price £3,272 -14%
£2,799 incl. 20% VAT
Online stock status: In stock at supplier

Order before 10pm = in about 3 working days at home

£139.95 one-time fee
Wishlist
Sennheiser EW-DX EM 4 DANTE (R1-9) Four-channel Dante UHF rack-mounted receiver. Shure WA570A neoprene bodypack transmitter belt pouch

Sennheiser EW-DX EM 4 DANTE (R1-9) + Shure WA570A

Recommended price
£2,846.00
Now as combination for
£2,843.00
You save
£3.00
In stock at supplier

Order before 10pm = in about 3 working days at home

Sennheiser EW-DX EM 4 DANTE (R1-9) Four-channel Dante UHF rack-mounted receiver. Devine MIC100/1.5 XLR Microphone/Signal Cable, 1.5m

Sennheiser EW-DX EM 4 DANTE (R1-9) + Devine MIC100/1.5

Recommended price
£2,803.26
Now as combination for
£2,803.00
You save
£0.26
In stock at supplier

Order before 10pm = in about 3 working days at home

Ordered before 10pm: Delivered in 2 Working Days (if in stock)

Free delivery from £50

Lowest Price Guarantee

Free Returns

3-Year Warranty

30-Day Trial Period

Specifications

Product features

Sustainable product
Not specified
Minimum frequency
Not specified
Maximum frequency
Not specified
Polar pattern
Not applicable
Includes headset
No
Switchable frequencies
Not specified
Analogue audio output type
Not specified
Battery type
Not applicable
Battery life (approx.)
Not specified
Channel
Not applicable
Frequency band
Sennheiser R1-9 (520 - 607.8 MHz)
Type of frequency band
Not specified
Transmission power
Not specified
Frequency suitable for Netherlands
Not specified
Frequency suitable for Belgium
Not specified
Frequency suitable for UK
Not specified
Worldwide frequency use
Not specified
Bandwidth
88 to 96 MHz
Digital connection(s)
Lightning
Number of wireless system channels
4
Number of microphones
0 microphones

Weight and dimensions including packaging

Weight
6,0 kg
Dimensions
55,0 x 40,0 x 15,0 cm

Product specifications

  • Product type: digital wireless receiver with Dante
  • Number of channels: 4
  • Rack size: 19-inch full-rack (1U)
  • Housing: metal housing
  • Compatibility: for Sennheiser Evolution Wireless Digital handheld, bodypack and tabletop transmitters
  • Frequency range (R1–9): 520,000 – 607,800 MHz
  • switching bandwidth: up to 88 MHz
  • Channel spacing: equidistant channel spacing (intermodulation-free operation)
  • Standard mode: 600 kHz spacing, up to 146 channels
  • Link Density (LD) mode: 300 kHz spacing, up to 293 channels
  • Codec: Sennheiser Performance Audio Codec (SePAC)
  • latency: 1.9 ms
  • input dynamic range: 144 dB
  • Encryption: AES-256
  • Dante security: Dante Media Encryption
  • network ports: 4x modular, assignable per port as control, control + Dante prim, control + Dante sec, Dante prim, Dante sec
  • Ethernet: IPv4 and IPv6
  • Antenna provision: integrated antenna splitter with antenna power supply
  • Antenna loop-through: loop-through for daisy chaining
  • Expandability: daisy chain up to 16 channels (4x EW-DX EM 4)
  • Autoscan: scans the environment and sets frequencies with equidistant spacing
  • Link Quality Indicator (LQI): displays link quality independently of RF levels
  • Remote control: via Sennheiser Control Cockpit and Wireless System Manager, plus third-party media control systems via plug-in
  • Software support: works with SoundBase software
  • Bluetooth: Bluetooth Low Energy (BLE) for the Smart Assist App, up to 25 m
  • Display/controls: OLED display, jog wheel and control buttons
  • Headphone monitoring: selective headphone output with volume control on the front panel
  • Headphone power: 2 × 70 mW @ 32 Ω
  • Menu options: custom frequency list, selectable sync parameter, walk test
  • Power supply: internal auto-switching PSU
  • Mains connection: IEC
  • Power consumption: max. 37 W
  • Dimensions: 483 x 44 x 373 mm
  • Worldwide use: yes, frequencies subject to local RF regulations
  • Included: 1x Sennheiser EW-DX EM 4 DANTE receiver (R1-9)
bax-shop.uk | B-stock

Product information

Product no: 9000-0155-1268

General

The Sennheiser EW-DX EM 4 DANTE (R1-9) is a four-channel, full-rack (19-inch) digital receiver with an internal power supply and Dante, designed for Evolution Wireless Digital handheld, bodypack and table-top transmitters.

Thanks to 88 MHz switching bandwidth, AutoScan and equidistant channel spacing, you can work quickly and without intermodulation, across up to 293 channels. The SePAC codec keeps wireless latency low at 1.9 ms.

For integration into larger setups, you get four flexibly assignable network ports, IPv4/IPv6 and comprehensive remote control, with AES-256 and Dante Media Encryption for maximum security.

Bax Music Warranty This product comes with a 3-year warranty.
