Shure SLXD15/UL4 Wireless Clip-on Microphone System S50 (823-865 MHz)

no reviews yet write a review

Discontinued, this product can no longer be ordered.

No alternatives found

Not sure if the Shure SLXD15/UL4 Wireless Clip-on Microphone System S50 (823-865 MHz) is for you? Do a Choice Check. Start Choice Checker

Product information
Reviews (0)
Downloads (1)
News and items (1)

Shure SLXD15/UL4 Wireless Clip-on Microphone System S50 (823-865 MHz)
Product no: 9000-0122-2980 Bax Music Warranty: This product comes with a 3-year warranty.

General

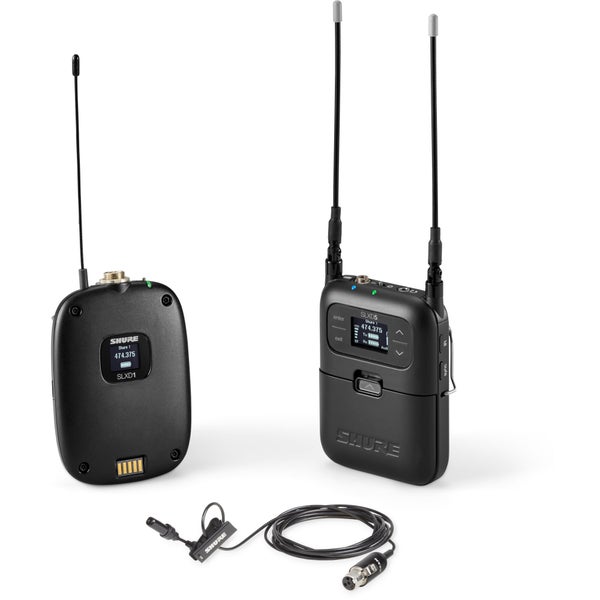

The Shure SLXD15/UL4B wireless system comes complete with a Uniplex UL4 clip-on microphone that's simply plugged into the included SLXD1 bodypack transmitter, which is so small and slim, you'll barely notice you're wearing it.

The Shure SLXD5 Receiver

The SLXD5 receiver included with this system has an extremely compact design and is powered by AA batteries or the compatible Shure SB 903 rechargeable battery (not included), completing a fully mobile and cable-free kit that's ideal for journalists and film makers. This receiver can easily be slipped inside the free pocket of any sound technician's bag and, if you're a one-person crew, it can even be secured to your camera using the included cold-shoe mount.

Shure SLX Digital Audio

As soon as you compare the audio quality of older analogue wireless systems with digital models, you're looking at a huge leap forward. Via this smart, Shure-developed digital system, the 24-bit audio resolution guarantees a massive dynamic range of no-less-than 118 decibels, removing any chance of noise. And the boosted audio quality is not the only advantage, since the Shure SLXD system also uses the available bandwidth as efficiently as possible, meaning that multiple systems can be operated at the same time without fear of any issues.

Specifications

Product features

Number of wireless system channels	1
Number of microphones	1 microphone
Bandwidth	40 to 48 MHz
Battery type	rechargeable, AA
Battery life (approx.)	6 hours
Digital connection(s)	n/a
Sustainable product	not specified
Frequency suitable for Belgium	yes, no licence required
Frequency suitable for Netherlands	yes, no licence required
Frequency suitable for UK	yes, no licence required
Worldwide frequency use	yes, no licence required
Frequency band	Shure S50 (823 - 832 + 863 - 865 MHz)
Including lavalier microphone	yes
Includes microphone	yes
Channel	65 (822 - 830 MHz), ISM (863 - 865 MHz)
Maximum frequency	20 - 20.9 kHz
Minimum frequency	20 - 21 Hz
Polar pattern	cardioid
Switchable frequencies	yes
Analogue audio output type	unbalanced stereo line out (TRS mini-jack)
Type of camera microphone	lavalier microphone
Type of frequency band	800 - 899 MHz
Output connector	jack (6.3 mm stereo)
Transmission power	10 mW

Weight and dimensions including packaging

Weight (incl. packaging)	1,1 kg
Dimensions (incl. packaging)	42,0 x 21,0 x 8,0 cm

Product specifications

Shure SLXD15/DL4B
wireless clip-on lavalier microphone system
24-bit digital sound
set contents:
- SLXD5 mobile receiver
  - aluminium housing
  - audio connections:
  - line out (3.5mm TRS mini-jack)
  - headphone input (3.5mm TRS mini-jack)
  - dimensions: 107 x 68 x 25.3mm
- SLXD1 beltpack transmitter
  - audio input: 4-p mini XLR (TA4M)
  - dimensions: 98 x 68 x 25.5mm
- Uniplex UL4B clip-on lavalier microphone
- cold-shoe mount
- 3.5mm mini-jack cable
- 3.5mm mini-jack to XLRm cable

Write a review

There are no reviews for this product yet.

Description	Type	Language	Extension
Shure SLXD specificaties	Manual	Unknown

Shure Gets Mobile with the SLXD Portable Series

Monday 29 January 2024 By Kim | Bax Music

With the SLXD Portable Series, when Shure says wireless, they mean wireless. The all-new SLXD5 receiver doesn't even need a power socket. Whether you're a journalist, a film maker or a YouTuber, the professional quality of Shure SLXD Portable Series models will take the sound quality and your workflow to the next level.
