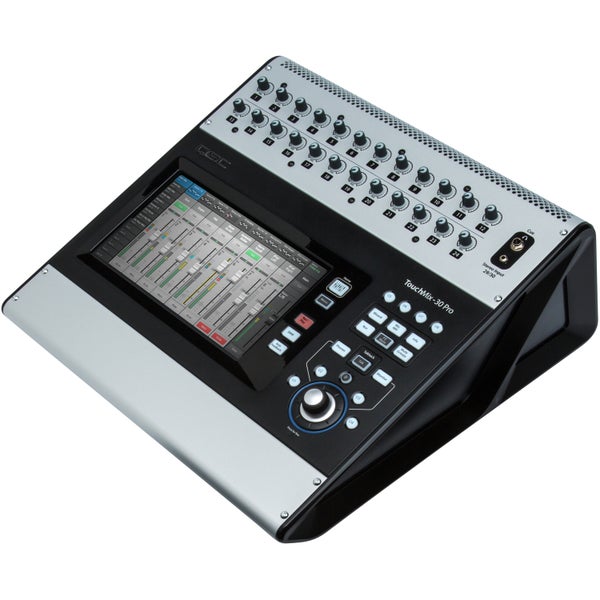

QSC Touchmix-30 Pro Digital Mixer

5 / 5
QSC Touchmix-30 Pro Digital Mixer

Discontinued

This product can no longer be ordered

Specifications

Product features

19 inches
19-inch rack mount (not included)
Number of analogue input channels
25 - 32
Number of analogue output channels
17 - 24
Number of channels
17-32
Number of microphone inputs
17 - 32
Digital snake
No
Sustainable product
Not specified
Dynamics
Compressor, gate
Equalizer
4-band, Master EQ
Input
Jack (3.5 mm stereo), jack (6.3 mm stereo), jack (6.3 mm) + XLR, Ethernet (RJ45), XLR, USB
Built-in audio interface
USB (multi track)
Built-in audio player
USB
Built-in effects
Yes
Insert connections
No
Network connections
None
Input level meters
Via built-in display, via iPad / iPhone / iPod, via Android Device
Remote control
Via iPad, via Android device, via Ethernet, via Wi-Fi
Connector position
Back
Type of display
Touch screen, colour
Expansion possibilities
Personal monitoring system, Wi-Fi dongle
Output connector
Jack (6.3 mm stereo), XLR (3-pin), Ethernet, USB connector
Mixer power
Power cable
Volume control
Knobs, via touchscreen

Weight and dimensions including packaging

Weight
11,5 kg
Dimensions
60,0 x 49,0 x 30,0 cm

Product specifications

  • digital mixer
  • equipped with 10-inch full-colour touch screen
  • wi-fi available via dongle or Ethernet
  • physical knobs for the most used controls
    • 32 channels
    • 4-band parametric EQ
    • 2-band shevling EQ
    • variable 24 dB/octave HPF and LPF, gate, compressor and delay
    • number of groups: 8 DCA, 8 mute, 8 subgroups (stereo linkable)
    • effects: 6 professional engines (120 presets / 99 user / 99 user scenes)
    • built-in pitch correction
    • Real Time Analyser (2x 1/3 octave)
    • number of recordable tracks: 32
    • sample frequency: 44.1 / 48 kHz
    • dynamic range: 105 dB
    • signal to noise ratio: -94 dB
    • THD: <0.005%, +4 dBu
    • frequency range: 20 Hz - 20 kHz (+/- 0.5 dB)
    • max input level: +16 dB (XLR mic/line), +26 dB (TRS mic/line), +24 dB (line)
    • maximum output level: +22 dBu (line)
    • switchable 48V phantom power per input
  • connectors:
    • 4x XLR/TRS combo inputs
    • 20x XLR inputs
    • 3x stereo (TRS jack)
    • 1x talkback (XLR female; 48V selectable)
    • 1x main out (XLR male)
    • 14x aux (XLR male)
    • 3x stereo aux (2x TRS jack, 1x TRS jack on top)
    • 1x stereo monitor (XLR male)
    • 1x stereo cue (TRS jack)
    • 2x stereo USB
    • 1x USB B (DAW)
    • 1x RJ45 (Ethernet)
    • 1x headphone (TRS jack on top)
    • power cable
  • dimensions: 460 x 429 x 190 mm
  • weight: 7.9 kg
  • including: power cable

Alternative items

Specifications

Product features

19 inches
19-inch rack mount (not included)
Number of analogue input channels
25 - 32
Number of analogue output channels
17 - 24
Number of channels
17-32
Number of microphone inputs
17 - 32
Digital snake
No
Sustainable product
Not specified
Dynamics
Compressor, gate
Equalizer
4-band, Master EQ
Input
Jack (3.5 mm stereo), jack (6.3 mm stereo), jack (6.3 mm) + XLR, Ethernet (RJ45), XLR, USB
Built-in audio interface
USB (multi track)
Built-in audio player
USB
Built-in effects
Yes
Insert connections
No
Network connections
None
Input level meters
Via built-in display, via iPad / iPhone / iPod, via Android Device
Remote control
Via iPad, via Android device, via Ethernet, via Wi-Fi
Connector position
Back
Type of display
Touch screen, colour
Expansion possibilities
Personal monitoring system, Wi-Fi dongle
Output connector
Jack (6.3 mm stereo), XLR (3-pin), Ethernet, USB connector
Mixer power
Power cable
Volume control
Knobs, via touchscreen

Weight and dimensions including packaging

Weight
11,5 kg
Dimensions
60,0 x 49,0 x 30,0 cm

Product specifications

  • digital mixer
  • equipped with 10-inch full-colour touch screen
  • wi-fi available via dongle or Ethernet
  • physical knobs for the most used controls
    • 32 channels
    • 4-band parametric EQ
    • 2-band shevling EQ
    • variable 24 dB/octave HPF and LPF, gate, compressor and delay
    • number of groups: 8 DCA, 8 mute, 8 subgroups (stereo linkable)
    • effects: 6 professional engines (120 presets / 99 user / 99 user scenes)
    • built-in pitch correction
    • Real Time Analyser (2x 1/3 octave)
    • number of recordable tracks: 32
    • sample frequency: 44.1 / 48 kHz
    • dynamic range: 105 dB
    • signal to noise ratio: -94 dB
    • THD: <0.005%, +4 dBu
    • frequency range: 20 Hz - 20 kHz (+/- 0.5 dB)
    • max input level: +16 dB (XLR mic/line), +26 dB (TRS mic/line), +24 dB (line)
    • maximum output level: +22 dBu (line)
    • switchable 48V phantom power per input
  • connectors:
    • 4x XLR/TRS combo inputs
    • 20x XLR inputs
    • 3x stereo (TRS jack)
    • 1x talkback (XLR female; 48V selectable)
    • 1x main out (XLR male)
    • 14x aux (XLR male)
    • 3x stereo aux (2x TRS jack, 1x TRS jack on top)
    • 1x stereo monitor (XLR male)
    • 1x stereo cue (TRS jack)
    • 2x stereo USB
    • 1x USB B (DAW)
    • 1x RJ45 (Ethernet)
    • 1x headphone (TRS jack on top)
    • power cable
  • dimensions: 460 x 429 x 190 mm
  • weight: 7.9 kg
  • including: power cable
bax-shop.uk | B-stock

Product information

Product no: 9000-0029-7993

General

QSC sets a new standard for compact, digital mixers with the Touchmix-30 Pro. It has a 10-inch touch screen, 32 channels and an intuitive workflow that makes it easy to operate. Thanks to its clear layout, 24 mic/line inputs and 3 stereo jacks, recording even the largest of bands is no problem. The recorder section features two USB A, one USB B and an Ethernet connection which means you can record up to 32 tracks at once.

Controls

The TM-30's interface has been kept simple so that it can be operated by almost anyone. There are 24 gain control knobs that can also be adjusted using the touch screen. On the top right, there's a headphone socket and a stereo input for an auxiliary cable. Underneath those are a number of controls for the functions that get used the most. The large red knob can be pushed as well as turned and is capable of controlling different functions. This section is easy to master making the TM-30 easy for anyone to use.

Apps and wizards

Download the Touchmix Control application via the appstore, activate a wi-fi connection via the RJ45 port, and you can quickly and easily adjust all of the settings using an iPad, which gives you the freedom to walk around the venue to perfect the sound from any location. The TM-30 also has a number of automatic wizards on board that can help you to control issues with feedback, analyse rooms thanks to two Real Time analysers, and stack and route channels for perfect sound settings. There are even six effects processors on board. Mixing has never been so simple!

Tips or comments about this product

  • Let op: tablet en laptop niet meegeleverd.

Bax Music Warranty This product comes with a 5-year warranty when you register it with QSC within 30 days of purchase. If the product is not registered it has a 3-year warranty.

Reviews (3)

5.0
3 reviews

Rating

5 stars 3 4 stars 0 3 stars 0 2 stars 0 1 star 0
A review can no longer be written about this item

Reviews from other countries

5 / 5

QSC Touchmix-30 Pro Digital Mixer

wat een prachtige mixer , ik ken alle functies nog niet , maar dit moet je meemaken ! zo simpel en goed , je hoeft geen technicus te zijn om nu een band te mixen , de vele auto functies zorgen al snel voor een kloppend geluid
helemaal in combinatie met m'n qsc speakers een perfecte keuze

De service van BAX ook weer helemaal top , zelfs de tablet stand en rackmount (niet meer leverbaar) werden weer actueel in de webshop geplaatst , zodat ik deze nog snel ff kon bestellen

bedankt baxshop team
 |
This review was automatically translated from Dutch.
5 / 5

QSC Touchmix-30 Pro Digital Mixer

Prima mengpaneel met een zeer makkelijke workflow en goed geluid. Erg tevreden over.
 |
This review was automatically translated from Dutch.
5 / 5

QSC Touchmix-30 Pro Digital Mixer

Deze mixer maakt alle verwachtingen waar, het is echt een ‘muzikantenmixer’, terwijl ‘technici’ liever faders hebben.

Het is een beetje als de tegenstelling: ios vs android, apple vs windows. Ik kies altijd voor gebruiksgemak en simpele workflow aangezien er ook muziek gemaakt dient te worden.

Aanrader voor iedereen die de overstap van analoog naar digitaal te maken.
 |
This review was automatically translated from Dutch.
