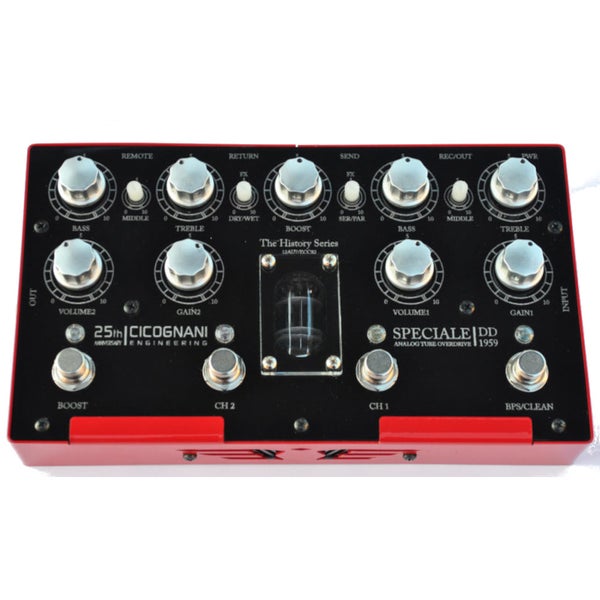

Cicognani Speciale Double Decker 1959 Overdrive Pedal
Product no: 9000-0091-2118 Bax Music Warranty: This product comes with a 3-year warranty.

General

Cramming the sound of a vintage amplifier dosed up with some hefty overdrive into a tight dual stompbox, the Cicognani Speciale Double Decker 1959 supplies a mass of sonic aids as well as blistering valve-driven sound. The two channels can be set up to trigger everything from a light crunch to full-out leads, while the extra clean channel and solo boost serve as handy functions on the side.

The Cicognani Speciale Double Decker 1959: Versatile Inspiration

A fully loaded control panel provides in-depth control over the output of this overdrive pedal, and when it's teamed up with your amp, you're set up with two channels plus solo mode, and three channels plus solo mode when hooked up directly to an audio interface and recording software. The built-in FX loop ensures seamless integration with the rest of your rig, and for maximum versatility and ease, the solo boost can still be activated after the true-bypass switch has been hit.

Specifications

Product features

Adapter included	no
Centre positive/negative	centre negative
Sustainable product	not specified
Mini pedal	no
True bypass	yes
Power supply plug	barrel 2.1 mm (inner diameter)
Type of distortion	overdrive
Variable voltage	no
Can be powered by battery	no
Voltage	9 V, 12 V
Equipped with tube	yes

Weight and dimensions including packaging

Weight (incl. packaging)	1,4 kg
Dimensions (incl. packaging)	25,5 x 15,0 x 7,5 cm

Product specifications

Cicognani Speciale 'Double Decker' 1959
overdrive pedal
power in: 9 to 12V DC (Centre Negative)
power consumption: 300 to max. 500mA
S/N ratio: 58dB
max. gain: +/- 99 dB
boost: 0 to +6db
input impedance: <1M Ohm
output Impedance: 100 kOhms
send impedance: 47 kOhms
return impedance: 47 kOhms
rec out impedance: <47K Ohm
serial Loop FX: 0db
parallel Loop FX: +4db
max. return signal: 1Vpp
max. rec out signal: 0.5Vpp
weight: 0.7 kg
dimensions: 220 x 130 x 50mm (8.6" x 5.1" x 1.96")
ports: main power (DC 2.1mm)
guitar input: 6.3mm mono jack
amp output: 6.3mm mono jack
send/return/rec out: 6.3mm mono jack
bypass function: 1) Full Range - 2) Equalized (Rec Out)
controls CH1: Max Gain (70db) Volume (+10db)
tone stack CH1: Treble (6500Hz +/- 10db) Middle (820Hz +/- 8db) Bass (110Hz +/- 8db)
controls CH2: 1/2 12AU7B Max Gain CH2 (100db) Volume (+10db)
tone stack CH2: Treble (6500Hz +/- 10db) Middle (820Hz +/- 8db) Bass (110Hz +/- 8db)
control boost: level (0/+6db) linear (Full Range)
rec out emulator: SM57 mike and 2X12" V30 speaker
