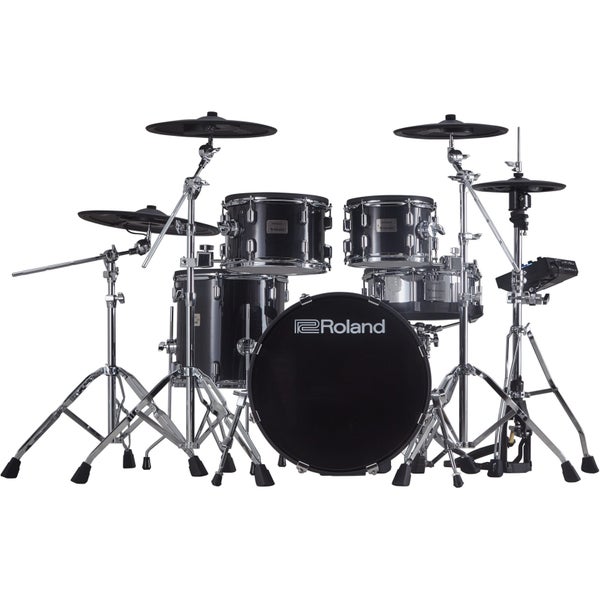

Roland VAD506 V-Drums Acoustic Design Electronic Drum Kit

Roland VAD506 V-Drums Acoustic Design Electronic Drum Kit
Product no: 9000-0059-7506

Product information

General

While a lot of electronic kits might leave you wanting that pure acoustic drum kit feel and response, the incomparable Roland V-Drums VAD506 Acoustic Design kit does precisely the opposite. Developed and configured to mimic an acoustic kit in terms of look and feel, as well as sound, this future-thinking kit comes with deep shells and a setup that's definitely not designed for quiet little home-rehearsals that won't bug the neighbours. This is a stage ready beat machine ready to take on the future of drumming.

Roland VAD506 Acoustic Design V-Drums

So, what can you expect from the Roland VAD506 Acoustic Design kit? On the face of it: a 5-piece kit, complete with wooden shells and a double-braced hardware pack. Which ... is true: a 10, 12, and 14-inch tom, a 14-inch snare and a 20-inch kick come included. But this is the PD-140DS digital snare and KD-200-MS Digital kick drum, and while each shell has been wrapped in a Midnight Sparkle finish, we've only covered the looks.

The Roland TD-27

Besides the shell-set, you get a 14-inch crash and a 16-inch crash-ride, but the cymbal pad that really steals the show is the outstanding 18-inch CY-18DR ride. This multi-sensor triggered cymbal has an unbelievable dynamic range alongside incredibly accurate input detection. The whole kit is driven by the Roland TD-27 sound module which, in turn, is driven by 'Prismatic Sound Modeling' - a 'neural' configuration lifted from the flagship TD-50 module.

Utterly Modern

What else can you expect? Well, since Roland seemingly designed this kit for the future, it comes with further features like Bluetooth so that audio can be streamed from a smartphone or computer. Your own WAV samples can be imported from an SD card and, since the VAD506 also comes with an integrated 18-channel USB audio interface, you have a professional-grade recording and performing machine under your sticks.

Tips or comments about this product

Please note: This electronic drum kit does not come with a stool (throne), snare drum stand, hi-hat stand or bass drum pedal included.

Specifications

Product features

Number of cymbals (excl. hi-hats): 3
Number of toms: 3
Includes bass drum pedal: No
Includes drum stool: No
Drumsticks included: No
Includes headphones: No
Rack included: Not applicable
Built-in speakers: No
Mesh-head drum pads: Yes, snare drum + toms
Type of Electronic drum kit: Full-size

Weight and dimensions including packaging

Weight: 52,0 kg
Dimensions: 180,0 x 140,0 x 120,0 cm

Product specifications

Roland VAD506 Acoustic Design V-Drums
Electronic Drum Kit
configuration:
- snare: PD-140DS x 1
- tom1: PDA100-MS x 1
- Tom2: PDA120-MS x 1
- Tom3: PDA140F-MS x 1
- hi-hat: VH-10 x 1
- crash: CY-14C-T x 1
- crash 2: CY-16R x 1
- ride: CY-18DR x 1
- kick: KD-200-MS x 1
- 2x 'Drum Combination' stand
- 1x boom stand
- 1x universal clamp
module: Roland TD-27
- connections:
  - 1x trigger input connector DB-25 (for kick, snare, tom1, tom2, tom3, hi-hat, crash1, ride, ride bell, hi-hat)
  - 4x trigger-in jack sockets
  - 3x digital trigger-in sockets (USB-A)
  - master outputs
  - direct outputs
  - headphone output
  - mix-in AUX input (jack)
  - MIDI I/O/THRU ports
  - USB computer port: USB B
  - Foot SW jack port
  - DC-in power input
- drum kits: 100 (55 presets)
- instruments: 728
- max. user-samples: 500 (including factory samples)
- user-sample file format: WAV (44.1 kHz, 16/24 bits)
- effects:
  - pad compressor
  - pad equalizer
  - overhead mic simulator
  - room/reverb
  - multi-effects : 3 systems, 30 types
  - master compressor
  - master equalizer
- bluetooth: supported version 4.2, profiles: A2DP & GATT, Codec: SBC
- media player (SD-card): supports WAV (44.1 kHz, 16/24 bits) & MP3
- recorder: records in real-time, max. recording time of 60 minutes, exports in WAV 44.1 kHz, 16 bits
- display: LCD, 256 x 80 dots
- external memory: SD-card (SDHC also supported)
- USB audio:
  - possibility to record up to 28 channels
  - sample rate: max. 44.1 KHz
  - sample rate with converter: 96 kHz, 48 kHz
  - playback: 4x channels
- power supply (DC 9 V)
included accessories:
- sound module mounting clamp
- power supply
- special connection cable
- connection cable (Crash2)
- drum key
- assembly manual
- user manual

Service promise

Bax Music Warranty This product comes with a 3-year warranty.

This product comes with a 3-year warranty.
