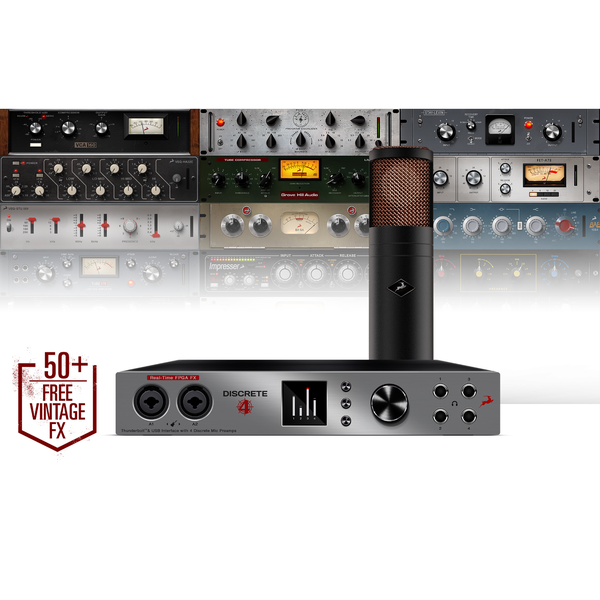

Antelope Audio Discrete 4 + Edge + Premium FX Collection modelling microphone bundle

no reviews yet
Antelope Audio Discrete 4 + Edge + Premium FX Collection modelling microphone bundle

Discontinued

This product can no longer be ordered

Specifications

Product features

19 inches
No
Tube microphone
No
Studio bundle components
Audio interface, microphone
Computer ports
USB, Thunderbolt
Phantom power
Yes
Microphone sensitivity (dBV/PA)
Not applicable
Microphone impedance
Not specified
Low-cut filter
No
Maximum sample rate
192 kHz
Maximum SPL
Not specified
Maximum frequency
20 - 20.9 kHz
Included data cable
USB cable
Included software
None
Microphone accessories
Shock mount, pop filter, cable
Minimum frequency
20 - 21 Hz
Pad switch
No
Polar pattern
Multi pattern
Software included
No
Stereo
No
Type of microphone
Condenser set

Weight and dimensions including packaging

Weight
5,5 kg
Dimensions
42,0 x 34,0 x 16,0 cm

Product specifications

  • Thunderbolt/USB audio interface
  • inputs:
    • 4x TRS/XLR
    • 1x word clock
    • 1x S/PDIF
    • 1x ADAT (16x channels)
  • outputs:
    • 1x Wordclock
    • 1x S/PDIF
    • 1x ADAT (16x channels)
    • 1 x monitor (left and right)
    • 4x line out
    • 4x headphones
  • built-in FPGA effects (AFX)
  • total incoming audio channels: 14
  • total outgoing audio channels: 20
  • sample rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • USB I/O: 24x channels, 24-bit
  • Thunderbolt I/O: 32x channels
  • Acoustically Focused Clocking (AFC) jitter management
  • talkback function
  • create up to 4 separate headphone mixes
  • store and load presets for easy workflow (mix/routing/effects)
  • Discrete 4 app iOS and Android for easy management
  • power consumption: 15 W
  • dimensions: 261 x 44 x 208 mm
  • weight: 1.7 kg
  • included:
    • power adapter

Edge modelling microphone:

  • large-diaphragm modelling microphone
  • diaphragm: condenser, dual gold-spattered diaphragm (10 micron)
  • frequency response: 20 Hz - 20 kHz
  • sensitivity: -36 dB (-1 - +3 dB)
  • THV + N: -116 dB
  • power supply: +48V DC phantom power
  • connector: 5-pin XLR
  • included:
    • splitter cable
    • shock mount
    • pop filter

No alternatives found

Specifications

Product features

19 inches
No
Tube microphone
No
Studio bundle components
Audio interface, microphone
Computer ports
USB, Thunderbolt
Phantom power
Yes
Microphone sensitivity (dBV/PA)
Not applicable
Microphone impedance
Not specified
Low-cut filter
No
Maximum sample rate
192 kHz
Maximum SPL
Not specified
Maximum frequency
20 - 20.9 kHz
Included data cable
USB cable
Included software
None
Microphone accessories
Shock mount, pop filter, cable
Minimum frequency
20 - 21 Hz
Pad switch
No
Polar pattern
Multi pattern
Software included
No
Stereo
No
Type of microphone
Condenser set

Weight and dimensions including packaging

Weight
5,5 kg
Dimensions
42,0 x 34,0 x 16,0 cm

Product specifications

  • Thunderbolt/USB audio interface
  • inputs:
    • 4x TRS/XLR
    • 1x word clock
    • 1x S/PDIF
    • 1x ADAT (16x channels)
  • outputs:
    • 1x Wordclock
    • 1x S/PDIF
    • 1x ADAT (16x channels)
    • 1 x monitor (left and right)
    • 4x line out
    • 4x headphones
  • built-in FPGA effects (AFX)
  • total incoming audio channels: 14
  • total outgoing audio channels: 20
  • sample rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • USB I/O: 24x channels, 24-bit
  • Thunderbolt I/O: 32x channels
  • Acoustically Focused Clocking (AFC) jitter management
  • talkback function
  • create up to 4 separate headphone mixes
  • store and load presets for easy workflow (mix/routing/effects)
  • Discrete 4 app iOS and Android for easy management
  • power consumption: 15 W
  • dimensions: 261 x 44 x 208 mm
  • weight: 1.7 kg
  • included:
    • power adapter

Edge modelling microphone:

  • large-diaphragm modelling microphone
  • diaphragm: condenser, dual gold-spattered diaphragm (10 micron)
  • frequency response: 20 Hz - 20 kHz
  • sensitivity: -36 dB (-1 - +3 dB)
  • THV + N: -116 dB
  • power supply: +48V DC phantom power
  • connector: 5-pin XLR
  • included:
    • splitter cable
    • shock mount
    • pop filter
bax-shop.uk | B-stock

Product information

Product no: 9000-0038-8649

General

Antelope Audio offers the ultimate recording bundle: the Discrete 4 audio interface plus the Edge large-diaphragm modelling microphone. Experience top-quality conversion and modelling! Antelope Audio have proven themselves to be the market leader in the world of pro audio as the pioneers of high-end clock generators and converters. Their FPGA platform offers enormous flexibility in modelling possibilities, and this bundle gives you access to all 16 AFX effects instances. This means you can stack 16 tracks/channels loaded with FPGA effects in your DAW without burdening your computer's processor.

Accusonics microphone modelling

The Accusonic engine is the next logical step in Antelope's modelling technology in collaboration with their FPGA platform. The engine offers you all the audio perks of some of the most legendary microphones ever made. Choose your favourite mic, and a preamp if desired, and start recording directly with these nostalgic sounds in real time. If you prefer, you can also apply the modelling technology to your signal later in your DAW and then tweak your sound to ultimate perfection. The Discrete 4 and all its connection options combined with Antemope's Accusonic engine give you the recording possibilities you've always dreamt of!

Bax Music Warranty This product comes with a 3-year warranty.
