Product no: 9000-0043-9625 Bax Music Warranty: Apogee Ensemble Thunderbolt interface This product comes with a 3-year warranty. Apogee Element Control remote for Element series This product comes with a 3-year warranty.

General

Gain access t the most important functionality of your Ensemble interface with the Apogee Ensemble Thunderbolt and Apogee Control. Switch inputs and outputs or your recording source and adjust levels easily.

Tips or comments about this product

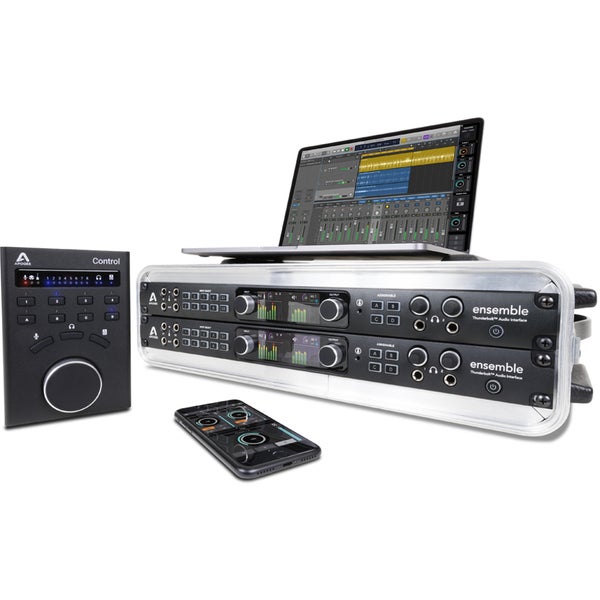

  • Please note: the laptop, smartphone and extra Ensemble in the images serve illustrative purposes only and are not included.

Specifications

Apogee Ensemble Thunderbolt interface 1x Apogee Ensemble Thunderbolt interface
The Apogee Ensemble was already high-quality interface that has only gotten better with this new and improved version! It features 30 inputs, 34 outputs, 8 preamps, and a very low latency of 1.1 ms due to Thunderbolt connectivity!

Product features

19 inches yes
Number of analogue Inputs 10
Number of analogue outputs 10
Number of headphone outputs 2
Computer ports Thunderbolt
Phantom power yes
Suitable for operating system Apple OSX / Mac OS
Interface for drummers, bands & producers
Total guitar/bass inputs 2
Total microphone inputs 8
Low latency monitoring yes, DSP mixer
Maximum sample rate 192 kHz
Included data cable none
Included software none
Software included no
Analogue audio input type balanced line in (TRS jack), microphone input (XLR), Hi-Z instrument input (TS jack)
Analogue audio output type balanced line out (TRS jack), balanced line out (DB25), headphone output (jack or mini-jack)

Weight and dimensions including packaging

Weight (incl. packaging) 5,0 kg
Dimensions (incl. packaging) 57,0 x 43,0 x 19,0 cm

Product specifications

  • Thunderbolt audio interface
  • inputs:
    • microphone: 8x
    • guitar: 2x
    • ADAT: 2x (2x 8 channels)
    • S/PDIF: 1x (4 channels)
  • outputs:
    • guitar out: 2x (direct out)
    • analogue out: 10x
    • ADAT: 2x (2x 8 channels)
    • S/PDIF: 1x (4 channels)
    • headphones: 2x
    • monitor: 2x (stereo)
  • preamps: 75 dB, digital
  • Thunderbolt: in/out
  • clocking: Word Clock
  • latency: 1.1 ms
  • built-in monitor section with talkback mic
  • optionally available at Apogee: Waves Plugins
  • dimensions: 19-inch, 1U
Apogee Element Control remote for Element series 1x Apogee Element Control remote for Element series
Apogee Element Control gives puts you in full control over your Element audio interface. After all, sometimes you just need a bit of hardware to get the job done.

Weight and dimensions including packaging

Weight (incl. packaging) 575 gr
Dimensions (incl. packaging) 22,0 x 16,0 x 8,0 cm

Product specifications

  • Apogee Element Control Remote
  • designed for controlling Apogee Element series audio interfaces
  • includes USB cable
A review can no longer be written about this item

Reviews from other countries

Translate all reviews into English

Apogee Ensemble Thunderbolt interface

Wrote the following about Apogee Ensemble Thunderbolt interface
Fijne interface, en met de nieuwe software kun je ook gemakkelijk presets opslaan die je bij een project gebruikt. Op die manier kun je makkelijk routings maken en wanneer nodig weer terugladen.
De kwaliteit is gewoon goed, en ook communicatie met externe apparaten verloopt easy. De software heeft wel eens wat gehaperd maar is intussen weer stabiel, hier heeft Apogee op geupdate.

Let wel even op dat het de intussen 'oude' thunderbolt versie betreft, voor de nieuwe macbooks heb je een verloopje nodig. Maar ook daarmee werkt het goed. De doorlinkmogelijkheid is ook handig, je kunt het volgende apparaat ook via thunderbolt weer aansluiten (bijvoorbeeld een scherm)
Apogee Ensemble Thunderbolt interface

Wrote the following about Apogee Ensemble Thunderbolt interface
Na jarenlang met de ensemble 1 gewerkt te hebben is de ensemble thunderbolt niets minder dan een openbaring. Op alle punten verbeterd en uitgebreid, ultra transparante pre-amps (8!) en ad/da conversie, meer i/o, extra adat poorten, gitaar outputs voor re-ampen, oled display, etc, etc. Hele fijne upgrades vind ik de high end headphone amps (daar koop je normaal een dedicated amp voor), de monitor functies met bijv. mutes op alle potmeters, de extra submixers in maestro en natuurlijk thunderbolt. Op mijn MacBook retina mid 2014 is de 1,1ms RTL niet echt bruikbaar, maar output latency op softsynths is nog altijd indrukwekkend met niet meer dan een paar ms. Voor het maximum heb je dus wel een snelle(re) Mac nodig. De interface werkt tot nu toe volkomen stabiel. Maestro heeft af en toe nog steeds moeite om de ensemble te herkennen uit slaapstand, dat had de E1 ook. Andere minpuntjes: de display is niet echt helder en de talkback mic ruist en bromt behoorlijk. Weet niet of dit exemplarisch is of een kenmerk van de ensemble. Ik had ook graag combo jacks gezien voor inputs 5-8. Reken ook op aanschaf van een thunderbolt kabel en een db25 breakout kabel. Verder ontbreekt vreemd genoeg een EU netsnoer. Bottomline is dat de nieuwe ensemble een waanzinnig klinkende interface is, zeker als je van een middenklasse interface komt is het alsof er een sluier wordt opgetrokken. Het is een dure interface maar m.i. iedere euro waard.
