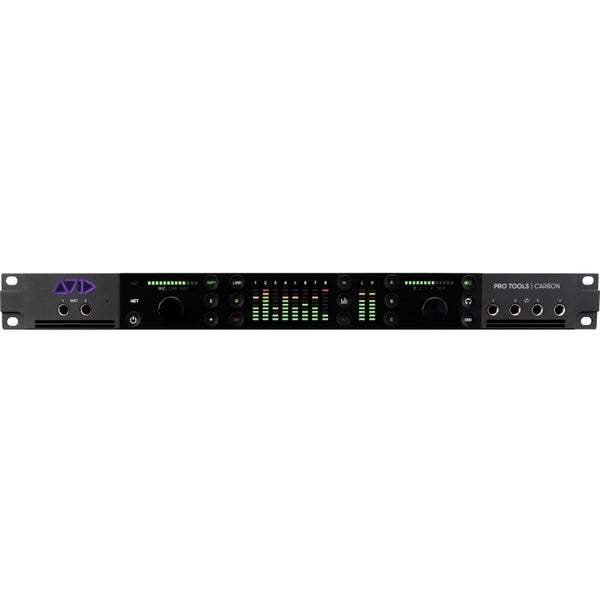

Avid Pro Tools | Carbon Audio Interface
Product no: 9000-0071-5275 Bax Music Warranty: This product comes with a 3-year warranty.

General

With the Carbon, AVID unleash a progressive, even revolutionary audio interface with immense connection options and the ability to run AAX DSP effect plug-ins via eight internal HDX DSP chips, easing the CPU load of your computer; reducing latency to less than a millisecond; smoothing out the workflow; and cracking open a fresh world of potential. The DSP effects are activated at the literal push of a button, and when it comes to conversion, the Carbon is nothing short of a game-changer. Armed with an immense 192kHz at 32-bit sample rate, the audio resolution smashes all limits.

Crystal-Clear Preamps and a Mass of I/Os

The main event when it comes to the Carbon has to be the on-board preamps. These are the most transparent preamps that AVID has ever developed, and via the 'Variable Z', the impedance can be optimised to match that of the connected microphone (including ribbons) or instrument. The internal clocking has also been taken to the next level, since an FPGA driven 100MHz oscillator reacts two times faster than the clocking of most standard interfaces. This makes the distortion near none-existent and guarantees crystal-clear audio reproduction. With 16 ADAT input and output channels, ethernet connection, eight analogue inputs and outputs over DB25, and eight preamps, a full band can be recorded with ease, and in the highest quality possible.

A Genuine Hybrid

Each AAX DSP plug-in has a counterpart in the normal plug-in world, meaning that you can record and monitor with the AAX DSP plug-ins, and if you then start collaborating with a Pro Tools user that isn't lucky enough to own a Carbon interface, you can comfortably work with the 'native' version of the same plug-ins and set up a seamless workfow between both worlds, since both versions offer exactly the same level of audio quality, and therefore perfect compatibility. Besides the 116 AAX plug-ins that come included with Pro Tools, Carbon comes with a fat bundle of plug-ins from eminent developers like Native Instruments, UVI, Embody, McDSP, Arturia, and Plugin Alliance. On top of all of that, this interface sets you up with three months of free access to Auto-Tune Unlimited.

Tips or comments about this product
  • Buy this interface before the 15th of December 2021 and register it with via Avid's website to get a free copy of Pro Tools | Ultimate and Autotune!

Specifications

Product features

19 inches yes
Number of analogue Inputs 16
Number of analogue outputs 10
Number of headphone outputs 4
Computer ports Ethernet
Digital audio inputs 2 x ADAT
Digital audio outputs 2 x ADAT
Sustainable product not specified
Phantom power yes
Suitable for operating system Apple OSX / Mac OS, Microsoft Windows
Interface for drummers, modular studio
Total guitar/bass inputs 4
Total microphone inputs 8
Low latency monitoring yes, DSP mixer
Maximum sample rate 192 kHz
Included data cable ethernet cable
Included software Pro Tools HD
Network connections AVB
Software included yes, download
Analogue audio input type balanced line in (TRS jack), balanced line in (DB25), microphone input (XLR), Hi-Z instrument input (TS jack)
Analogue audio output type balanced line out (TRS jack), balanced line out (DB25), headphone output (jack or mini-jack)

Weight and dimensions including packaging

Weight (incl. packaging) 7,9 kg
Dimensions (incl. packaging) 60,0 x 52,0 x 19,0 cm

Product specifications

  • Avid Carbon
  • audio interface for Pro Tools
  • HDX DSP-acceleration
  • includes:
    • 1 year subscription with a Pro Tools Perpetual Parachute
    • 116 AAX plug-ins (more than 70 AAX DSP plug-ins)
    • 3 month free Antares Auto-Tune, including Auto-Tube Hybrid
    • 5.4 GB sound library
    • standard support
  • included:
    • power cable
    • ethernet cable
    • rackmount screw pack and desktop feet
    • registration card
