Sennheiser EW 135-P G3-E-X wireless handheld set

Discontinued, this product can no longer be ordered.

No alternatives found
Not sure if the Sennheiser EW 135-P G3-E-X wireless handheld set is for you? Do a Choice Check. Start Choice Checker
Sennheiser EW 135-P G3-E-X wireless handheld set
Product no: 9000-0026-6674 Bax Music Warranty: This product comes with a 3-year warranty.

General

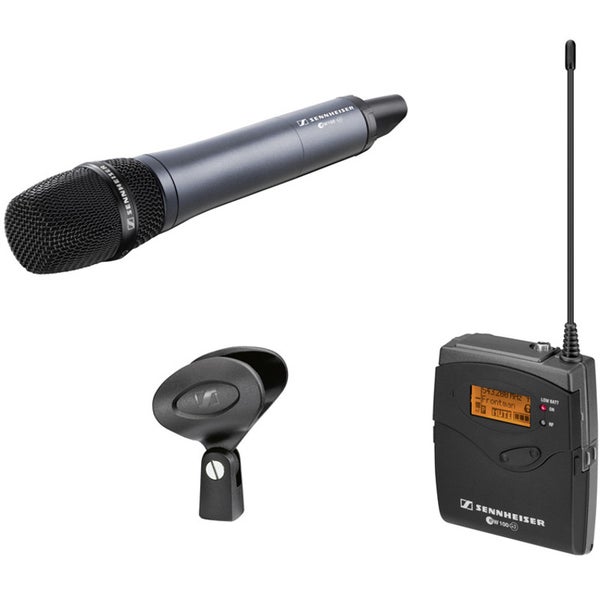

This EW 135-P wireless handheld microphone set by Sennheiser is from the brand's Evolution Wireless line and the popular G3 series, which is known for its reliable, stable signal and excellent audio quality. This set consists of the EK 100 G3 adaptive receiver with 1,680 switchable UHF frequencies distributed over 20 banks and there are 12 presets available. This system is ideal foe ENG applications (Electronic News Gathering) and gives you freedom of movement and optimal flexibility. This set also includes an SKM 135 handheld microphone that functions as a transmitter and an MZQ 1 mic clip.

Ultimate flexibility

The EW 135-P set offers a defined sound and a natural audio reproduction as well as a remarkably stable signal thanks to an ingenious scanning system that automatically locks onto the strongest available frequencies for optimal reliability. It has a cardioid pickup pattern that ensures the sound is picked up directly in front of the capsule and any unwanted noise is eliminated. Synchronising the transmitter and the receiver is easily done thanks to the sync function, resulting in accurate audio and worry-free use!

Practical charging function

Even though this set comes complete with two AA batteries, there is also an optional battery pack available (BA2015) for the receiver. A legible battery status indicator that tells you when the battery needs charging, but with continuous use, it will last about eight hours. There is also a practical Auto-Lock function so your settings don't accidentally get erased.

Specifications

Product features

Number of microphones 1 microphone
Battery type AA
Battery life (approx.) 8 hours
Frequency band Sennheiser ew G4 E (823 - 865 MHz)
Channel 65 (822 - 830 MHz), 66 (830 - 838 MHz), 67 (838 - 846 MHz), 68 (846 - 854 MHz), 69 (854 - 862 MHz), ISM (863 - 865 MHz)
Maximum frequency 18 - 18.9 kHz
Minimum frequency 80 - 99 Hz
Polar pattern cardioid
Switchable frequencies yes
Type of frequency band 800 - 899 MHz
Transmission power 30 mW

Weight and dimensions including packaging

Weight (incl. packaging) 500 gr
Dimensions (incl. packaging) 38,0 x 21,0 x 8,0 cm

Product specifications

  • Sennheiser wireless microphone set
  • microphone frequency range: 80 - 18,000 Hz
  • compander: HDX
  • audio XLR connection: mini jack
  • presets: 12
  • microphone: dynamic
  • max. SPL: 154 dB
  • THD, total harmonic distortion: < 0.9%
  • transmitter dimensions: 50 x 265 mm
  • weight: 450 g
  • pickup pattern: cardioid
  • AF sensitivity: 2.1 mV/Pa
  • signal-to-noise ratio: >110 dB (A)
  • FR frequency range: 516 - 865 MHz
  • RF output power: 30 mW
  • send/receive frequencies: 1680
  • switchable bandwidth: 42 MHz
  • peak deviation: approx. +/- 48 kHz
  • in accordance with ETS 300422, ETS 300445, CE, FCC standards
  • transmitter operation time: > 8 h
  • antenna connector: 2 BNC, 50 Ohm
  • audio output level: (unbalanced): jack: +10 dBu max.
