Sennheiser EW-DX EM 2 DANTE (S1-10) wireless microphone rece

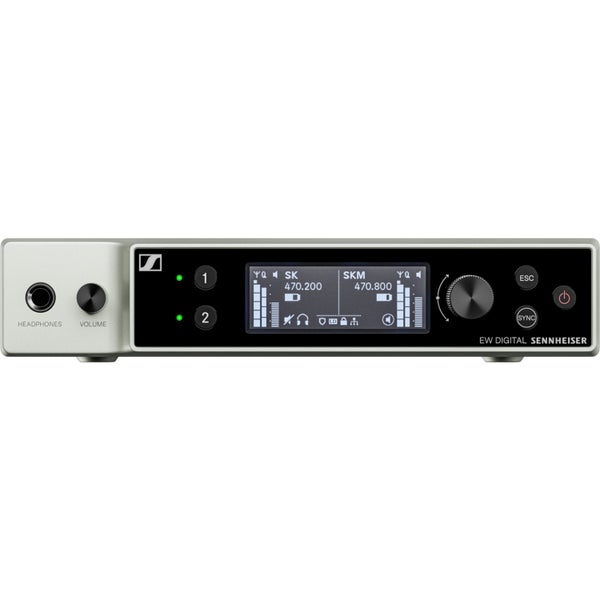

Sennheiser EW-DX EM 2 DANTE (S1-10) wireless microphone receiver
Product no: 9000-0155-1254

Product information

General

The Sennheiser EW-DX EM 2 DANTE (S1-10) is a two-channel, half-rack (9.5") digital receiver with Dante for Evolution Wireless Digital handheld, bodypack and table-top transmitters. Thanks to the 88 MHz switching bandwidth and equidistant channel spacing, you can work quickly and without intermodulation.

You can provide redundant power to the receiver via PoE (IEEE 802.3af Class 3), whilst AES-256 and Dante Media Encryption provide additional security for your signal. Wireless latency remains low at 1.9 ms thanks to Sennheiser’s SePAC codec.

Control is possible locally via the OLED display, jog wheel and buttons, or remotely via Control Cockpit/WSM and the Smart Assist App (BLE up to 25 m). Another handy feature is the selective headphone output with volume control on the front panel.

Specifications

Product features

Sustainable product: Not specified
Minimum frequency: Not specified
Maximum frequency: Not specified
Polar pattern: Not applicable
Includes headset: No
Switchable frequencies: Not specified
Analogue audio output type: Not specified
Battery type: Not applicable
Battery life (approx.): Not applicable
Channel: Not applicable
Frequency band: VHF other
Type of frequency band: Not specified
Transmission power: Not applicable
Frequency suitable for Netherlands: Not specified
Frequency suitable for Belgium: Not specified
Frequency suitable for UK: Not specified
Worldwide frequency use: Not specified
Bandwidth: 80 to 88 MHz
Digital connection(s): N/a
Number of wireless system channels: 2
Number of microphones: 0 microphones

Weight and dimensions including packaging

Weight: 2,0 kg
Dimensions: 35,0 x 29,0 x 10,0 cm

Product specifications

Product type: digital wireless receiver
quantity: 1x receiver
Model: dual-channel
Size: half-rack 9.5" (9.5")
Housing: robust metal housing
Dante: yes, Dante-enabled
Compatibility: for use with Sennheiser Evolution Wireless Digital handheld, bodypack and tabletop transmitters
switching bandwidth: up to 88 MHz
Channel spacing: equidistant channel spacing for intermodulation-free channels
Standard mode: 600 kHz spacing, up to 146 channels
Link Density (LD) mode: 300 kHz spacing, up to 293 channels
Codec: Sennheiser Performance Audio Codec (SePAC)
wireless latency: 1.9 ms
Input dynamic range: 135 dB
Encryption: AES-256
additional security: Dante Media Encryption
network modes: single cable (control, Dante, PoE), split mode (control + PoE and Dante daisy chain), redundancy mode (control + PoE, Dante primary, Dante secondary)
Software integration: works with SoundBase software
Remote control: Sennheiser Control Cockpit, Wireless System Manager and third-party media control systems via plug-in
Autoscan: yes, scans the environment and sets frequencies with equidistant spacing
Link Quality Indicator (LQI): yes, displays link quality independently of RF levels
Bluetooth: Bluetooth Low Energy (BLE) for the Smart Assist App, up to 25 m
Display/controls: OLED display, jog wheel navigation and control buttons
Headphone output: selectable with volume control on front panel
Audio output: 2 × 70 mW @ 32 Ω
Additional menu options: custom frequency list, selectable sync parameter and walk test
Power supply: Power over Ethernet (PoE), IEEE 802.3af Class 3
Ethernet: IPv4 and IPv6
External power supply: 12 V / 1 A (external PSU)
Power consumption: max. 12 W
Frequency range (S1–10): 606,200 – 693,800 MHz
Usage: suitable for worldwide use (subject to local RF regulations)
BAX SKU/item number: 9000-0155-1254
