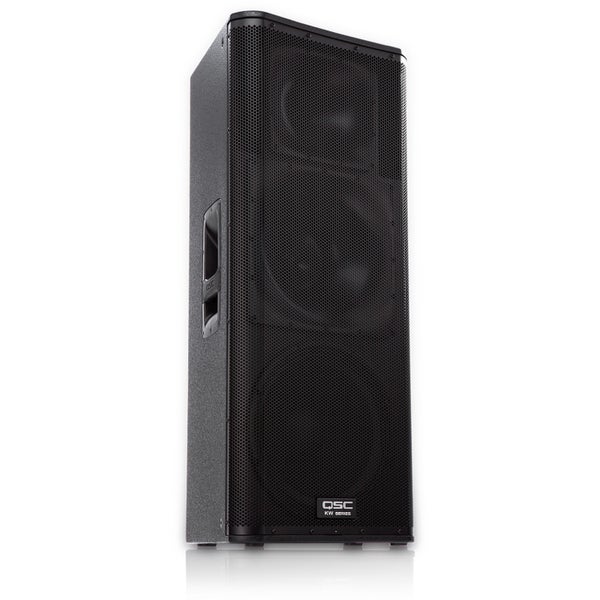

QSC KW153 Active 3-way Speaker for sale

Product information
Reviews

QSC KW153 Active 3-way Speaker Product no.: AE-KW153A Warranty period: This product comes with a 6-year warranty when you register it with QSC within 30 days of purchase. If the product is not registered it has a 3-year warranty.

General

After the success of the K series, QSC launched the KW series as the next evolutionary step in wooden-cabinet speakers. The engineers have managed to retain all of the groundbreaking properties of the K Series but reduced the cabinets in size and made them lighter.

The KW153 is an active 3-way speaker with a 15-inch woofer, a 1.75-inch compression driver and a 6.5-inch midrange speaker. They are housed in a cabinet made of 15mm-thick birch plywood which has a black textured painted finish. The inside of the speaker is protected by a smart-looking black powder-coated steel grille.

Both the woofers and the driver are powered by a class D amplifier that uses 500 Watts for the low tones and another 500 Watts for the mid and high tones for 1000 Watts of power in all. The KW153 delivers a maximum SPL of 134 dB at 1 metre. At -10 dB, it has frequency range of between 37Hz and 20 kHz.

Tips or comments about this product

Please note: QSC offers a six-year warranty for this product after registration. For more information click here:https://bax-shop.nl/nieuws-items/verlengde-garantietermijn-voor-diverse-qsc-productlijnen.html

Specifications

Product features

Speaker connectors RCA input, XLR / TRS combi input, out / link / thru
Tweeter diameter 1.75 inches
Woofer diameter 1 x 15 inches + 1 x 6.5 inches
Suitable as monitor no
Weight per speaker 40 kg
Built-in equaliser no
Maximum SPL 130 dB - 139 dB
Maximum frequency 20 - 20.9 kHz
Minimum frequency 35 - 39 Hz
RMS power in watts 750 - 1,499 W
Passive speaker output no

Weight and dimensions including packaging

Weight (incl. packaging) 47.8 kg
Dimensions (incl. packaging) 114.5 x 60.0 x 56.0 cm

Product specifications

active 3-way speaker
woofer: 15''
midrange woofer: 6.5"
compression driver: 1.75''
frequency range at -10 dB: 37 Hz - 20 kHz
maximum SPL at 1 m: 134 dB
amplifier: 1000 Watts, Class D
controls: power supply, gain A, gain B, channel A input gain, LF mode, HF mode, LED indicators for on/off and limit
indicators: power supply, signal A, signal B, standby, limit, mic
balanced inputs: female XLR line/mic, female XLR line level, double male XLR, male XLR mix, stereo RCA line level
amp protection: thermal limiter, output overcurrent, overtemperature muting
component protection: thermal limiter, excursion limiter
dimensions: 1094 x 470 x 427 mm
net weight: 39.5 kg
