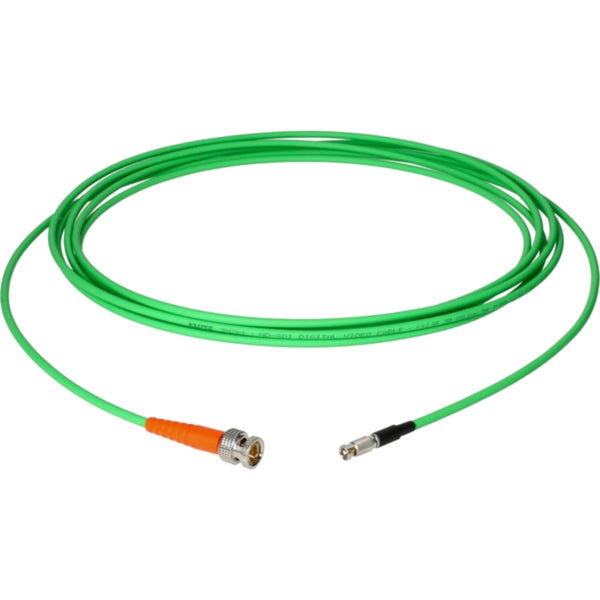

Klotz VU06H9DPM0-0100 UHD adapter cable 1 metre

no reviews yet
Bargain Buy
Klotz VU06H9DPM0-0100 UHD adapter cable 1 metre

Specifications

Product features

Sustainable product
Not specified
Length
1.00 m

Weight and dimensions including packaging

Weight
44.9 gr
Dimensions
15,0 x 8,0 x 5,0 cm

Product specifications

  • Cable type: VD062SH 0.6/2.8AF
  • Cable colour: green
  • Length: 1 metre
  • Connector 1: BNCPro male (Damar & Hagen)
  • Connector 2: BNCmicro male (Damar & Hagen)
  • Shielding: double (100% foil + 90% braided copper wire)
  • Max. transmission length UHD 12GB/s: 43m
  • Max. transmission length UHD 6G: 64m
  • Max. transmission length UHD 3G: 94m
  • Max. transmission distance HD 3G: 47m
  • Max. transmission length HD 1.5GB: 68m
  • Casing material: FRNC (flame retardant and halogen-free)
  • Operating temperature: -30°C / +70°C
  • Min. bend radius installed: 6x outer diameter
  • Min. bend radius mobile use: 12x outer diameter
  • Impedance: 75 Ω ± 2%
  • Capacitance: 55 pF/m
  • Flavour of fire: 374 kJ/m
  • CE conformity: yes, according to EU directive LVD 2006/95/EC
  • RoHS certified (no hazardous substances)
  • Weight per metre: 0.03 kg
  • EAN code: 4250046888803
  • Article number: VU06H9DPM0-0100

Choose your variant – Length: 1.00 m

Klotz VU06H9DPM0-0100 UHD adapter cable 1 metre Klotz VU06H9DPM0-0030 UHD adapter cable 0.3 metres Klotz VU06H9DPM0-0060 UHD video adapter cable 0.6 metres Klotz VU06H9DPM0-0200 UHD video adapter cable 2 metres Klotz VU06H9DPM0-0300 UHD video cable 3 metres
Recommended price £50 -22%
£39 incl. 20% VAT
Online stock status: Order now and receive delivery within approx. 3 to 4 weeks
Wishlist
Klotz VU06H9DPM0-0100 UHD adapter cable 1 metre Innox Snap 27 Fabric Cable Ties (Pack of 10)

Klotz VU06H9DPM0-0100 + Innox Snap 27

Recommended price
£43.73
Now as combination for
£43.00
You save
£0.73
Order now and receive delivery within approx. 3 to 4 weeks
Klotz VU06H9DPM0-0100 UHD adapter cable 1 metre Innox T-tie Cable Tie, 8cm (Pack of 50)

Klotz VU06H9DPM0-0100 + Innox T-tie

Recommended price
£45.45
Now as combination for
£45.00
You save
£0.45
Order now and receive delivery within approx. 3 to 4 weeks

Ordered before 10pm: Delivered in 2 Working Days (if in stock)

Free delivery from £50

Lowest Price Guarantee

Free Returns

3-Year Warranty

30-Day Trial Period

Specifications

Product features

Sustainable product
Not specified
Length
1.00 m

Weight and dimensions including packaging

Weight
44.9 gr
Dimensions
15,0 x 8,0 x 5,0 cm

Product specifications

  • Cable type: VD062SH 0.6/2.8AF
  • Cable colour: green
  • Length: 1 metre
  • Connector 1: BNCPro male (Damar & Hagen)
  • Connector 2: BNCmicro male (Damar & Hagen)
  • Shielding: double (100% foil + 90% braided copper wire)
  • Max. transmission length UHD 12GB/s: 43m
  • Max. transmission length UHD 6G: 64m
  • Max. transmission length UHD 3G: 94m
  • Max. transmission distance HD 3G: 47m
  • Max. transmission length HD 1.5GB: 68m
  • Casing material: FRNC (flame retardant and halogen-free)
  • Operating temperature: -30°C / +70°C
  • Min. bend radius installed: 6x outer diameter
  • Min. bend radius mobile use: 12x outer diameter
  • Impedance: 75 Ω ± 2%
  • Capacitance: 55 pF/m
  • Flavour of fire: 374 kJ/m
  • CE conformity: yes, according to EU directive LVD 2006/95/EC
  • RoHS certified (no hazardous substances)
  • Weight per metre: 0.03 kg
  • EAN code: 4250046888803
  • Article number: VU06H9DPM0-0100
bax-shop.uk | B-stock

Product information

Product no: 9000-0143-9380

General

The Klotz VU06H9DPM0-0100 UHD adapter cable is designed for reliable transmission of digital and analogue video signals, ideal for both rack applications and installations. The cable has a high transmission capacity of up to 12G-SDI and features double shielding (100% foil + 90% braided copper wire), ensuring excellent protection against electromagnetic interference. The use of high-quality BNCPro and BNCmicro connectors makes the cable particularly suitable for use in demanding environments such as UHD, 4K, and 8K productions. With a length of 1 metre, this cable is perfect for shorter installations and offers reliable signal transmission at various resolutions and frame rates.

Bax Music Warranty This product comes with a lifetime manufacturing defects warranty.
