Discontinued, this product can no longer be ordered.
Not sure if the Antelope Audio Edge Strip preamp with modelling microphone is for you? Do a Choice Check.
Start Choice Checker

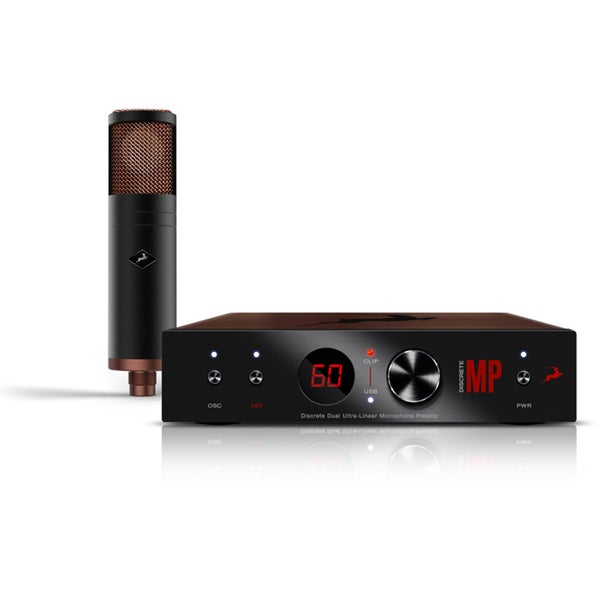

Antelope Audio Edge Strip preamp with modelling microphone
Product no: 9000-0042-2537
Bax Music Warranty:
This product comes with a 3-year warranty.
General
There may not be a microphone that can give you a full and warm sound with sufficient saturation as well as transparency with a lightning-fast transient response, but this Antelope Audio Edge Strip bundle makes just about anything possible. The Edge modelling microphone and the Discrete MP preamplifier are both true chameleons in their own right. Add in the software that is also included as part of this bundle and you can make the mic and preamp sound like just about any vintage mic model you can think of. The Discrete MP preamp is equipped with a USB port so that you can control it via the DAW software on your computer.
Properties
The two preamplifers in the Discrete MP are the same as those found in the Discrete 4 and Discrete 8 audio interfaces. They're extremely transparent and offer the same sound quality as preamps found on larger consoles. The Discrete MP has two inputs while the Edge microphone has two outputs. This allows you to determine the polar pattern you want to use in your recordings via your DAW., even after the recording has been made.
Specifications
Product features
| 19-inch rack size |
not applicable |
| Number of channels |
2 |
| Tube microphone |
no |
| Digital output |
no |
| Energy source |
phantom |
| Phantom power |
yes |
| Phase reverse |
yes |
| Microphone sensitivity (dBV/PA) |
-36 |
| Headphone output |
no |
| Microphone impedance |
not specified |
| Built-in compressor |
no |
| Built-in equaliser |
no |
| Built-in limiter |
no |
| Low-cut filter |
no |
| Maximum SPL |
not specified |
| Maximum frequency |
20 - 20.9 kHz |
| Microphone accessories |
shock mount |
| Minimum frequency |
20 - 21 Hz |
| Pad switch |
no |
| Polar pattern |
cardioid, hyper cardioid, super cardioid, figure-8 / bi-directional, omni-directional, multi pattern |
| Stereo |
no |
| Equipped with tube |
no |
Weight and dimensions including packaging
| Weight (incl. packaging) |
5,6 kg |
| Dimensions (incl. packaging) |
45,0 x 39,0 x 20,5 cm
|
Product specifications
- Antelope Edge Strip bundle
- Discrete MP preamp with Edge modelling microphone
- preamp inputs: 2x XLR/TRS combo inputs (XLR=microphone/TRS=line)
- preamp outputs: 2x TRS
- USB connector for remote control
- preamp dimensions: 190 x 47.5 x 157 mm
- preamp weight: 950 gr
- microphone frequency response: 20 Hz - 20 kHz
- sensitivity: -36 dBV/Pa
- THV + N: -116 dB
- power supply: +48V DC phantom power
- connector: 5-pin XLR
- included:
- splitter cable
- shock mount
- pop filter
Thursday 25 January 2018 By Richard | Bax Music
Antelope Audio takes microphone modelling very seriously. This Edge Strip bundle consists of the Edge modelling microphone and the Discrete MP preamplifier that comes from the Discrete 4 and Discrete 8 audio interfaces. The mic and the preamp, together with the included software, allow you to recreate the sounds captured by just about any vintage mic you can think of. The same goes for preamps, EQs and compressors too.
