Adam A3X active DJ and studio monitor (per piece)

5 / 5
3 reviews

Discontinued, this product can no longer be ordered.

Alternative items
Not sure if the Adam A3X active DJ and studio monitor (per piece) is for you? Do a Choice Check. Start Choice Checker
bax-shop.uk | B-stock

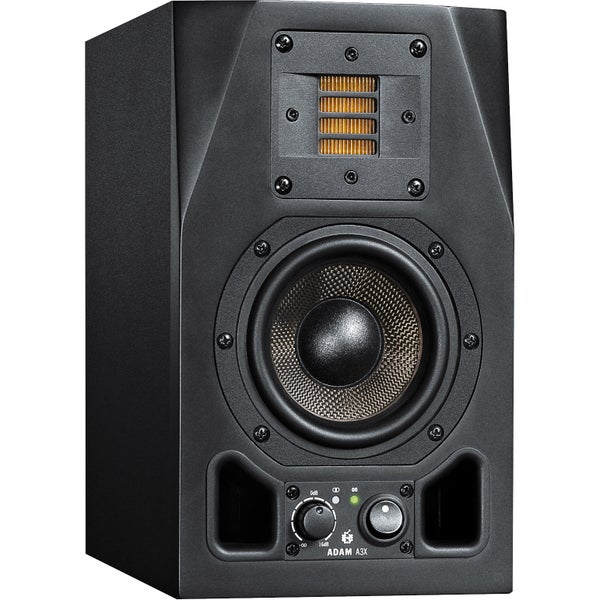

Adam A3X active DJ and studio monitor (per piece)
Product no: AM-A3X

Product information

General

With the A3X, ADAM Audio have launched their smallest monitor ever. It is great for any environment, but is especially suited for limited spaces where sound shouldn't be constricted. The A3X combines a small footprint with the renowned ADAM sound quality, as the X-ART tweeter that is used for higher frequencies guarantees a crystal-clear sound.

The A3X: the smallest big sound ever
A 4.5 inch basket driver takes care of the lower registers. The diaphragm is made of carbon fibre, which is lightweight yet sturdy. As such, the A3X produces a colouring-free sound. The two built-in, 25 Watt amplifiers power both drivers directly.

Stereolink: exclusively in the AX monitor
Stereolink is a practical and exclusive technology that is featured in the two smaller AX monitors. This technology allows you to bypass the second stereo channel to the other speaker by means of a pair of additional RCA connectors.

This new technology connects the two A3X speakers in such a way that allows the user to adjust the total stereo volume of the system from either of the two gain controls. As such, the A3X is perfect for 'mixer-less' desktop applications that require easy system volume adjustments.

Tips or comments about this product

-

Specifications

Product features

Speaker connections
RCA input, XLR input, out / link / thru
Active or passive
Active
Bass reflex system
Front
Coaxial
No
Mid driver diameter
Not applicable
Tweeter diameter
1 inch
Woofer diameter
4 inch
Maximum frequency
40 - 50 kHz
Minimum frequency
60 - 79 Hz
Monitor set configuration
Single speaker
RMS power in watts
50 - 99 W
Type of studio monitor
2-way (tweeter + woofer)

Weight and dimensions including packaging

Weight
4,6 kg
Dimensions
25,2 x 18,5 x 15,0 cm

Product specifications

- active DJ & studio monitor
- number of mid-woofers: 1
- basket diameter: 4.5 inch (120 mm)
- voice coil diameter: 1 inch (25 mm)
- cone material: carbon fibre
- number of tweeters: 1
- tweeter type: X-ART
- diaphragm area: 4 inch² (2420 mm²)
- velocity transformation ratio: 4:1
- diaphragm weight: 0.17 grams
- number of built-in amplifiers for mid-woofer: 1
- amplifier type for mid-woofer: A/B
- mid-woofer amplifier power RMS/music: 25W/40W
- number of built-in amplifiers for tweeter: 1
- amplifier type for tweeter: A/B
- tweeter amplifier power RMS/music: 25W/40W
- input sensitivity: -∞ to +14 dB
- tweeter gain: ±4 dB
- input connectors analogue: XLR/RCA
- frequency response: 60 Hz - 50 kHz
- THD 90 dB/1m > 100 Hz: ≤0.8 %
- long term output: ≥98 dB
- maximum peak: ≥106 dB
- crossover frequencies: 2800 Hz
- input impedance: 1 kOhm
- magnetically shielded: no
- included accessories: RCA cable, power cable, manual
- dimensions: 150 x 252 x 185 mm
- weight: 4.6 kg

Bax Music Warranty This product comes with a 5-year warranty when you register it with ADAM within 2 years of purchase. If the product is not registered it has a 3-year warranty.
