Tsakalis AudioWorks Six 6-in-1 Analogue Booster Overdrive Di

Sustainable product	not specified
adapter included	no
type of distortion	overdrive
equipped with tube	no
true bypass	yes
mini pedal	no

Voltage	9 V
can be powered by battery	no
Centre positive/negative	not applicable
Power supply plug	barrel 2.1 mm (inner diameter)
variable voltage	no
type of tone control	~

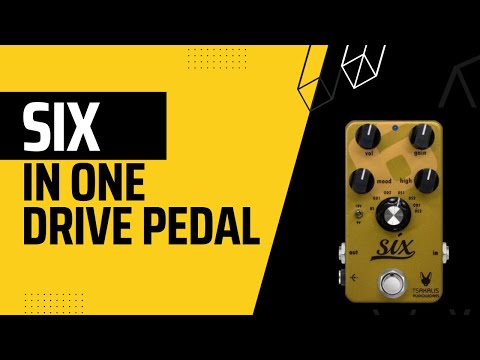

Tsakalis AudioWorks Six 6-in-1 Analogue Booster Overdrive Distortion Pedal
Product no: 9000-0105-6600 Bax Music Warranty: This product comes with a 3-year warranty.

General

A massive fan of that ever-popular Bluesbreaker or Beano-style sound, Tsakalis AudioWorks cram six of the best into one pedal. This is the Six booster, overdrive and distortion. Use the central rotary switch to flip between a clean boost with a fast breakup, two different overdrives, two different distortions plus a tasty combination of one of the drives and more extreme distortion. The voltage mini-switch shifts up from 9 Volts to 18 Volts so you can raise the headroom and get closer to the that vintage amp-style sound and response, and since the Six stompbox features Cap-Less technology, all of the coupling capacitors have been removed from the audio path to emphasise the sonic character of your guitar and retain a more natural feel.

Tips or comments about this product

Please note: A power supply does not come included with this pedal.

Specifications

Product features

Adapter included	no
Centre positive/negative	centre negative
Sustainable product	not specified
Mini pedal	no
True bypass	yes
Power supply plug	barrel 2.1 mm (inner diameter)
Type of tone control	one-button tone control
Type of distortion	clean boost, overdrive, distortion
Variable voltage	no
Can be powered by battery	no
Voltage	9 V
Equipped with tube	no

Weight and dimensions including packaging

Weight (incl. packaging)	400 gr
Dimensions (incl. packaging)	14,0 x 8,0 x 6,2 cm

Product specifications

Tsakalis AudioWorks analogue effect pedal
model: Six
effect type: overdrive, distortion, boost
with Cap-Less Technology: removes all of the coupling capacitors from the audio path for a more natural feel and to emphasise the sonic character of your guitar
integrated voltage switch: raises internal voltage to 18V or more headroom and an amplifier-style response
true bypass switching
modes:
- BS: clean boost with fast breakup at higher settings
- OD1: round overdrive with clear mids
- OD2: creamy overdrive with more compression
- DS1: natural and responsive amplifier-style distortion
- DS2: DS1 with extra sustain and more bite
- OD1 + DS2: fat distortion / overdrive with a unique sonic character
controls:
- volume
- gain
- mood
- high
switches:
- bypass
- modes (6x)
- 18V / 9V
connections:
- 6.3mm mono jack input
- 6.3mm mono jack output
power supply: 9V battery or 9V power supply (not included)
power consumption: 10 mA
dimensions: 9.2 x 5 x 3.18cm
weight: 340g
made in Greece
