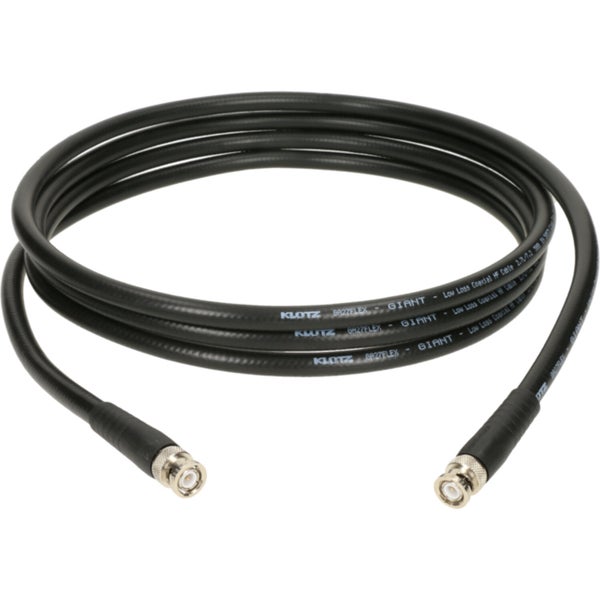

Klotz C-27X1D-007.5 high-quality 50 ohm coax cable with BNC 7.5 metres

Product specifications

• cable type: 50 ohm - coaxial cable - giant
• outer jacket: PVC, black
• connector 1: BNC, male, silver-plated
• connector 2: BNC, male, silver-plated
• cable type: GA27FLEX
• length: 7.5 m
• inner conductor: bare stranded copper wire, 7 x 0.91 mm (AWG 10/7)
• insulation: foam-skin PE, gas injected, Ø 7.2 mm
• shielding: Cu PET foil and bare copper braid, coverage 82%
• overall diameter: 10.3 mm
• characteristic impedance: 50 Ω
• velocity of propagation: 85 %
• DC resistance outer conductor: 6.8 Ω/km
• nominal attenuation: 10 MHz 1.8 dB/100m, 100 MHz 4.8 dB/100m, 400 MHz 9.7 dB/100m, 500 MHz 11.0 dB/100m, 600 MHz 12.1 dB/100m, 1000 MHz 16.1 dB/100m, 2000 MHz 24.2 dB/100m, 3000 MHz 31.2 dB/100m
• min. bending radius installed: 5x overall diameter
• min. bending radius mobile use: 10x overall diameter
• temperature range: mobile -30°C / +70°C, installed -30°C / +70°C
• flame retardancy: flame retardant acc. to IEC 60332-1-2
• CPR class: Eca acc. to EN50575
• weight: 0.14 kg/m
• stock: on request
• order code: C-27X1D-007.5
