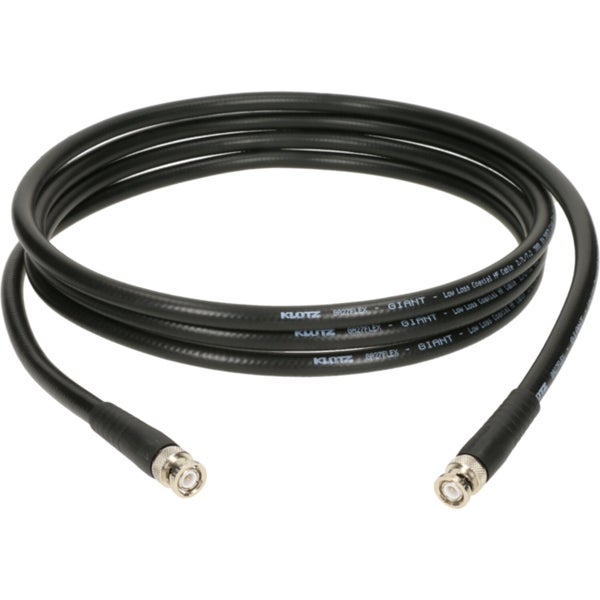

Klotz C-27X1D-050.0 50 Ohm coaxial cable with BNC connectors 50 metres

no reviews yet
Bargain Buy
Klotz C-27X1D-050.0 50 Ohm coaxial cable with BNC connectors 50 metres

Specifications

Product features

Sustainable product
Not specified
Length
50.00 m

Weight and dimensions including packaging

Weight
6,9 kg
Dimensions
38,0 x 38,0 x 12,0 cm

Product specifications

  • cable type: 50 ohm coaxial cable - GA27FLEX giant
  • outer jacket: PVC, black
  • length: 50 m
  • connector 1: BNC plug, male, silver-plated contact, Damar & Hagen
  • connector 2: BNC plug, male, silver-plated contact, Damar & Hagen
  • inner conductor: bare stranded copper wire, 7 x 0.91 mm
  • insulation: foam-skin PE, gas injected, Ø 7.2 mm
  • shielding: Cu PET foil and bare copper braid, coverage 82%
  • overall diameter: 10.3 mm
  • characteristic impedance: 50 Ω
  • velocity of propagation: 85%
  • DC resistance outer conductor: 6.8 Ω/km
  • screening attenuation @ 1 GHz: > 90 dB
  • nominal attenuation (dB/100m): 10 MHz 1.8, 100 MHz 4.8, 400 MHz 9.7, 500 MHz 11.0, 600 MHz 12.1, 1000 MHz 16.1, 2000 MHz 24.2, 3000 MHz 31.2
  • min. bending radius installed: 5x overall diameter
  • min. bending radius mobile: 10x overall diameter
  • temperature range mobile/installed: -30°C / +70°C
  • flame retardancy: flame retardant acc. to IEC 60332-1-2
  • CPR class: Eca acc. to EN50575
  • weight: 0.14 kg/m
  • standard lengths: 50 / 100 / 200 / 300 / 500 m
  • SKU: C-27X1D-050.0

Choose your variant – Length: 50.00 m

Klotz C-27X1D-050.0 50 Ohm coaxial cable with BNC connectors 50 metres Klotz C-27X1D-000.5 Professional coaxial cable 50 Ohm 0.5 metres Klotz C-27X1D-001.0 Coaxial cable with BNC connectors 1 metre Klotz C-27X1D-002.0 RF coaxial cable with BNC connectors 2 metres Klotz C-27X1D-003.0 Professional 50 Ohm coaxial cable 3 metres
Recommended price £365 -34%
£242 incl. 20% VAT
Online stock status: Order now and receive delivery within approx. 3 to 4 weeks
Wishlist
Klotz C-27X1D-050.0 50 Ohm coaxial cable with BNC connectors 50 metres Innox Snap 27 Fabric Cable Ties (Pack of 10)

Klotz C-27X1D-050.0 + Innox Snap 27

Recommended price
£246.73
Now as combination for
£246.00
You save
£0.73
Order now and receive delivery within approx. 3 to 4 weeks
Klotz C-27X1D-050.0 50 Ohm coaxial cable with BNC connectors 50 metres Innox T-tie Cable Tie, 8cm (Pack of 50)

Klotz C-27X1D-050.0 + Innox T-tie

Recommended price
£248.45
Now as combination for
£248.00
You save
£0.45
Order now and receive delivery within approx. 3 to 4 weeks

Ordered before 10pm: Delivered in 2 Working Days (if in stock)

Free delivery from £50

Lowest Price Guarantee

Free Returns

3-Year Warranty

30-Day Trial Period

Specifications

Product features

Sustainable product
Not specified
Length
50.00 m

Weight and dimensions including packaging

Weight
6,9 kg
Dimensions
38,0 x 38,0 x 12,0 cm

Product specifications

  • cable type: 50 ohm coaxial cable - GA27FLEX giant
  • outer jacket: PVC, black
  • length: 50 m
  • connector 1: BNC plug, male, silver-plated contact, Damar & Hagen
  • connector 2: BNC plug, male, silver-plated contact, Damar & Hagen
  • inner conductor: bare stranded copper wire, 7 x 0.91 mm
  • insulation: foam-skin PE, gas injected, Ø 7.2 mm
  • shielding: Cu PET foil and bare copper braid, coverage 82%
  • overall diameter: 10.3 mm
  • characteristic impedance: 50 Ω
  • velocity of propagation: 85%
  • DC resistance outer conductor: 6.8 Ω/km
  • screening attenuation @ 1 GHz: > 90 dB
  • nominal attenuation (dB/100m): 10 MHz 1.8, 100 MHz 4.8, 400 MHz 9.7, 500 MHz 11.0, 600 MHz 12.1, 1000 MHz 16.1, 2000 MHz 24.2, 3000 MHz 31.2
  • min. bending radius installed: 5x overall diameter
  • min. bending radius mobile: 10x overall diameter
  • temperature range mobile/installed: -30°C / +70°C
  • flame retardancy: flame retardant acc. to IEC 60332-1-2
  • CPR class: Eca acc. to EN50575
  • weight: 0.14 kg/m
  • standard lengths: 50 / 100 / 200 / 300 / 500 m
  • SKU: C-27X1D-050.0
bax-shop.uk | B-stock

Product information

Product no: 9000-0143-0698

General

This Klotz GA27FLEX coaxial cable is designed for professional stage and theatre applications where antennas of wireless microphones need to be connected to receivers over long distances. Thanks to an extra-thick 2.7 mm inner conductor and a double shield of copper foil and copper braiding, the cable offers extremely low attenuation and reliable protection against electromagnetic interference. The cable is flexible, low-loss and suitable for both mobile and fixed installations.
