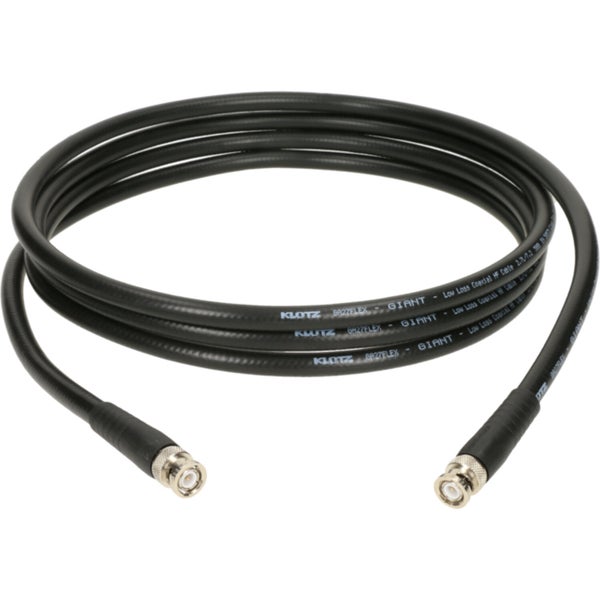

Klotz C-27X1D-025.0 high-end coaxial cable with BNC connectors 25 metres

no reviews yet
Bargain Buy
Klotz C-27X1D-025.0 high-end coaxial cable with BNC connectors 25 metres

Specifications

Product features

Sustainable product
Not specified
Length
25.00 m

Weight and dimensions including packaging

Weight
3,5 kg
Dimensions
50,0 x 18,0 x 7,0 cm

Product specifications

  • 25 m length
  • 50 Ohm coaxial cable type GA27FLEX
  • cable colour black
  • outer jacket PVC
  • inner conductor bare stranded copper wire, 7 x 0,91 mm (AWG 10/7)
  • insulation foam-skin PE, gas injected, Ø 7,2 mm
  • shielding Cu PET foil and bare copper braid (coverage 82%)
  • overall diameter 10.3 mm
  • connector 1 BNC, male, silver-plated
  • connector 2 BNC, male, silver-plated
  • predestined for antenna signals in wireless microphone systems
  • characteristic impedance 50 Ω
  • velocity of propagation 85 %
  • DC resistance outer conductor 6,8 Ω/km
  • screening attenuation @ 1 GHz > 90 dB
  • nom. attenuation [dB/100m]: 10 MHz 1,8 | 100 MHz 4,8 | 400 MHz 9,7 | 500 MHz 11,0 | 600 MHz 12,1 | 1000 MHz 16,1 | 2000 MHz 24,2 | 3000 MHz 31,2
  • min. bending radius installed 5x overall diameter, mobile 10x overall diameter
  • working temperature mobile -30°C / +70°C, installed -30°C / +70°C
  • flame retardant acc. to IEC 60332-1-2
  • CPR class Eca acc. to EN50575
  • manufacturer BNC Damar & Hagen
  • article number C-27X1D-025.0
  • weight 0,14 kg/m

Choose your variant – Length: 25.00 m

Klotz C-27X1D-025.0 high-end coaxial cable with BNC connectors 25 metres Klotz C-27X1D-000.5 Professional coaxial cable 50 Ohm 0.5 metres Klotz C-27X1D-001.0 Coaxial cable with BNC connectors 1 metre Klotz C-27X1D-002.0 RF coaxial cable with BNC connectors 2 metres Klotz C-27X1D-003.0 Professional 50 Ohm coaxial cable 3 metres
Recommended price £215 -33%
£143 incl. 20% VAT
Online stock status: In stock at supplier

Order before 10pm = in about 8 working days at home

Wishlist
Klotz C-27X1D-025.0 high-end coaxial cable with BNC connectors 25 metres Innox Snap 27 Fabric Cable Ties (Pack of 10)

Klotz C-27X1D-025.0 + Innox Snap 27

Recommended price
£147.73
Now as combination for
£147.00
You save
£0.73
In stock at supplier

Order before 10pm = in about 8 working days at home

Klotz C-27X1D-025.0 high-end coaxial cable with BNC connectors 25 metres Innox T-tie Cable Tie, 8cm (Pack of 50)

Klotz C-27X1D-025.0 + Innox T-tie

Recommended price
£149.45
Now as combination for
£149.00
You save
£0.45
In stock at supplier

Order before 10pm = in about 8 working days at home

Ordered before 10pm: Delivered in 2 Working Days (if in stock)

Free delivery from £50

Lowest Price Guarantee

Free Returns

3-Year Warranty

30-Day Trial Period

Specifications

Product features

Sustainable product
Not specified
Length
25.00 m

Weight and dimensions including packaging

Weight
3,5 kg
Dimensions
50,0 x 18,0 x 7,0 cm

Product specifications

  • 25 m length
  • 50 Ohm coaxial cable type GA27FLEX
  • cable colour black
  • outer jacket PVC
  • inner conductor bare stranded copper wire, 7 x 0,91 mm (AWG 10/7)
  • insulation foam-skin PE, gas injected, Ø 7,2 mm
  • shielding Cu PET foil and bare copper braid (coverage 82%)
  • overall diameter 10.3 mm
  • connector 1 BNC, male, silver-plated
  • connector 2 BNC, male, silver-plated
  • predestined for antenna signals in wireless microphone systems
  • characteristic impedance 50 Ω
  • velocity of propagation 85 %
  • DC resistance outer conductor 6,8 Ω/km
  • screening attenuation @ 1 GHz > 90 dB
  • nom. attenuation [dB/100m]: 10 MHz 1,8 | 100 MHz 4,8 | 400 MHz 9,7 | 500 MHz 11,0 | 600 MHz 12,1 | 1000 MHz 16,1 | 2000 MHz 24,2 | 3000 MHz 31,2
  • min. bending radius installed 5x overall diameter, mobile 10x overall diameter
  • working temperature mobile -30°C / +70°C, installed -30°C / +70°C
  • flame retardant acc. to IEC 60332-1-2
  • CPR class Eca acc. to EN50575
  • manufacturer BNC Damar & Hagen
  • article number C-27X1D-025.0
  • weight 0,14 kg/m
bax-shop.uk | B-stock

Product information

Product no: 9000-0143-0693

General

The Klotz C-27X1D-025.0 is a high-quality 25-metre 50 Ohm coaxial cable fitted with BNC plugs from Damar & Hagen. Thanks to its flexible core and gas-injected PE dielectric, this cable offers extremely low signal attenuation. The double shielding protects against interference, ideal for stage and theatre use. Perfect for connecting receiving antennas of wireless microphones to the receiver over long distances.

Bax Music Warranty This product comes with a lifetime manufacturing defects warranty.

Reviews

There are no reviews for this product yet.
