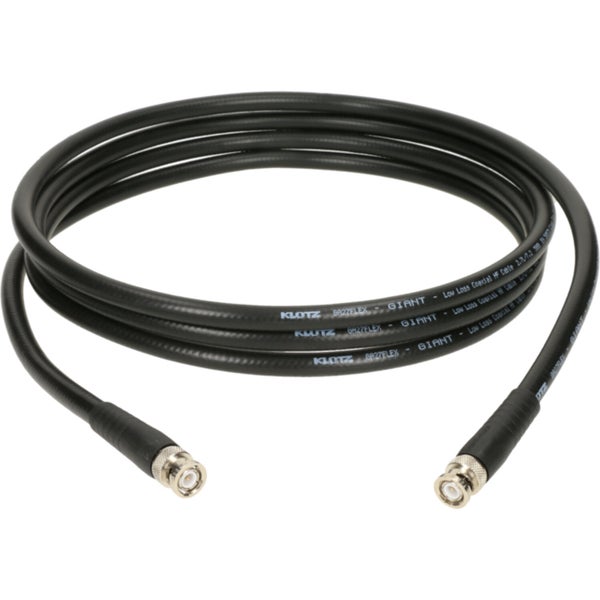

Klotz C-27X1D-100.0 50 Ohm coaxial cable with BNC connectors 100 metres

no reviews yet
Bargain Buy
Klotz C-27X1D-100.0 50 Ohm coaxial cable with BNC connectors 100 metres

Specifications

Product features

Sustainable product
Not specified
Length
100.00 m

Weight and dimensions including packaging

Weight
14,7 kg
Dimensions
50,0 x 40,0 x 18,0 cm

Product specifications

  • cable type: 50 Ohm - coax cable - giant
  • outer jacket: PVC, black
  • length: 100 m
  • connector 1: BNC, male, silver-plated contact
  • connector 2: BNC, male, silver-plated contact
  • inner conductor: bare stranded copper wire, 7 x 0.91 mm (Ø 2.7 mm)
  • insulation: foam-skin PE, gas injected, Ø 7.2 mm
  • shielding: Cu PET foil + bare copper braid, 82% coverage
  • overall diameter: 10.3 mm
  • characteristic impedance: 50 Ω
  • velocity of propagation: 85%
  • DC resistance outer conductor: 6.8 Ω/km
  • screening attenuation @1 GHz: >90 dB
  • nominal attenuation: 10 MHz 1.8 dB/100m, 100 MHz 4.8 dB/100m, 400 MHz 9.7 dB/100m, 500 MHz 11.0 dB/100m, 600 MHz 12.1 dB/100m, 1000 MHz 16.1 dB/100m, 2000 MHz 24.2 dB/100m, 3000 MHz 31.2 dB/100m
  • min. bending radius: installed 5x overall diameter, mobile use 10x overall diameter
  • temperature range: -30°C / +70°C
  • flame retardancy: flame retardant acc. to IEC 60332-1-2
  • CPR class: Eca acc. to EN50575
  • cable type: GA27FLEX
  • BNC manufacturer: Damar & Hagen
  • shell/sleeve: black
  • stock: on request
  • SKU: C-27X1D-100.0

Choose your variant – Length: 100.00 m

Klotz C-27X1D-100.0 50 Ohm coaxial cable with BNC connectors 100 metres Klotz C-27X1D-000.5 Professional coaxial cable 50 Ohm 0.5 metres Klotz C-27X1D-001.0 Coaxial cable with BNC connectors 1 metre Klotz C-27X1D-002.0 RF coaxial cable with BNC connectors 2 metres Klotz C-27X1D-003.0 Professional 50 Ohm coaxial cable 3 metres
Recommended price £672 -37%
£424 incl. 20% VAT
Online stock status: Order now and receive delivery within approx. 3 to 4 weeks
Wishlist
Klotz C-27X1D-100.0 50 Ohm coaxial cable with BNC connectors 100 metres Innox Snap 27 Fabric Cable Ties (Pack of 10)

Klotz C-27X1D-100.0 + Innox Snap 27

Recommended price
£428.73
Now as combination for
£428.00
You save
£0.73
Order now and receive delivery within approx. 3 to 4 weeks
Klotz C-27X1D-100.0 50 Ohm coaxial cable with BNC connectors 100 metres Innox T-tie Cable Tie, 8cm (Pack of 50)

Klotz C-27X1D-100.0 + Innox T-tie

Recommended price
£430.45
Now as combination for
£430.00
You save
£0.45
Order now and receive delivery within approx. 3 to 4 weeks

Ordered before 10pm: Delivered in 2 Working Days (if in stock)

Free delivery from £50

Lowest Price Guarantee

Free Returns

3-Year Warranty

30-Day Trial Period

Specifications

Product features

Sustainable product
Not specified
Length
100.00 m

Weight and dimensions including packaging

Weight
14,7 kg
Dimensions
50,0 x 40,0 x 18,0 cm

Product specifications

  • cable type: 50 Ohm - coax cable - giant
  • outer jacket: PVC, black
  • length: 100 m
  • connector 1: BNC, male, silver-plated contact
  • connector 2: BNC, male, silver-plated contact
  • inner conductor: bare stranded copper wire, 7 x 0.91 mm (Ø 2.7 mm)
  • insulation: foam-skin PE, gas injected, Ø 7.2 mm
  • shielding: Cu PET foil + bare copper braid, 82% coverage
  • overall diameter: 10.3 mm
  • characteristic impedance: 50 Ω
  • velocity of propagation: 85%
  • DC resistance outer conductor: 6.8 Ω/km
  • screening attenuation @1 GHz: >90 dB
  • nominal attenuation: 10 MHz 1.8 dB/100m, 100 MHz 4.8 dB/100m, 400 MHz 9.7 dB/100m, 500 MHz 11.0 dB/100m, 600 MHz 12.1 dB/100m, 1000 MHz 16.1 dB/100m, 2000 MHz 24.2 dB/100m, 3000 MHz 31.2 dB/100m
  • min. bending radius: installed 5x overall diameter, mobile use 10x overall diameter
  • temperature range: -30°C / +70°C
  • flame retardancy: flame retardant acc. to IEC 60332-1-2
  • CPR class: Eca acc. to EN50575
  • cable type: GA27FLEX
  • BNC manufacturer: Damar & Hagen
  • shell/sleeve: black
  • stock: on request
  • SKU: C-27X1D-100.0
bax-shop.uk | B-stock

Product information

Product no: 9000-0143-2168

General

The Klotz C-27X1D-100.0 is a 100-metre professional 50 Ohm coaxial cable designed for antenna signals in wireless microphone systems. Thanks to its flexible stranded copper core and low-loss gas-injected PE dielectric, stable signal transmission with minimal reflections is guaranteed. The double shielding (Cu foil and copper braid) provides excellent protection against interference. Suitable for both mobile applications and fixed installations, the cable combines high performance with good ductility.
