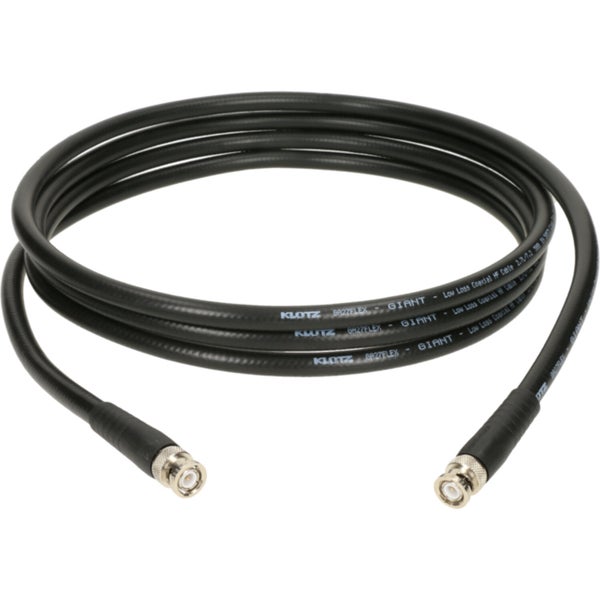

Klotz C-27X1D-010.0 high-end 50 ohms coax cable with BNC 10 metres
Klotz
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 10.00 m
Weight and dimensions including packaging
- Weight
- 1,4 kg
- Dimensions
- 38,0 x 14,0 x 5,0 cm
Product specifications
- length: 10 m
- number of products: 1 piece
- product content: RF cable 50 Ohm GA27FLEX, plug-plug BNC D&H HF
- cable type: 50 Ohm - coaxial cable - GA27FLEX
- cable colour: black
- outer jacket: PVC
- inner conductor: stranded copper wire, 7 x 0.91 mm (AWG 10/7)
- insulation: foam-PE, gas injected, Ø 7.2 mm
- shielding: Cu PET foil + copper braid (82% coverage)
- connector 1: BNC, male, silver-plated
- connector 2: BNC, male, silver-plated
- min. bend radius: installed 5x, mobile 10x total diameter
- temperature range: -30°C to +70°C
- fire class: IEC 60332-1-2 flame retardant, CPR Eca
- characteristic impedance: 50 Ω
- velocity of propagation: 85%
- DC resistance outer conductor: 6,8 Ω/km
- screening attenuation @ 1 GHz: > 90 dB
- nom. attenuation [dB/100m]: 10 MHz 1,8 | 100 MHz 4,8 | 400 MHz 9,7 | 500 MHz 11,0 | 600 MHz 12,1 | 1000 MHz 16,1 | 2000 MHz 24,2 | 3000 MHz 31,2
- overall diameter: 10,3 mm
Choose your variant – Length: 10.00 m
Order before 10pm = in about 8 working days at home
Klotz C-27X1D-010.0 + Innox Snap 27
- Recommended price
- £91.73
- Now as combination for
- £91.00
- You save
- £0.73
Order before 10pm = in about 8 working days at home
Klotz C-27X1D-010.0 + Innox T-tie
- Recommended price
- £93.45
- Now as combination for
- £93.00
- You save
- £0.45
Order before 10pm = in about 8 working days at home
Specifications
Product features
- Sustainable product
- Not specified
- Length
- 10.00 m
Weight and dimensions including packaging
- Weight
- 1,4 kg
- Dimensions
- 38,0 x 14,0 x 5,0 cm
Product specifications
- length: 10 m
- number of products: 1 piece
- product content: RF cable 50 Ohm GA27FLEX, plug-plug BNC D&H HF
- cable type: 50 Ohm - coaxial cable - GA27FLEX
- cable colour: black
- outer jacket: PVC
- inner conductor: stranded copper wire, 7 x 0.91 mm (AWG 10/7)
- insulation: foam-PE, gas injected, Ø 7.2 mm
- shielding: Cu PET foil + copper braid (82% coverage)
- connector 1: BNC, male, silver-plated
- connector 2: BNC, male, silver-plated
- min. bend radius: installed 5x, mobile 10x total diameter
- temperature range: -30°C to +70°C
- fire class: IEC 60332-1-2 flame retardant, CPR Eca
- characteristic impedance: 50 Ω
- velocity of propagation: 85%
- DC resistance outer conductor: 6,8 Ω/km
- screening attenuation @ 1 GHz: > 90 dB
- nom. attenuation [dB/100m]: 10 MHz 1,8 | 100 MHz 4,8 | 400 MHz 9,7 | 500 MHz 11,0 | 600 MHz 12,1 | 1000 MHz 16,1 | 2000 MHz 24,2 | 3000 MHz 31,2
- overall diameter: 10,3 mm
Product information
Product no: 9000-0143-0688
General
The Klotz C-27X1D-010.0 is a high-quality 10-metre 50 Ohm coaxial cable with plug-plug BNC connectors from Damar & Hagen. With its extra flexible stranded inner conductor and low-loss foam-PE insulation material, it is perfect for long-distance connections between receivers and antennas in wireless microphone systems. The double shielding of copper foil and copper wire provides excellent protection against electromagnetic interference, while the cable retains its flexibility despite the large diameter of the inner conductor.
Service promise
Bax Music Warranty This product comes with a lifetime manufacturing defects warranty.
This product comes with a lifetime manufacturing defects warranty.
