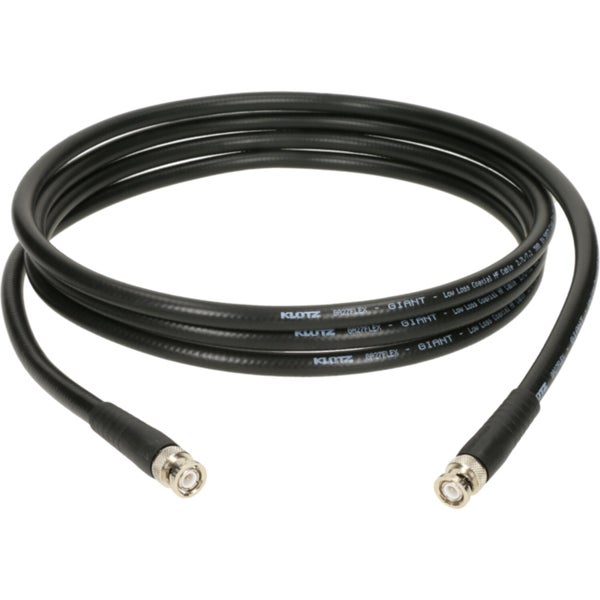

Klotz C-27X1D-035.0 high-end 50 Ohm coax cable with BNC 35 metres

no reviews yet
Bargain Buy
Klotz C-27X1D-035.0 high-end 50 Ohm coax cable with BNC 35 metres

Specifications

Product features

Sustainable product
Not specified
Length
35.00 m

Weight and dimensions including packaging

Weight
4,9 kg
Dimensions
58,0 x 20,0 x 8,0 cm

Product specifications

  • cable type: 50 ohm - coax cable - giant
  • cable type: GA27FLEX
  • cable color: black
  • length: 35 m
  • outer jacket: PVC
  • connector 1: BNC, male
  • contact 1: silver-plated
  • connector 2: BNC, male
  • contact 2: silver-plated
  • manufacturer BNC: Damar & Hagen
  • inner conductor: bare stranded copper wire, 7 x 0.91 mm (AWG 10/7)
  • insulation: foam-skin PE, gas injected, Ø 7.2 mm
  • shielding: Cu PET foil and bare copper braid (coverage 82%)
  • overall diameter: 10.3 mm
  • characteristic impedance: 50 Ω
  • velocity of propagation: 85 %
  • DC resistance outer conductor: 6.8 Ω/km
  • screening attenuation @ 1 GHz: > 90 dB
  • nominal attenuation [dB/100m]: 10 MHz 1.8, 100 MHz 4.8, 400 MHz 9.7, 500 MHz 11.0, 600 MHz 12.1, 1000 MHz 16.1, 2000 MHz 24.2, 3000 MHz 31.2
  • min. bending radius installed: 5x overall diameter
  • min. bending radius mobile use: 10x overall diameter
  • temperature range installed/mobile: -30°C / +70°C
  • flame retardancy: flame retardant acc. to IEC 60332-1-2
  • weight: 0.14 kg/m
  • CPR class: Eca acc. to EN50575

Choose your variant – Length: 35.00 m

Klotz C-27X1D-035.0 high-end 50 Ohm coax cable with BNC 35 metres Klotz C-27X1D-000.5 Professional coaxial cable 50 Ohm 0.5 metres Klotz C-27X1D-001.0 Coaxial cable with BNC connectors 1 metre Klotz C-27X1D-002.0 RF coaxial cable with BNC connectors 2 metres Klotz C-27X1D-003.0 Professional 50 Ohm coaxial cable 3 metres
Recommended price £275 -33%
£184 incl. 20% VAT
Online stock status: Order now and receive delivery within approx. 3 to 4 weeks
Wishlist
Klotz C-27X1D-035.0 high-end 50 Ohm coax cable with BNC 35 metres Innox Snap 27 Fabric Cable Ties (Pack of 10)

Klotz C-27X1D-035.0 + Innox Snap 27

Recommended price
£188.73
Now as combination for
£188.00
You save
£0.73
Order now and receive delivery within approx. 3 to 4 weeks
Klotz C-27X1D-035.0 high-end 50 Ohm coax cable with BNC 35 metres Innox T-tie Cable Tie, 8cm (Pack of 50)

Klotz C-27X1D-035.0 + Innox T-tie

Recommended price
£190.45
Now as combination for
£190.00
You save
£0.45
Order now and receive delivery within approx. 3 to 4 weeks

Ordered before 10pm: Delivered in 2 Working Days (if in stock)

Free delivery from £50

Lowest Price Guarantee

Free Returns

3-Year Warranty

30-Day Trial Period

Specifications

Product features

Sustainable product
Not specified
Length
35.00 m

Weight and dimensions including packaging

Weight
4,9 kg
Dimensions
58,0 x 20,0 x 8,0 cm

Product specifications

  • cable type: 50 ohm - coax cable - giant
  • cable type: GA27FLEX
  • cable color: black
  • length: 35 m
  • outer jacket: PVC
  • connector 1: BNC, male
  • contact 1: silver-plated
  • connector 2: BNC, male
  • contact 2: silver-plated
  • manufacturer BNC: Damar & Hagen
  • inner conductor: bare stranded copper wire, 7 x 0.91 mm (AWG 10/7)
  • insulation: foam-skin PE, gas injected, Ø 7.2 mm
  • shielding: Cu PET foil and bare copper braid (coverage 82%)
  • overall diameter: 10.3 mm
  • characteristic impedance: 50 Ω
  • velocity of propagation: 85 %
  • DC resistance outer conductor: 6.8 Ω/km
  • screening attenuation @ 1 GHz: > 90 dB
  • nominal attenuation [dB/100m]: 10 MHz 1.8, 100 MHz 4.8, 400 MHz 9.7, 500 MHz 11.0, 600 MHz 12.1, 1000 MHz 16.1, 2000 MHz 24.2, 3000 MHz 31.2
  • min. bending radius installed: 5x overall diameter
  • min. bending radius mobile use: 10x overall diameter
  • temperature range installed/mobile: -30°C / +70°C
  • flame retardancy: flame retardant acc. to IEC 60332-1-2
  • weight: 0.14 kg/m
  • CPR class: Eca acc. to EN50575
bax-shop.uk | B-stock

Product information

Product no: 9000-0143-0695

General

The Klotz C-27X1D-035.0 is a 35-metre-long professional 50 Ohm coaxial cable fitted with high-quality BNC plugs from Damar & Hagen. Thanks to double shielding and gas-injected foam-PE inner insulation, the cable offers extremely low signal losses and excellent protection against electromagnetic interference. Its flexible stranded copper design makes it easy to lay, even at longer distances between antenna and receiver. Perfect for theatre and stage applications where reliability and signal quality are crucial.
