Fazley FST-DIY 3-Color Sunburst Electric Guitar Kit

Fazley FST-DIY 3-Color Sunburst Electric Guitar Kit
Product no: 9000-0064-5036 Bax Music Warranty: This product comes with a 3-year warranty.

General

This complete pack gives you everything you need to build your very own ST-style electric guitar with your very own mortal hands. The Fazley FST-DIY kit comes with a solid paulownia ST body that's been pre-routed and prepped for neatly mounting and wiring up the included pickups, pots, selector switch, and pickguard, while the hard maple neck comes topped with a classic headstock with pre-drilled ferule holes for mounting the included set of chrome-plated machine heads. To finish, the body has already been given a three-colour sunburst paint-job for a vintage-vibe.

Tips or comments about this product

Please note: This self-build guitar pack does not come including an assembly manual or the tools required for assembly.

Specifications

Product features

Sustainable product	not specified
Kit type	complete kit
Guitar type	electric

Weight and dimensions including packaging

Weight (incl. packaging)	3,3 kg
Dimensions (incl. packaging)	73,5 x 50,0 x 8,0 cm

Product specifications

Fazley DIY guitar kit
- model: FST-DIY
- series: Fazley DIY
- colour: 3-Colour Sunburst
body
- material: paulownia
neck
- joint: bolt-on
- material: hard maple
- profile: C
- mensuur: 25.5" (648mm)
- fretboard: poplar
- number of frets: 21
- position markers: dots
hardware
- bridge: vintage-style tremolo
- hardware finish: chrome-plated
- machine heads: sealed
- pickguard: 3-ply white
electronics
- pickups: 3x ceramic single-coil

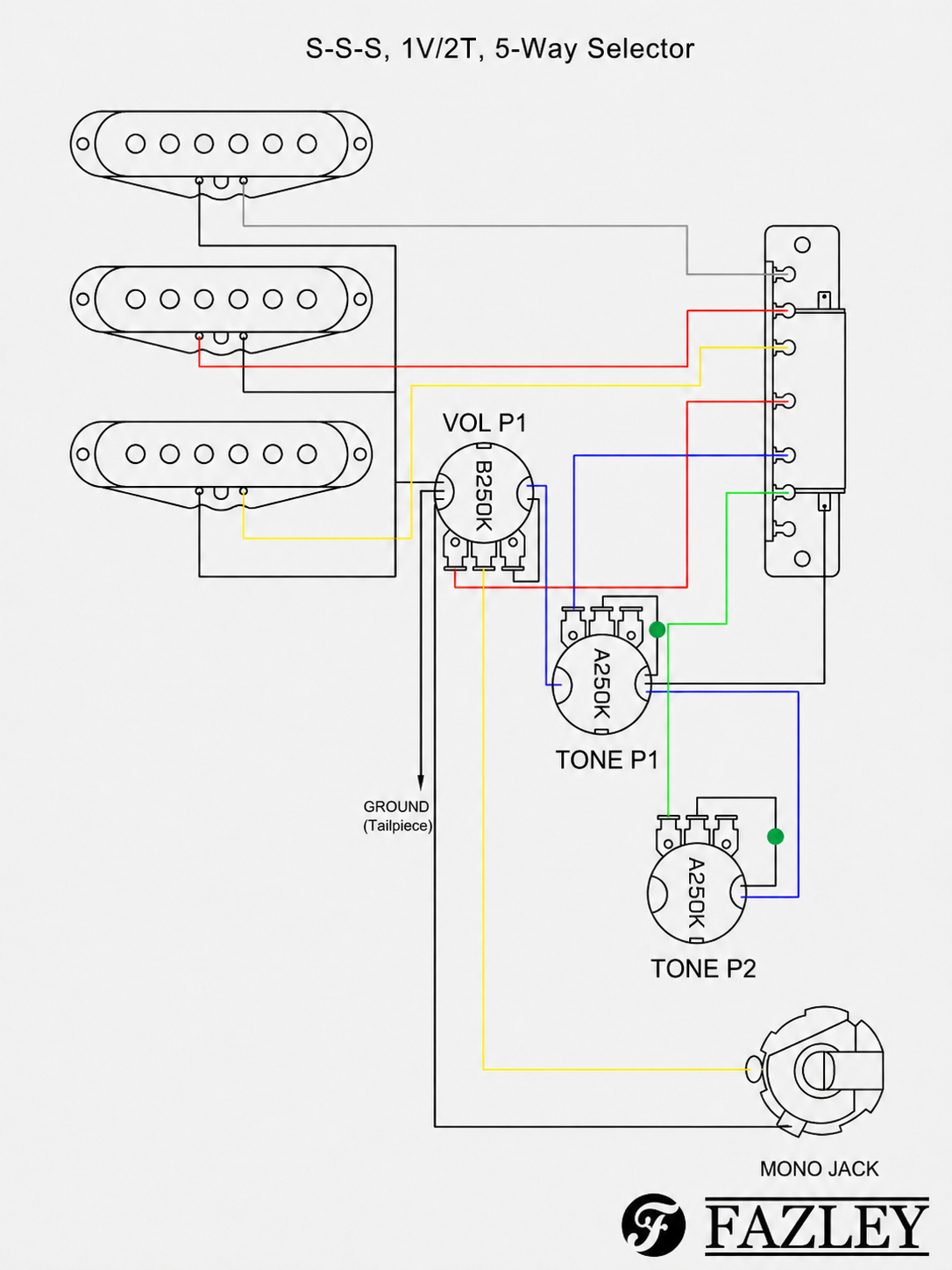

- controls: 1x volume, 2x tone, 5-way pickup switch

Write a review

Reviews from other countries

Translate all reviews into English View original reviews

Hubert JEAN June 2, 2026

Wrote the following about Fazley FST-DIY 3-Color Sunburst Electric Guitar Kit

Je possède une Gibson et une Fender Statocaster originale, je me suis amusé en voyant cette annonce à commander cette guitare sans trop y croire et j'ai été très agréablement surpris à tel point que je l'utilise beaucoup, car après l'avoir montée, je m'y suis attaché.

Tom B. April 8, 2026

Wrote the following about Fazley FST-DIY 3-Color Sunburst Electric Guitar Kit

I'm a drummer, but wanted to get a cheap guitar for strumming and to learn some chords. Bax have these occasionally on offer so I picked one up for a good price (it was cheaper than a used ones!).

Build was easy following instructions easily found online - it took me a couple of hours. If you can build flatpack furniture you should be fine with this. You'll need basic tools (screwdrivers, spanners, pliers etc). Some tips - the screws look to be JIS rather than Phillips, so order a set of JIS screwdrivers if you haven't got any otherwise you'll mangle the heads (and they'll look ugly). You'll also need a soldering iron for soldering the ground wire and jack socket. Another tip - the black wire needs to be soldered to the jack socket earth/ring connection otherwise you'll get a bad buzzing sound.

Setting up was easy again following various YouTube videos (but use a decent set of Allen keys - not the provided ones - for doing the string height and truss rod). It seems to stay in tune too with the provided strings (but I've got a better set to install sometime - did the first stringing with the provided ones in case I messed up).

Overall, for the price I paid, I'm very happy with it.

Francois March 5, 2025

Wrote the following about Fazley FST-DIY 3-Color Sunburst Electric Guitar Kit

Facile à monter et à régler avec un peu d'expérience, mais changer les cordes fournies avec le kit.
