Allen & Heath SQ5 Digital Mixer with Dust Cover and Tablet Holder

4 / 5
Bargain Buy
Allen & Heath SQ5 Digital Mixer with Dust Cover and Tablet Holder

Specifications

Allen & Heath SQ5 Digital Mixer
1x Allen & Heath SQ5 Digital Mixer
For the most demanding audio applications, Allen & Heath offer the SQ-5 digital mixer with tools such as the revolutionary XCVI 96kHz FPGA engine and more for the ultimate live audio experience.

Product features

Sustainable product
Not specified
Number of channels
129 - 256
Number of analogue input channels
17 - 24
Number of analogue output channels
9 - 16
Network connections
DSnake
Digital audio inputs
None
Digital audio outputs
1 x AES/EBU (XLR)
Number of microphone inputs
13 - 16
Digital snake
Yes, available separately
Input
Jack (6.3 mm stereo), Ethernet (RJ45), XLR, XLR AES/EBU
Output connector
Jack (6.3 mm), XLR (3-pin)
Inputs
No
Equalizer
8-band parametric, 15-band, Master EQ
Dynamics
Compressor, expander, gate
Input level meters
Via built-in display, via iPad / iPhone / iPod, via Android Device, via PC/Mac
Type of display
Touch screen, colour
Volume control
Knobs, faders, faders + knobs, motorised faders, via PC / Mac, via iPad / iPhone / iPod, via Android, via touchscreen
Expansion possibilities
DANTE expansion card, expansion card for digitale snake, digitale snake
Built-in audio interface
USB (multi track), sold separately (via expansion card)
Built-in audio player
USB
Remote control
Via iPad, via iPhone, via Android device, via Ethernet
19 inches
19-inch rack mount (not included)
Connector position
Back
Mixer power
Power cable
Built-in effects
Yes

Weight and dimensions including packaging

Weight
14,1 kg
Dimensions
70,5 x 61,0 x 36,5 cm

Product specifications

  • Allen & Heath SQ-5 digital mixer
  • 96x fader strips (16+1 faders, 6 layers)
  • 16x local mic/line inputs
  • 3x local stereo line inputs
  • 12x XLR + 2x TRS outputs
  • 8x assignable SoftKeys
  • can be mounted in a 19-inch rack (mounting kit not included)
  • 48x input channels with preamp, HPF, PEQ, gate, comp, delay
  • 32x output channels (LR, 12 mono/stereo Mix, 3 Stereo Matrix)
  • 8x stereo FX with dedicated return channels
  • 8x Mute groups, 8 DCA groups
  • Source patching (Local, Slink remote, Option card, USB)
  • output socket & Insert I/O patching
  • multi-channel USB streaming, direct to USB recording
  • talkback mic input, dual foot switch control, wireless control
  • dimensions: 440 x 514.9 x 19.8 mm
  • weight: 10.5 kg

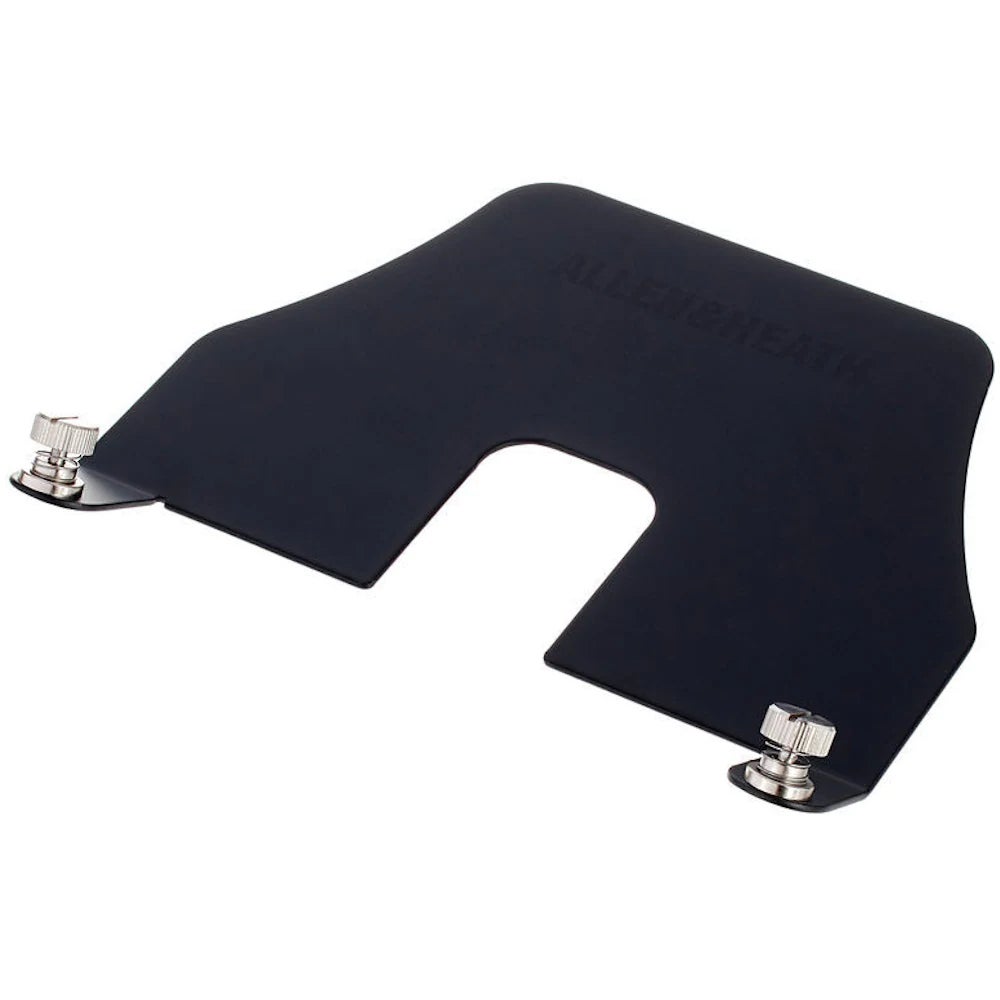

Allen & Heath SQ-BRACKET Tablet/Notebook Rest for SQ Mixers
1x Allen & Heath SQ-BRACKET Tablet/Notebook Rest for SQ Mixers
Simply screw it onto the back of your SQ mixer, and the Allen & Heath SQ-BRACKET serves as a secure music rest for propping up a tablet so you can keep your iOS or Android device within easy reach.

Product features

Sustainable product
Not specified
Part type
Other

Weight and dimensions including packaging

Weight
3,1 kg
Dimensions
22,5 x 21,0 x 5,0 cm

Product specifications

  • Allen & Heath SQ-BRACKET
  • iOS/Android tablet holder
  • material: metal
  • colour: black
Allen & Heath AP11332 Soft Case for SQ-5
1x Allen & Heath AP11332 Soft Case for SQ-5
The Allen & Heath AP11332 is the optional dust cover for the SQ-5. Use it to protect your mixer from dirt and dust and make it last longer. This is a water-repellent protective cover!

Product features

Sustainable product
Not specified
Protection type
Cover

Weight and dimensions including packaging

Weight
75 gr
Dimensions
22,0 x 7,0 x 2,0 cm

Product specifications

  • Allen & Heath AP11332
  • optional dust cover for the SQ-5
  • water-repellent polyester

Choose your variant – Input: jack (6.3 mm), Ethernet (RJ45), XLR, XLR AES/EBU

Allen & Heath SQ5 Digital Mixer with Dust Cover and Tablet Holder Allen & Heath SQ5 Digital Mixer Allen & Heath SQ6 Digital Mixer Allen & Heath SQ-7 Digital Mixer Allen & Heath SQ5 with Dust Cover, Tablet Holder and M-SQ-Dante Expansion Card
Recommended price £2,338 -2%
£2,280 incl. 20% VAT
Online stock status: Order now and receive delivery within approx. 5 weeks
Wishlist

Ordered before 10pm: Delivered in 2 Working Days (if in stock)

Free delivery from £50

Lowest Price Guarantee

Free Returns

3-Year Warranty

30-Day Trial Period

bax-shop.uk | B-stock

Product information

Product no: 9000-0066-7183

General

For the most demanding audio applications and for professional sound engineers, there is the SQ5 digital mixer from Allen & Heath! With the revolutionary XCVI 96kHz FPGA engine, extra-low latency, 16 onboard preamps, 8 stereo FX engines, 12 stereo mixes and much more, you have all the tools you need to create the ultimate live audio experience. These mixes feature both parametric and graphic EQ, which is ideal for in-ear monitoring setups. The SQ-5 is compatible with all leading audio networking standards, so you can think of the mixer as the beating heart of apps, expanders, audio networks, personal mixers and more. The integrated SQ-Drive allows you to instantly create a 96 kHz multitrack or stereo recording of your show.

Allen & Heath SQ5: "The Sound of Speed"

The Allen & Heath SQ-5 is designed to withstand the violence of a live environment. All functionality is packed into an all-metal chassis. The design is sturdy, functional, and also looks professional and impressive. The SQ's dashboard features a 7-inch touchscreen surrounded by sturdy, luminous (rotary) buttons that provide instant visual feedback. On the screen, it is possible to 'drag' and 'drop' channels and mixes to any strip. You can manually set the name and colour code of this strip to optimise your workflow. For FX, the SQ features 8 stereo FX engines and the RackExtra library, which consists of a large number of emulations of reverbs, delays, modulators, and much more!

With this package, you also receive the original Allen & Heath dust cover for the SQ5 and the iPad / notebook holder.

Allen & Heath SQ5 Digital Mixer This product comes with a 3-year warranty.

Allen & Heath SQ-BRACKET Tablet/Notebook Rest for SQ Mixers This product comes with a 3-year warranty.

Allen & Heath AP11332 Soft Case for SQ-5 This product comes with a manufacturing defects warranty.

Reviews (2)

4.0
2 reviews

Rating

5 stars 0 4 stars 2 3 stars 0 2 stars 0 1 star 0

Reviews from other countries

4 / 5

Allen & Heath SQ5 Digital Mixer

Une excellente console avec un encombrement réduit et des possibilités digne d'une grande !

Le support A&H est vraiment a l'écoute des utilisateurs via le forum et c'est réellement agréable !

Livraison rapide (6 jours, commandé pendant le déconfinement avec Jours ferié par La Poste)

J'enlève une étoile car j'ai reçu la console directement dans son emballage sans rien pour cacher le contenu du colis ! Il était clairement marqué dessus que c'était la console et j'aurais apprécié une plus grande discretion !
 |
This review was automatically translated from French.
4 / 5

Allen & Heath SQ5 Digital Mixer

Erg blij met deze nieuwe mengtafel. Nog geen evenement mee gedraaid maar met een paar goede speakers in de studio en mijn Sennheiser e965 klinkt het in elk geval veelbelovend.
Veel configuratiemogelijkheden qua routing. Kan er ook binnen een paar uur redelijk snel op werken en alles vinden wat ik nodig heb.
Dingen om te overwegen bij aanschaf:
- (op dit moment nog) geen expander-mode in de gate.
- geen EQ en highpass op de FX send.
- ipad app werkt alleen op iOS 10 en nieuwer, dus je kunt niet je oude iPad mini 1 gebruiken bijv.

Pluspunten:
32 inout op USB voor meersporenopnames.
- koptelefoonuitgang luid genoeg voor een Sennheiser HD25 op 250Ohm.
 |
This review was automatically translated from Dutch.
